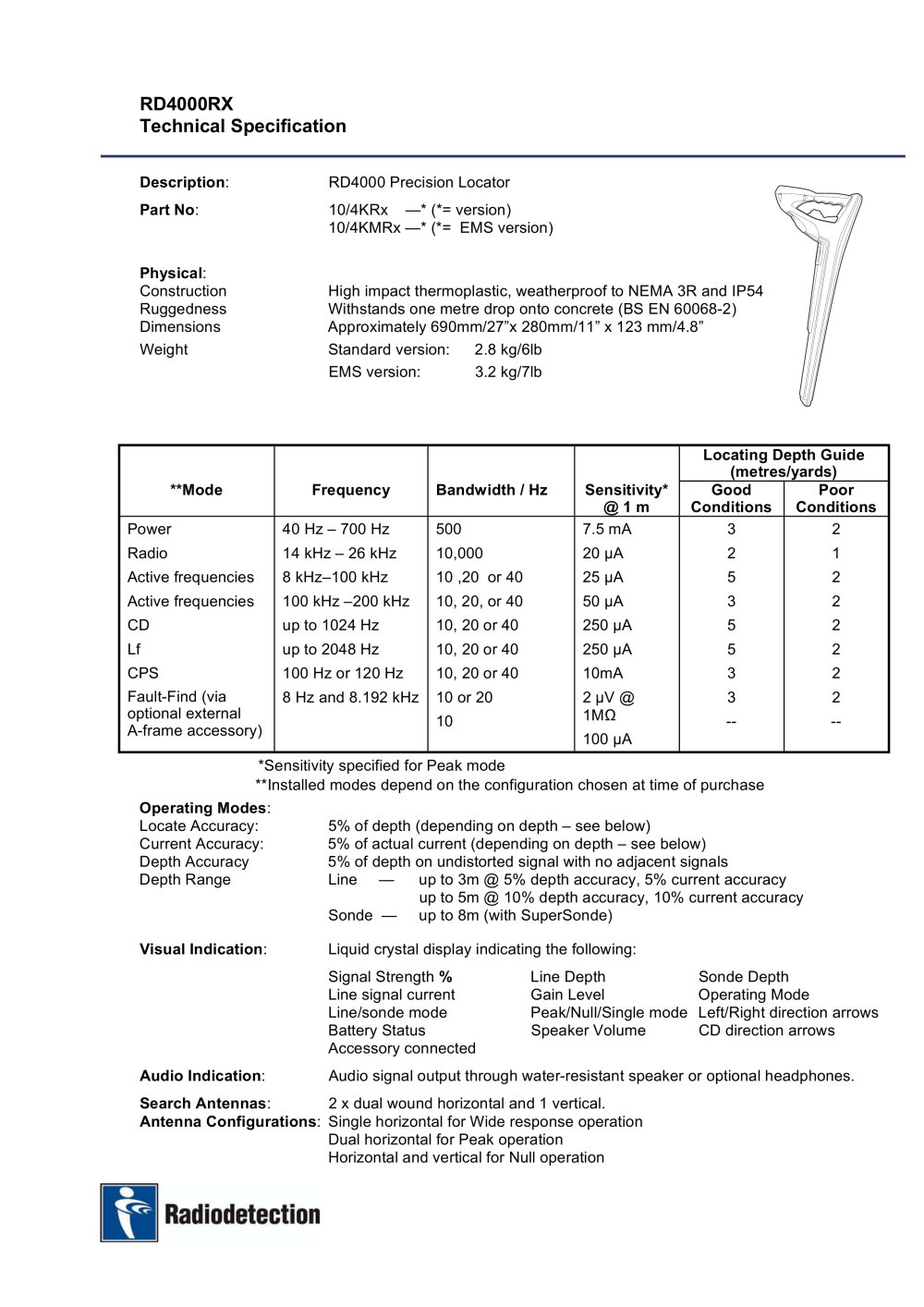

RD4000RX

Technical Specification

Descriptio Part No:

RD4000 Precision Locator

Physical:

Construction Ruggedness Dimensions

High impact thermoplastic, weatherproof to NEMA 3R and IP54 Withstands one metre drop onto concrete (BS EN 60068-2) Approximately 690mm/27"x280mm/11" x 123 mm/4.8" Standard version: 2.8 kg/6lb EMS version: 3.2 kg/7lb


				Locating Depth Guide (metres/yards)
**Mode	Frequency	Bandwidth / Hz	Sensitivity*	Good Conditions	Poor Conditions
Power	40 Hz - 700 Hz	500	7.5 mA	3	2
Radio	14 kHz-26 kHz	10,000	20 uA	2	1
Active frequencies	8kHz-100 kHz	10 ,20 or 40	25 uA	5	2
Active frequencies	100 kHz-200 kHz	10, 20, or 40	50 uA	3	2
CD	up to 1024 Hz	10, 20 or 40	250 uA	5	2
Lf	up to 2048 Hz	10, 20 or 40	250 uA	5	2
CPS	100 Hz or 120 Hz	10, 20 or 40	10mA	3	2
Fault-Find (via optional external A-frame accessory]	8 Hz and 8.192 kHz	10 or 20 10	2uV@ IMO 100 uA	3	2

'Sensitivity specified for Peak mode

"Installed modes depend on the configuration chosen at time of purchase Operating Modes:

Locate Accuracy: 5% of depth (depending on depth - see below)

Current Accuracy: 5% of actual current (depending on depth - see below)

Depth Accuracy 5% of depth on undistorted signal with no adjacent signals

Depth Range Line — up to 3m @ 5% depth accuracy, 5% current accuracy

up to 5m @ 10% depth accuracy, 10% current accuracy Sonde — up to 8m (with SuperSonde)

Visual Indicatio

Liquid crystal display indicating the following:

Signal £

Line signal current Line/sonde mode Battery Status

Line Depth Sonde Depth

Gain Level Operating Mode

Peak/Null/Single mode Left/Right direction an

Speaker Volume CD direction arrows

Accessory connected Audio signal output through water-resistant speaker or optional headphor

2 x dual wound horizontal and 1 vertical. Single horizontal for Wide response operation Dual horizontal for Peak operation Horizontal and vertical for Null operation

Audio Indication:

Search Antennas: Antenna Configuratio
