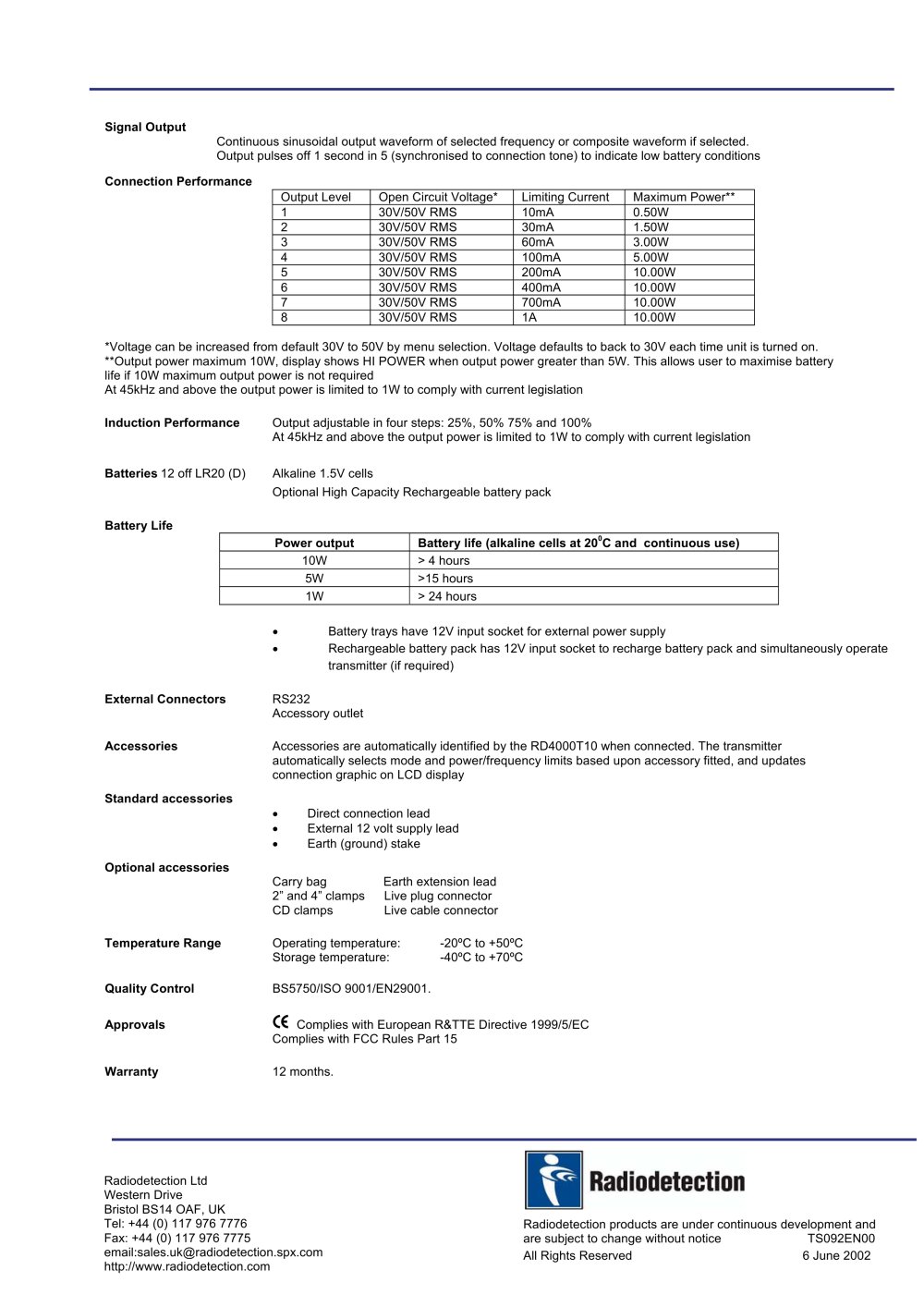

| Signal Output Continuous sinusoidal output waveform of selected frequency or composite waveform if selected. Output pulses off 1 second in 5 (synchronised to connection tone) to indicate low battery conditions Connection Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| *Voltage can be increased from default 30V to 50V by menu selection. Voltage defaults to back to 30V each time unit is turned on. **Output power maximum 10W, display shows HI POWER when output power greater than 5W. This allows user to maximise battery life if 10W maximum output power is not required At 45kHz and above the output power is limited to 1W to comply with current legislation Induction Performance Output adjustable in four steps: 25%, 50% 75% and 100% At 45kHz and above the output power is limited to 1W to comply with current legislation Batteries 12 off LR20 (D) Alkaline 1.5V cells Optional High Capacity Rechargeable battery pack Battery Life__ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| • Battery trays have 12V input socket for external power supply • Rechargeable battery pack has 12V input socket to recharge battery pack and simultaneously operate transmitter (if required) RS232 Accessory outlet Accessories are automatically identified by the RD4000T10 when connected. The transmitter automatically selects mode and power/frequency limits based upon accessory fitted, and updates connection graphic on LCD display | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| External Connectors Accessories Standard accessories Optional accessories Temperature Range Quality Control Approvals Warranty | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| • Direct connection lead • External 12 volt supply lead • Earth (ground) stake | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Carry bag Earth extension lead 2" and 4" clamps Live plug connector CD clamps Live cable connector Operating temperature: -20°C to +50°C Storage temperature: -40°C to +70°C BS5750/ISO 9001/EN29001. C€ Complies with European R&TTE Directive 1999/5/EC Complies with FCC Rules Part 15 12 months. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Radiodetection Ltd Western Drive Bristol BS14 OAF, UK Tel: +44 (0) 117 976 7776 Fax: +44 (0) 117 976 7775 email:sales.uk@radiodetection.spx.com http://www.radiodetection.com | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Radiodetection products are under continuous development and are subject to change without notice TS092EN00 All Rights Reserved 6 June 2002 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
