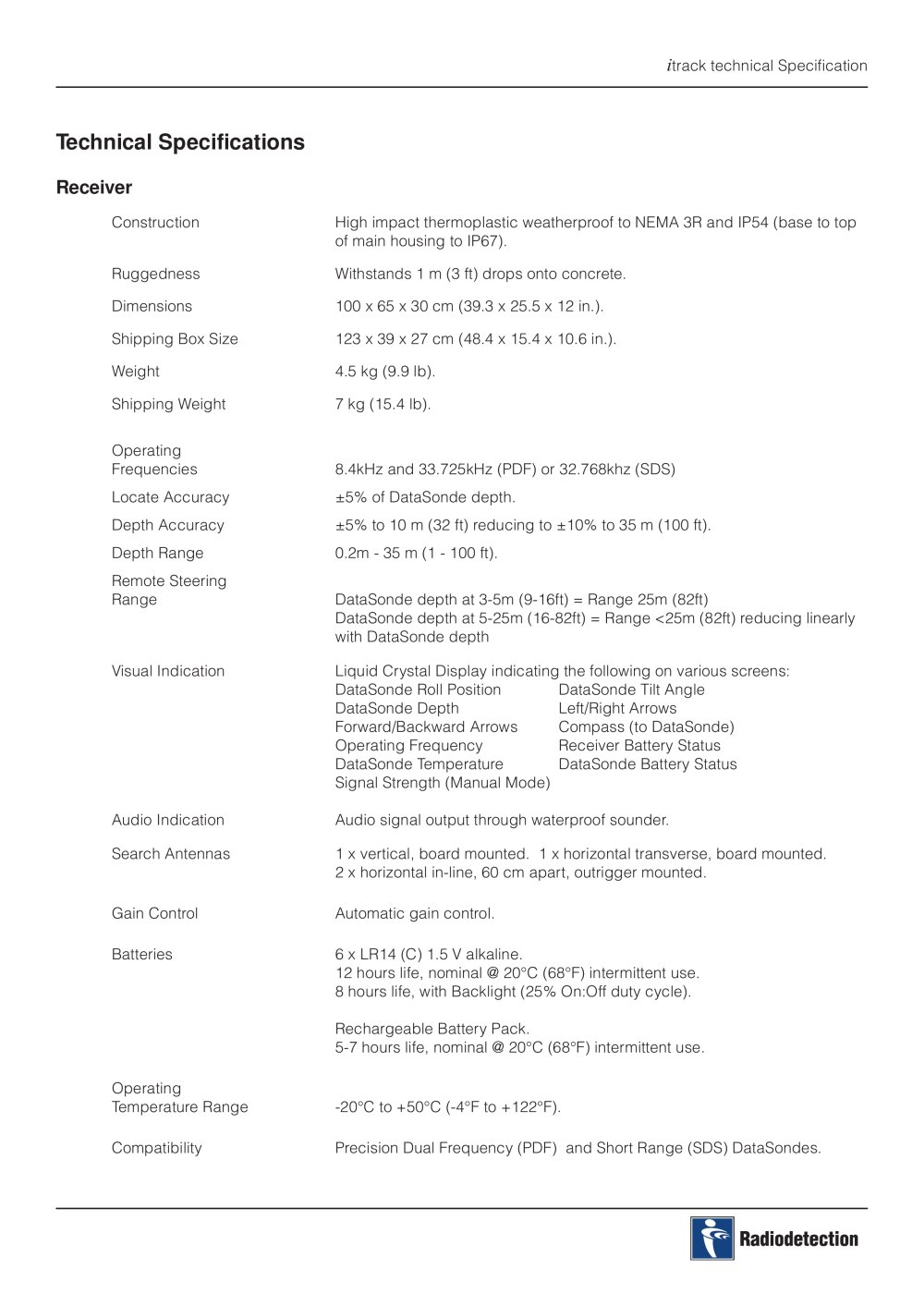

| /track technical Specification | |||||||||||||||||||||||
| Technical Specifications Receiver Construction Ruggedness Dimensions Shipping Box Size Weight Shipping Weight | |||||||||||||||||||||||
| High impact thermoplastic weatherproof to NEMA 3R and IP54 (base to top of main housing to IP67). Withstands 1 m (3 ft) drops onto concrete. 100 x 65 x 30 cm (39.3 x 25.5 x 12 in.). 123 x 39 x 27 cm (48.4 x 15.4 x 10.6 in.). 4.5 kg (9.9 lb). 7 kg (15.4 lb). | |||||||||||||||||||||||
| Operating Frequencies Locate Accuracy Depth Accuracy Depth Range Remote Steering Range | |||||||||||||||||||||||
| 8.4kHz and 33.725kHz (PDF) or 32.768khz (SDS) ±5% of DataSonde depth. ±5% to 10 m (32 ft) reducing to ±10% to 35 m (100 ft). 0.2m - 35 m (1 - 100 ft). DataSonde depth at 3-5m (9-16ft) = Range 25m (82ft) DataSonde depth at 5-25m (16-82ft) = Range <25m (82ft) reducing linearly with DataSonde depth Liquid Crystal Display indicating the following on various screens: | |||||||||||||||||||||||
| Visual Indication | |||||||||||||||||||||||
| DataSonde Tilt Angle Left/Right Arrows Compass (to DataSonde) Receiver Battery Status DataSonde Battery Status | |||||||||||||||||||||||
| DataSonde Roll Position DataSonde Depth Forward/Backward Arrows Operating Frequency DataSonde Temperature Signal Strength (Manual Mode) | |||||||||||||||||||||||
| Audio signal output through waterproof sounder. 1 x vertical, board mounted. 1 x horizontal transverse, board mounted. 2 x horizontal in-line, 60 cm apart, outrigger mounted. Automatic gain control. 6 x LR14 (C) 1.5 V alkaline. 12 hours life, nominal @ 20°C (68°F) intermittent use. 8 hours life, with Backlight (25% On:Off duty cycle). Rechargeable Battery Pack. 5-7 hours life, nominal @ 20°C (68°F) intermittent use. | |||||||||||||||||||||||
| Audio Indication Search Antennas Gain Control Batteries | |||||||||||||||||||||||
| Operating Temperature Range Compatibility | |||||||||||||||||||||||
| -20°C to +50°C (-4°F to +122°F). Precision Dual Frequency (PDF) and Short Range (SDS) DataSondes. | |||||||||||||||||||||||
| Radiodetection | |||||||||||||||||||||||
