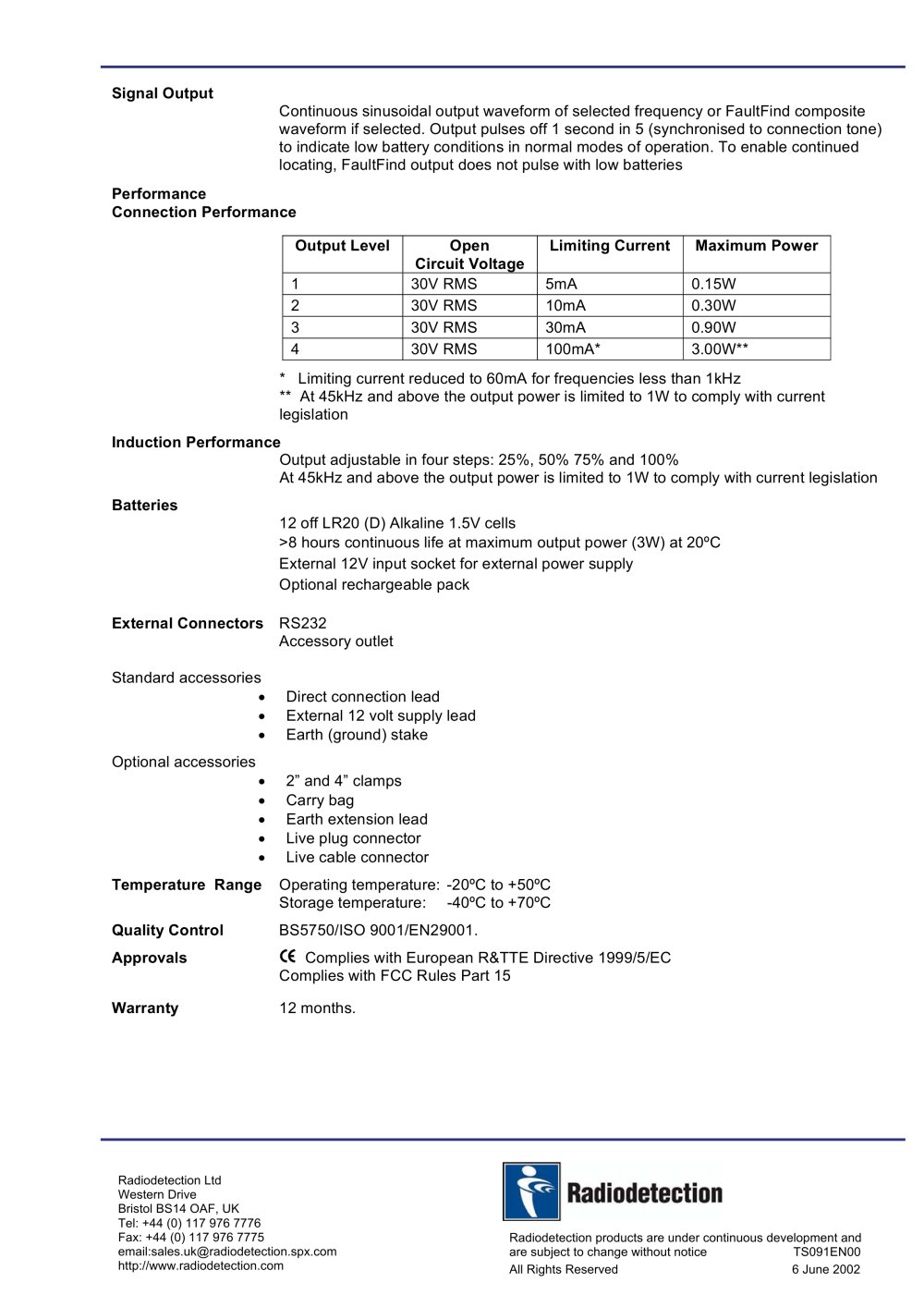

| Signal Output Continuous sinusoidal output waveform of selected frequency or FaultFind composite waveform if selected. Output pulses off 1 second in 5 (synchronised to connection tone) to indicate low battery conditions in normal modes of operation. To enable continued locating, FaultFind output does not pulse with low batteries Performance Connection Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| * Limiting current reduced to 60mA for frequencies less than 1kHz ** At 45kHz and above the output power is limited to 1W to comply with current legislation | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Induction Performance Output adjustable in four steps: 25%, 50% 75% and 100% At 45kHz and above the output power is limited to 1W to comply with current legislation 12 off LR20 (D) Alkaline 1.5V cells >8 hours continuous life at maximum output power (3W) at 20°C External 12V input socket for external power supply Optional rechargeable pack RS232 Accessory outlet | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Standard accessories Optional accessories Temperature Range Quality Control Approvals Warranty | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Direct connection lead External 12 volt supply lead Earth (ground) stake 2" and 4" clamps Carry bag Earth extension lead Live plug connector Live cable connector Operating temperature: -20°C to +50°C Storage temperature: -40°C to +70°C BS5750/ISO 9001/EN29001. C€ Complies with European R&TTE Directive 1999/5/EC Complies with FCC Rules Part 15 12 months. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Radiodetection Ltd Western Drive Bristol BS14 OAF, UK Tel: +44 (0) 117 976 7776 Fax: +44 (0) 117 976 7775 email:sales.uk@radiodetection.spx.com http://www.radiodetection.com | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Radiodetection products are under continuous development and are subject to change without notice TS091EN00 All Rights Reserved 6 June 2002 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
