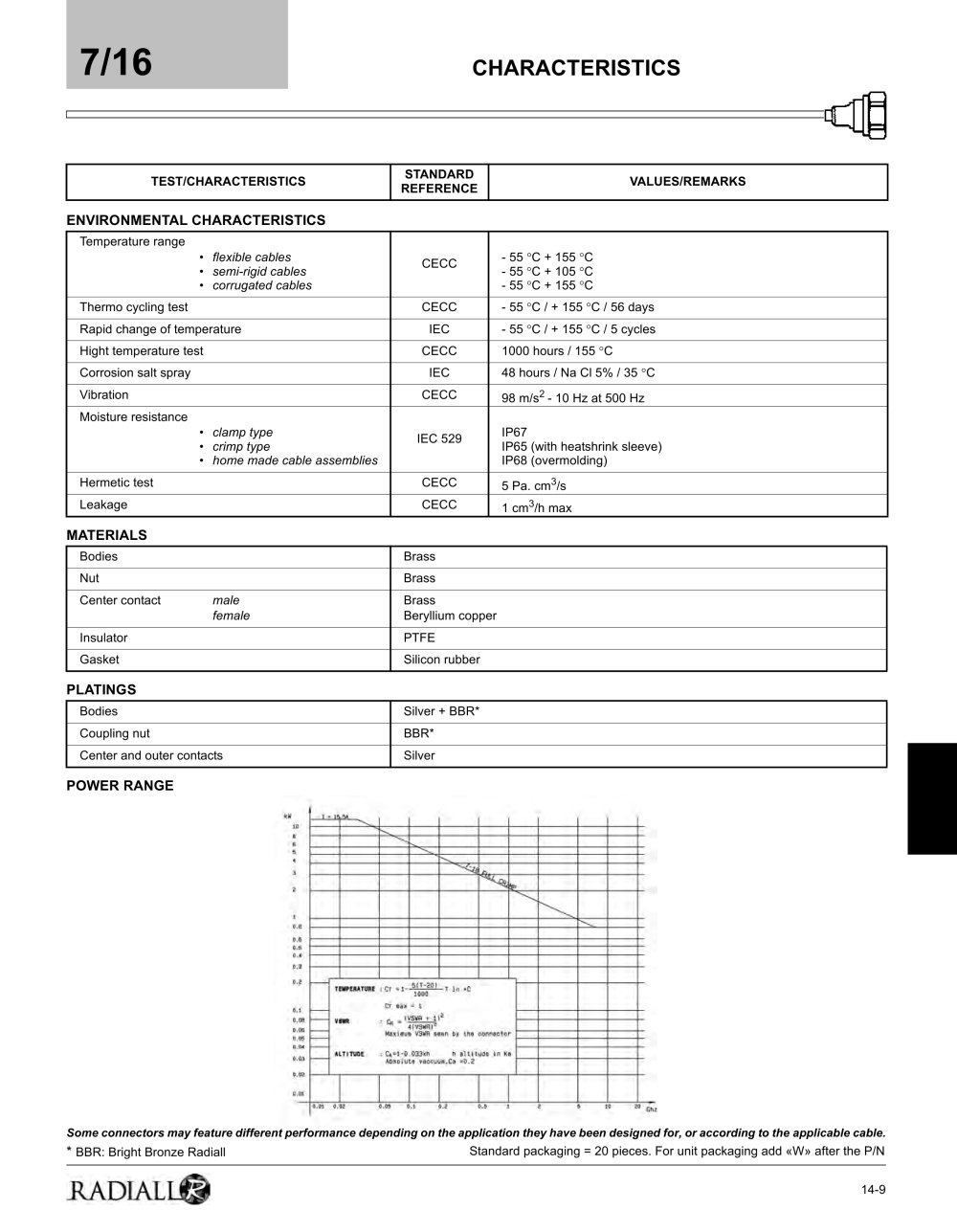

7/16 14-9 ENVIRONMENTAL CHARACTERISTICS MATERIALS PLATINGS POWER RANGE Some connectors may feature different performance depending on the application they have been designed for, or according to the applicable cable. TEST/CHARACTERISTICS STANDARD REFERENCE VALUES/REMARKS Temperature range • flexible cables • semi-rigid cables • corrugated cables CECC - 55 °C + 155 °C - 55 °C + 105 °C - 55 °C + 155 °C Thermo cycling test CECC - 55 °C / + 155 °C / 56 days Rapid change of temperature IEC - 55 °C / + 155 °C / 5 cycles Hight temperature test CECC 1000 hours / 155 °C Corrosion salt spray IEC 48 hours / Na Cl 5% / 35 °C Vibration CECC 98 m/s2 - 10 Hz at 500 Hz Moisture resistance • clamp type • crimp type • home made cable assemblies IEC 529 IP67 IP65 (with heatshrink sleeve) IP68 (overmolding) Hermetic test CECC 5 Pa. cm3/s Leakage CECC 1 cm3/h max Bodies Brass Nut Brass Center contact male female Brass Beryllium copper Insulator PTFE Gasket Silicon rubber Bodies Silver + BBR* Coupling nut BBR* Center and outer contacts Silver CHARACTERISTICS * BBR: Bright Bronze Radiall Standard packaging = 20 pieces. For unit packaging add «W» after the P/N
