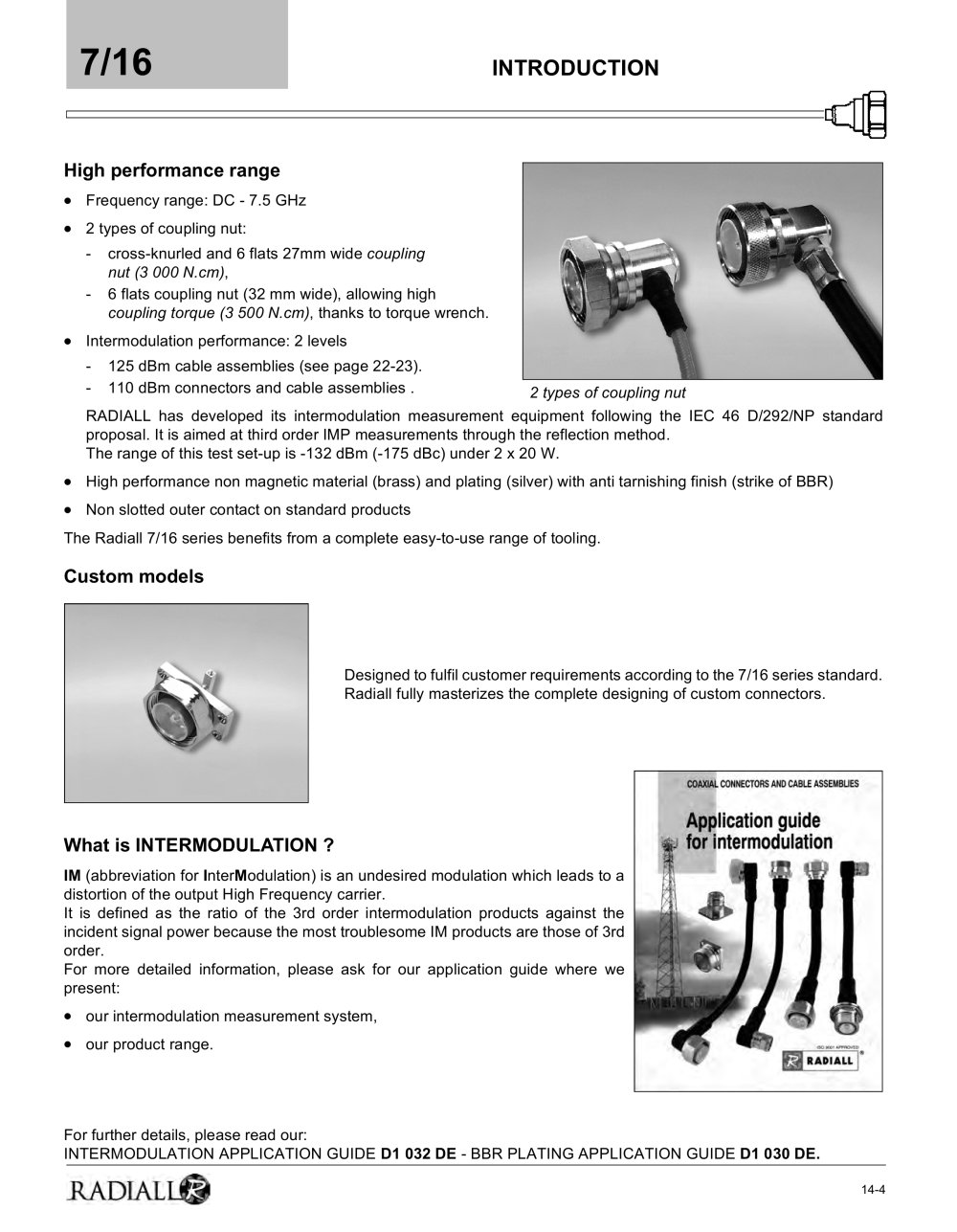

14-4 7/16 INTRODUCTION 2 types of coupling nut High performance range • Frequency range: DC - 7.5 GHz • 2 types of coupling nut: - cross-knurled and 6 flats 27mm wide coupling nut (3 000 N.cm), - 6 flats coupling nut (32 mm wide), allowing high coupling torque (3 500 N.cm), thanks to torque wrench. • Intermodulation performance: 2 levels - 125 dBm cable assemblies (see page 22-23). - 110 dBm connectors and cable assemblies . RADIALL has developed its intermodulation measurement equipment following the IEC 46 D/292/NP standard proposal. It is aimed at third order IMP measurements through the reflection method. The range of this test set-up is -132 dBm (-175 dBc) under 2 x 20 W. • High performance non magnetic material (brass) and plating (silver) with anti tarnishing finish (strike of BBR) • Non slotted outer contact on standard products The Radiall 7/16 series benefits from a complete easy-to-use range of tooling. Custom models What is INTERMODULATION ? IM (abbreviation for InterModulation) is an undesired modulation which leads to a distortion of the output High Frequency carrier. It is defined as the ratio of the 3rd order intermodulation products against the incident signal power because the most troublesome IM products are those of 3rd order. For more detailed information, please ask for our application guide where we present: • our intermodulation measurement system, • our product range. For further details, please read our: INTERMODULATION APPLICATION GUIDE D1 032 DE - BBR PLATING APPLICATION GUIDE D1 030 DE. Designed to fulfil customer requirements according to the 7/16 series standard. Radiall fully masterizes the complete designing of custom connectors.
