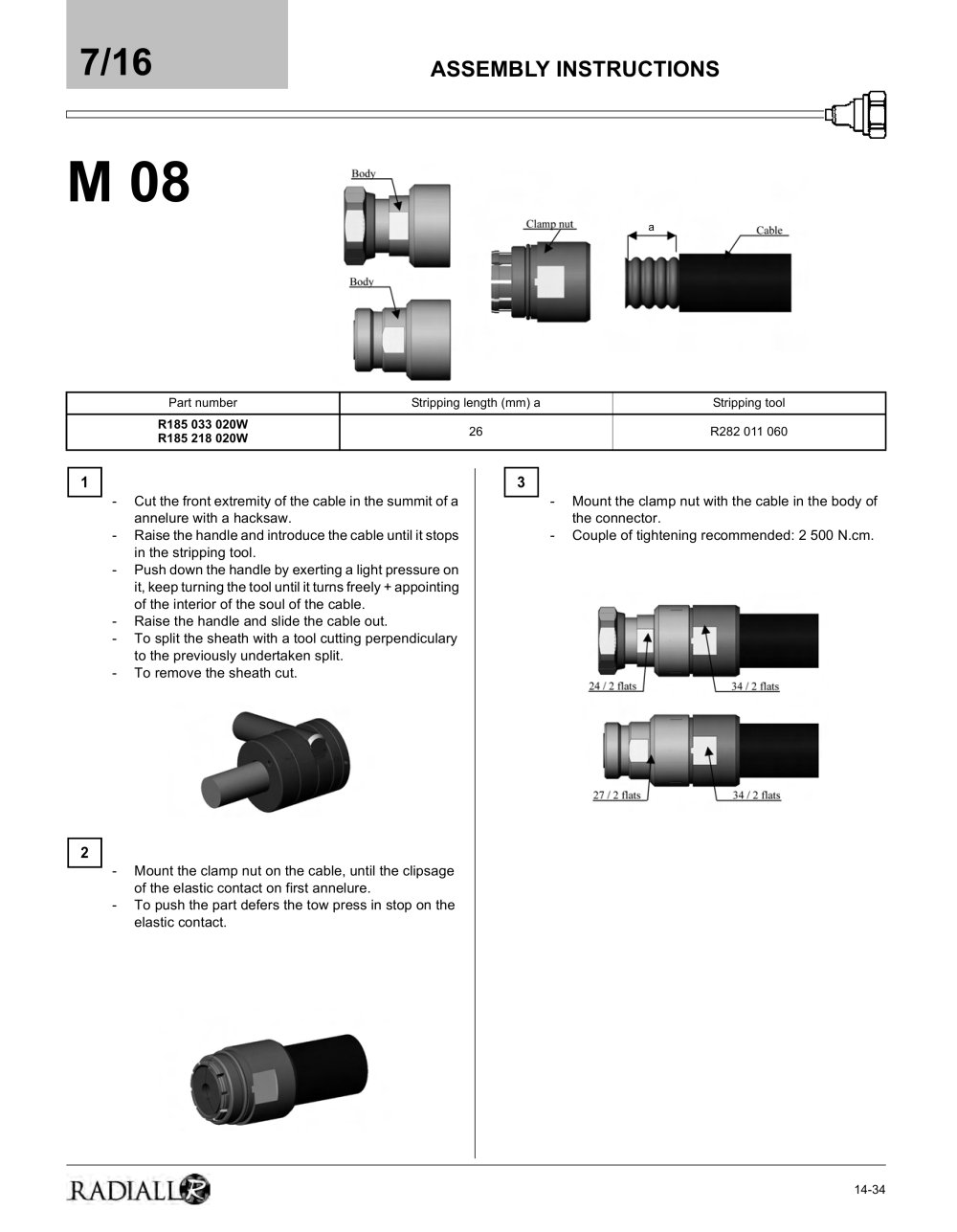

14-34
7/16
M 08
Part number Stripping length (mm) a Stripping tool
R185 033 020W
R185 218 020W 26 R282 011 060
a
- Cut the front extremity of the cable in the summit of a
annelure with a hacksaw.
- Raise the handle and introduce the cable until it stops
in the stripping tool.
- Push down the handle by exerting a light pressure on
it, keep turning the tool until it turns freely + appointing
of the interior of the soul of the cable.
- Raise the handle and slide the cable out.
- To split the sheath with a tool cutting perpendiculary
to the previously undertaken split.
- To remove the sheath cut.
1
- Mount the clamp nut with the cable in the body of
the connector.
- Couple of tightening recommended: 2 500 N.cm.
3
- Mount the clamp nut on the cable, until the clipsage
of the elastic contact on first annelure.
- To push the part defers the tow press in stop on the
elastic contact.
2
ASSEMBLY INSTRUCTIONS
