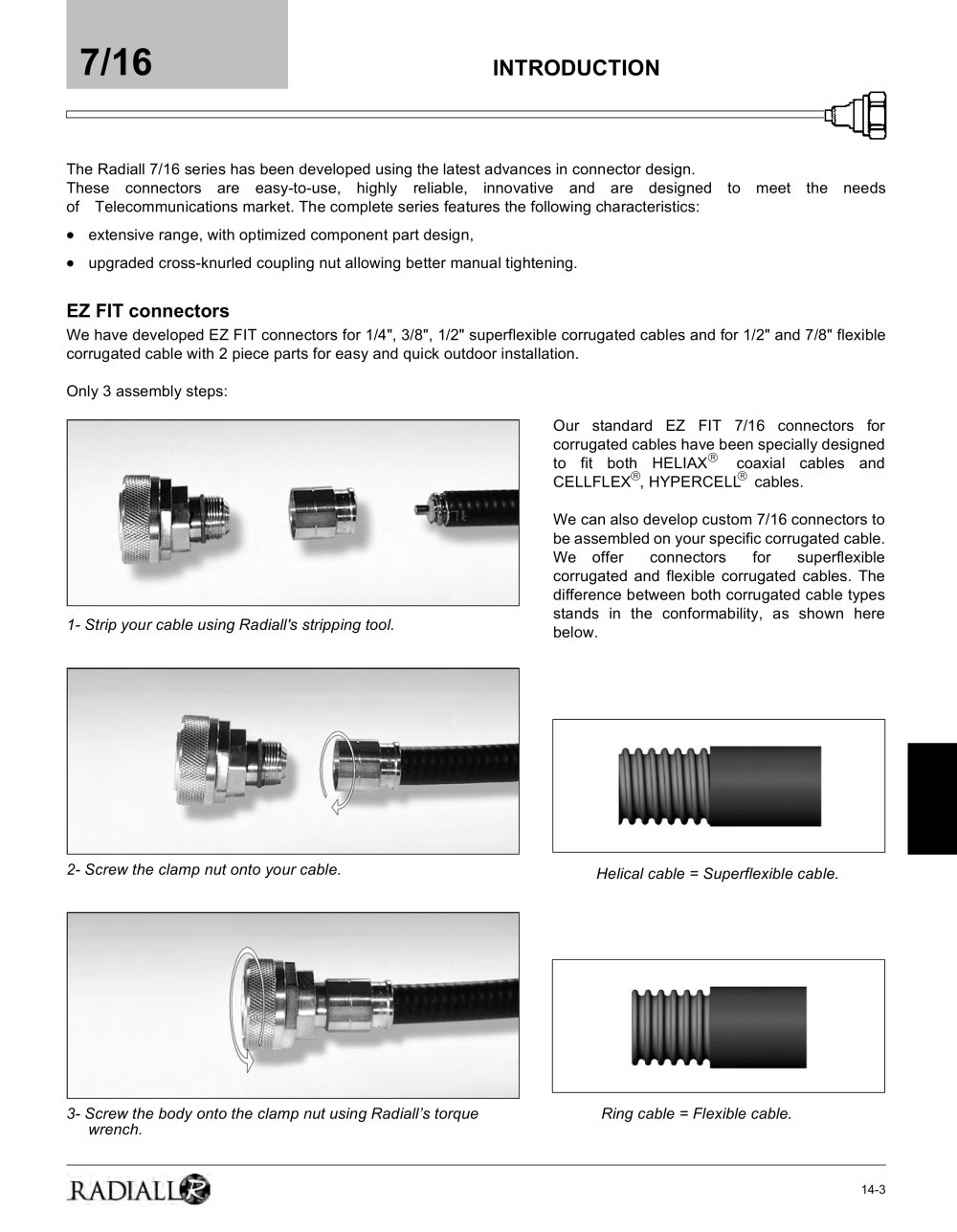

7/16 14-3 The Radiall 7/16 series has been developed using the latest advances in connector design. These connectors are easy-to-use, highly reliable, innovative and are designed to meet the needs of Telecommunications market. The complete series features the following characteristics: • extensive range, with optimized component part design, • upgraded cross-knurled coupling nut allowing better manual tightening. EZ FIT connectors We have developed EZ FIT connectors for 1/4", 3/8", 1/2" superflexible corrugated cables and for 1/2" and 7/8" flexible corrugated cable with 2 piece parts for easy and quick outdoor installation. Only 3 assembly steps: ® ® ® Our standard EZ FIT 7/16 connectors for corrugated cables have been specially designed to fit both HELIAX coaxial cables and CELLFLEX , HYPERCELL cables. We can also develop custom 7/16 connectors to be assembled on your specific corrugated cable. We offer connectors for superflexible corrugated and flexible corrugated cables. The difference between both corrugated cable types stands in the conformability, as shown here 1- Strip your cable using Radiall's stripping tool. below. 2- Screw the clamp nut onto your cable. Helical cable = Superflexible cable. INTRODUCTION 3- Screw the body onto the clamp nut using Radiall’s torque wrench. Ring cable = Flexible cable.
