7/16
14-29
M 03
Part Number Stripping tool Cassette Recommended coupling torque
R185 160 000 R282 078 000 R282 078 205 800 N.cm

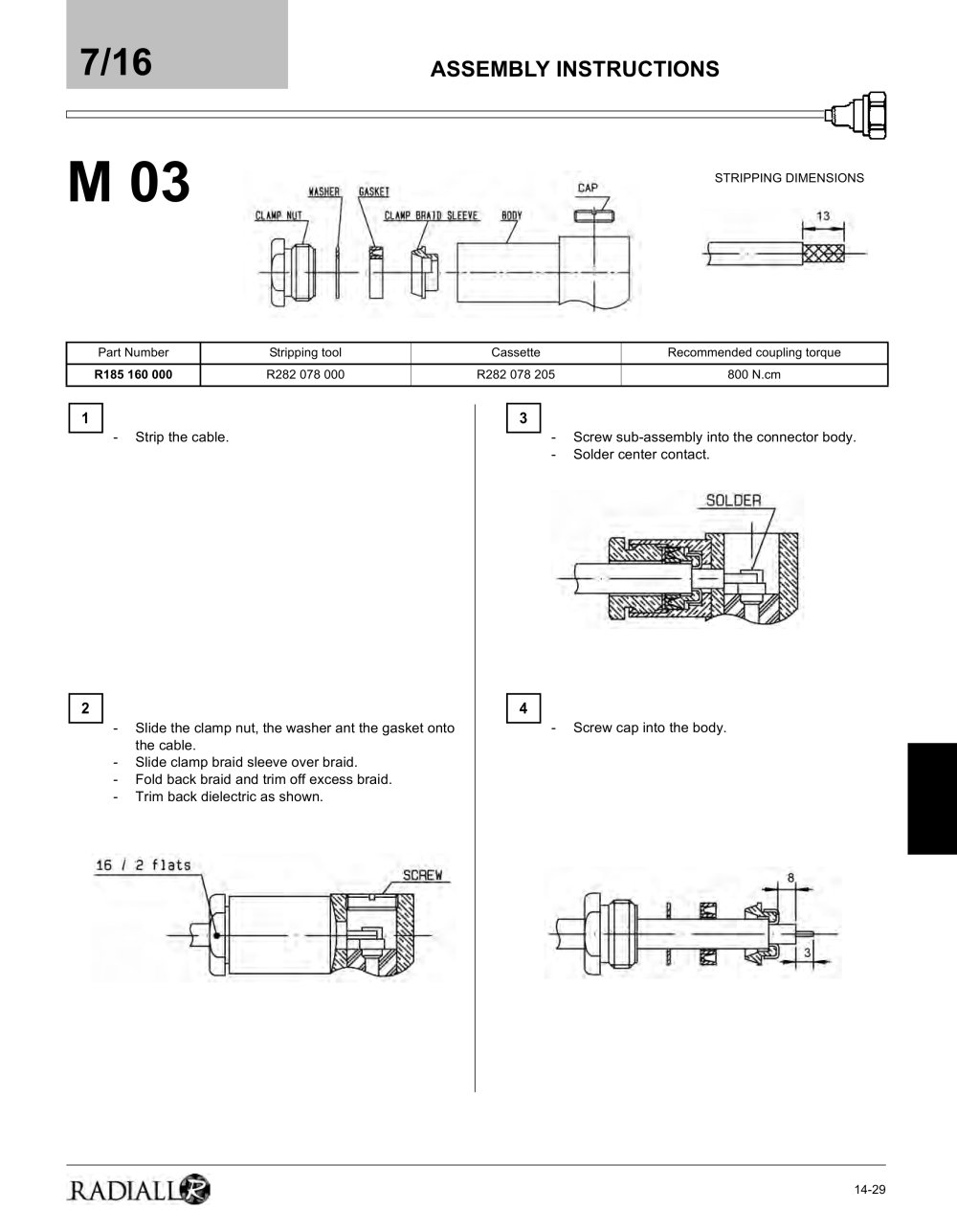

STRIPPING DIMENSIONS
2 4
- Strip the cable.
1
- Screw sub-assembly into the connector body.
- Solder center contact.
3
- Slide the clamp nut, the washer ant the gasket onto
the cable.
- Slide clamp braid sleeve over braid.
- Fold back braid and trim off excess braid.
- Trim back dielectric as shown.
- Screw cap into the body.
ASSEMBLY INSTRUCTIONS
