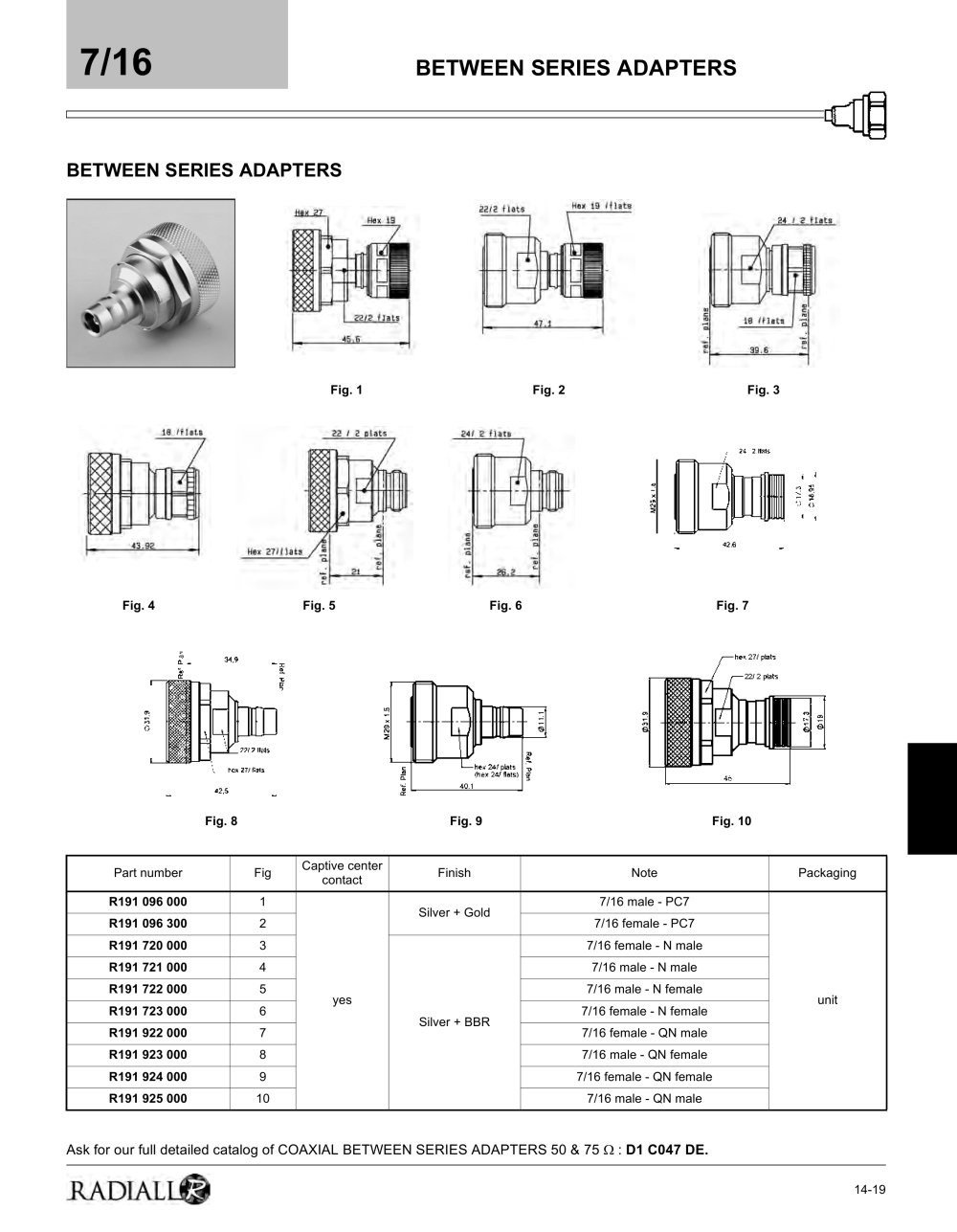

7/16 14-19 BETWEEN SERIES ADAPTERS Part number Fig Captive center contact Finish Note Packaging R191 096 000 1 yes Silver + Gold 7/16 male - PC7 unit R191 096 300 2 7/16 female - PC7 R191 720 000 3 Silver + BBR 7/16 female - N male R191 721 000 4 7/16 male - N male R191 722 000 5 7/16 male - N female R191 723 000 6 7/16 female - N female R191 922 000 7 7/16 female - QN male R191 923 000 8 7/16 male - QN female R191 924 000 9 7/16 female - QN female R191 925 000 10 7/16 male - QN male Fig. 10 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 BETWEEN SERIES ADAPTERS Ask for our full detailed catalog of COAXIAL BETWEEN SERIES ADAPTERS 50 & 75 Ù : D1 C047 DE.
