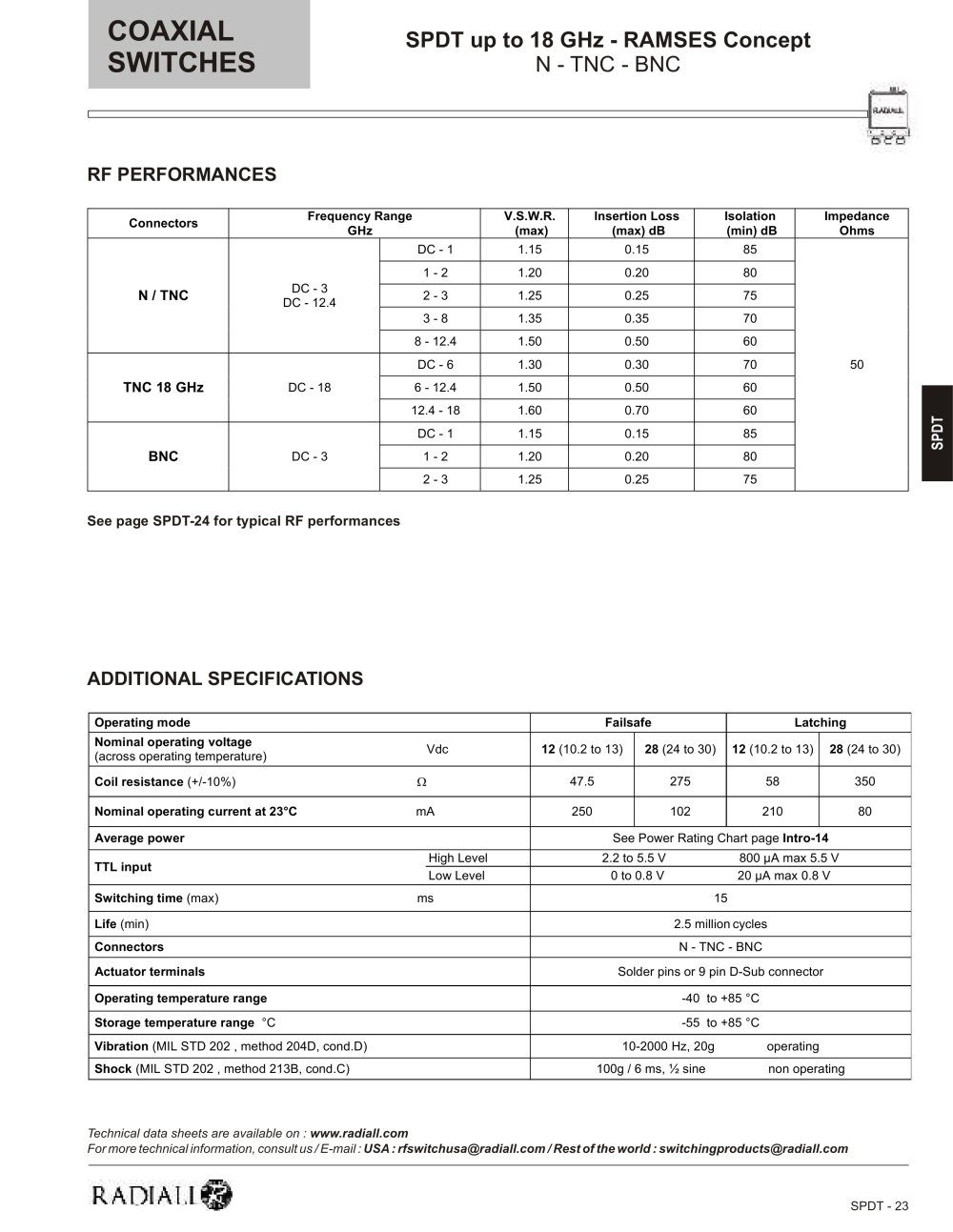

COAXIAL SWITCHES
SPDT up to 18 GHz - RAMSES Concept
N-TNC-BNC
RF PERFORMANCES
Connectors
Frequency Range GHz
V.S.W.R.
(max)
Insertion Loss (max) dB
Isolation (min) dB
Impédance Ohms
DC - 1
1.15
0.15
85
DC-3 DC- 12.4
1 -2
1.20
0.20
80
N / TNC
2-3
1.25
0.25
75
3-8
1.35
0.35
70
8-12.4
1.50
0.50
60
DC-6
1.30
0.30
70
50
TNC 18 GHz
DC- 18
6-12.4
1.50
0.50
60
12.4-18
1.60
0.70
60
DC - 1
1.15
0.15
85
BNC
DC-3
1 -2
1.20
0.20
80
2-3
1.25
0.25
75
See page SPDT-24 for typical RF performances
ADDITIONAL SPECIFICATIONS
Operating mode
Failsafe
Latching
Nominal operating voltage
(across operating température)
Vdc
12 (10.2 to13)
28 (24 to 30)
12 (10.2 to 13)
28 (24 to 30)
Coil résistance (+/-10%)
n
47.5
275
58
350
Nominal operating current at 23°C
mA
250
102
210
80
Average power
See Power Rating Chart page lntro-14
TTL input
High Level
2.2 to 5.5 V 800 pA max 5.5 V
Low Level
0to0.8V
20 |ja max 0.8 V
Switching time (max)
ms
15
Life (min)
2.5 million cycles
Connectors
N - TNC
-BNC
Actuator terminais
Solder pins or 9 pin D-Sub connector
Operating température range
-40 to +85 °C
Storage température range °C
-55 to +85 °C
Vibration (MIL STD 202 , method 204D, cond.D)
10-2000 Hz, 20g
operating
Shock (MIL STD 202 , method 213B, cond.C)
100g / 6 ms, % sine
non operating
Technical data sheets are available on : www.radiall.com
For more technical information, consult us/E-mail : USA : rfswitchusa@radiall.com/Rest ofthe world : switchingproducts@radiall.com
RADEAU®
SPDT-23
