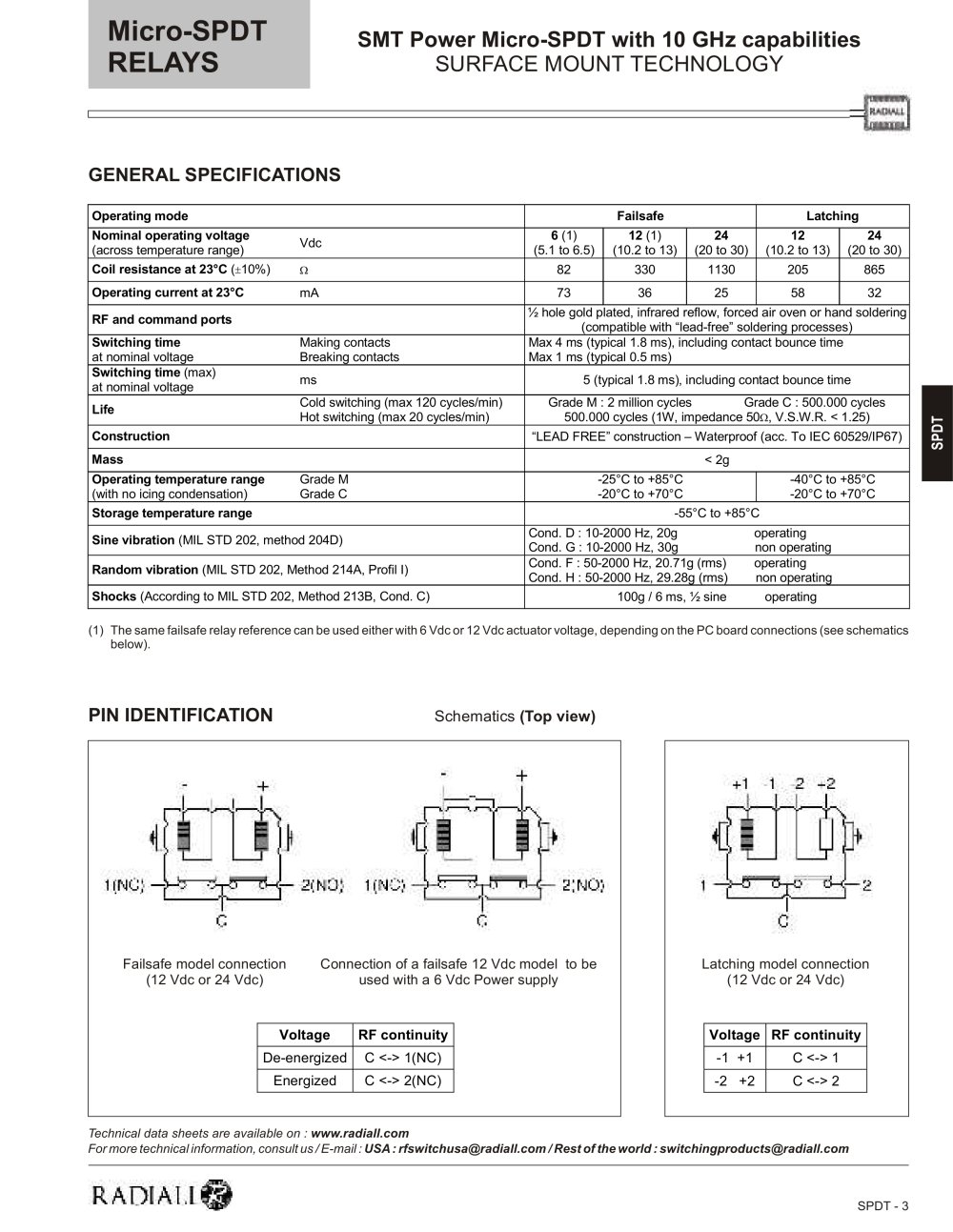

couv.cdr table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:11.00pt "Arial", sans-serif; } .font5 { font:13.00pt "Arial", sans-serif; } .font6 { font:14.00pt "Arial", sans-serif; } .font7 { font:17.00pt "Arial", sans-serif; } Micro-SPDT RELAYS SMT Power Micro-SPDT with 10 GHz capabilities SURFACE MOUNT TECHNOLOGY GENERAL SPECIFICATIONS Operating mode Failsafe Latching Nominal operating voltage (across température range) 6 (1) (5.1 to 6.5) 12 (1) (10.2 to 13) 24 (20 to 30) 12 (10.2 to13) 24 (20 to 30) Coil résistance at 23°C (±10%) n 82 330 1130 205 865 Operating current at 23°C mA 73 36 25 58 32 RF and command ports 1/2 hole gold plated, infrared reflow, forced air oven or hand soldering (compatible with "lead-free" soldering processes) Switching time Making contacts at nominal voltage Breaking contacts Max 4 ms (typical 1.8 ms), including contact bounce time Max 1 ms (typical 0.5 ms) Switching time (max) at nominal voltage 5 (typical 1.8 ms), including contact bounce time Cold switching (max 120 cycles/min) Hot switching (max 20 cycles/min) Grade M : 2 million cycles Grade C : 500.000 cycles 500.000 cycles (1W, impédance 50n, V.S.W.R. < 1.25) Construction "LEAD FREE" construction - Waterproof (acc. To IEC 60529/IP67) Mass <2g Operating température range Grade M (with no icing condensation) Grade C -25° C to +85° C -20°C to +70°C -40° C to +85° C -20°C to +70°C Storage température range -55° C to +85° C Sine vibration (MIL STD 202, method 204D) Cond. D : 10-2000 Hz, 20g operating Cond. G : 10-2000 Hz, 30g non operating Random vibration (MIL STD 202, Method 214A, Profil I) Cond. F : 50-2000 Hz, 20.71g (rms) operating Cond. H : 50-2000 Hz, 29.28g (rms) non operating Shocks (According to MIL STD 202, Method 213B, Cond. C) 100g / 6 ms, 14 sine operating i— O Q_ to (1) The same failsafe relay référence can be used either with 6 Vdc or 12 Vdc actuator voltage, depending on the PC board connections (see schematics below). PIN IDENTIFICATION Schematics (Top view) Failsafe model connection (12 Vdc or 24 Vdc) Connection of a failsafe 12 Vdc model to be used with a 6 Vdc Power supply Latching model connection (12 Vdc or 24 Vdc) Voltage RF continuity De-energized C<-> 1(NC) Energized C <-> 2(NC) Voltage RF continuity -1 +1 C <-> 1 -2 +2 C <-> 2 Technical data sheets are available on : www.radiall.com For more technical information, consult us/E-mail : USA : rfswitchusa@radiall.com/Rest ofthe world : switchingproducts@radiall.com RADEAU® SPDT-3
