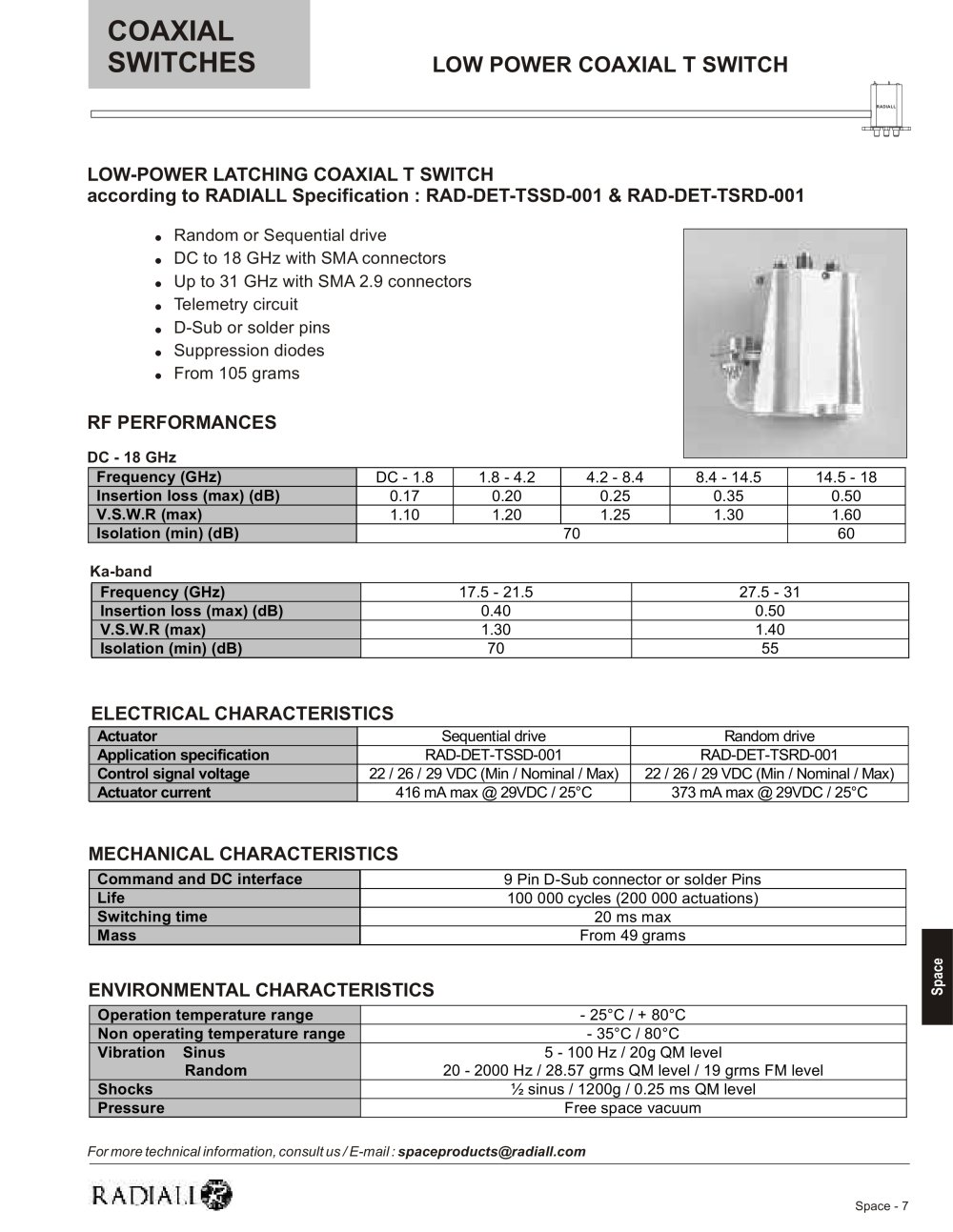

couv.cdr table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:10.00pt "Arial", sans-serif; } .font5 { font:14.00pt "Arial", sans-serif; } .font6 { font:15.00pt "Arial", sans-serif; } .font7 { font:17.00pt "Arial", sans-serif; } COAXIAL SWITCHES low power coaxial t switch • 1 LOW-POWER LATCHING COAXIAL T SWITCH according to RADIALL Spécification : RAD-DET-TSSD-001 & RAD-DET-TSRD-001 • Random or Sequential drive • DC to 18 GHz with SMA connectors • Up to 31 GHz with SMA 2.9 connectors • Telemetry circuit • D-Sub or solder pins • Suppression diodes • From 105 grams RF PERFORMANCES DC -18 GHz Frequency (GHz) DC - 1.8 1.8-4.2 4.2-8.4 8.4-14.5 14.5-18 Insertion loss (max) (dB) 0.17 0.20 0.25 0.35 0.50 V.S.W.R (max) 1.10 1.20 1.25 1.30 1.60 Isolation (min) (dB) 70 60 Ka-band Frequency (GHz) 17.5-21.5 27.5-31 Insertion loss (max) (dB) 0.40 0.50 V.S.W.R (max) 1.30 1.40 Isolation (min) (dB) 70 55 ELECTRICAL CHARACTERISTICS Actuator Sequential drive Random drive Application spécification RAD-DET-TSSD-001 RAD-DET-TSRD-001 Control signal voltage 22 / 26 / 29 VDC (Min / Nominal / Max) 22 / 26 / 29 VDC (Min / Nominal / Max) Actuator current 416 mA max @ 29VDC / 25°C 373 mA max @ 29VDC / 25°C MECHANICAL CHARACTERISTICS Command and DC interface 9 Pin D-Sub connector or solder Pins Life 100 000 cycles (200 000 actuations) Switching time 20 ms max Mass From 49 grams ENVIRONMENTAL CHARACTERISTICS Opération température range -25°C/ + 80°C Non operating température range -35°C/80°C Vibration Sinus Random 5-100 Hz/20g QM level 20 - 2000 Hz / 28.57 grms QM level /19 grms FM level Shocks 1/2 sinus / 1200g / 0.25 ms QM level Pressure Free space vacuum u For more technical information, consult us/E-mail : spaceproducts@radiall.com RADEAU® Space - 7
