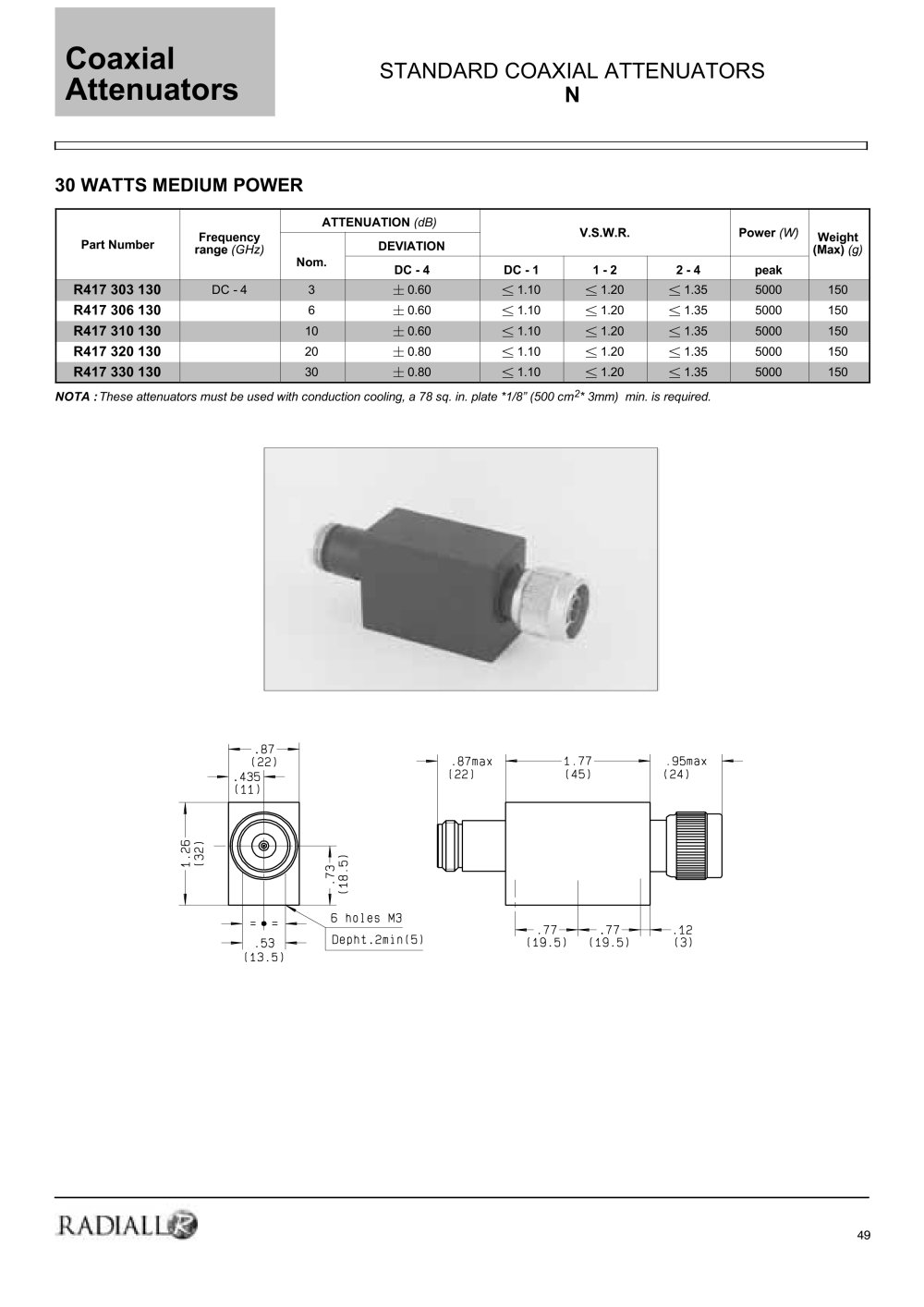

STANDARD COAXIAL ATTENUATORS
N
Coaxial
Attenuators
49
30 WATTS MEDIUM POWER
ATTENUATION (dB)
V S W R Power (W)
Part Number Frequency
range (GHz) DEVIATION
V.S.W.R. Weight
(Max) (g)
Nom. DC - 4 DC - 1 1 - 2 2 - 4 peak
R417 303 130 DC - 4 3 ¦ 0.60 ± 1.10 ± 1.20 ± 1.35 5000 150
R417 306 130 6 ¦ 0.60 ± 1.10 ± 1.20 ± 1.35 5000 150
R417 310 130 10 ¦ 0.60 ± 1.10 ± 1.20 ± 1.35 5000 150
R417 320 130 20 ¦ 0.80 ± 1.10 ± 1.20 ± 1.35 5000 150
R417 330 130 30 ¦ 0.80 ± 1.10 ± 1.20 ± 1.35 5000 150
NOTA :These attenuators must be used with conduction cooling, a 78 sq. in. plate *1/8” (500 cm2* 3mm) min. is required.
