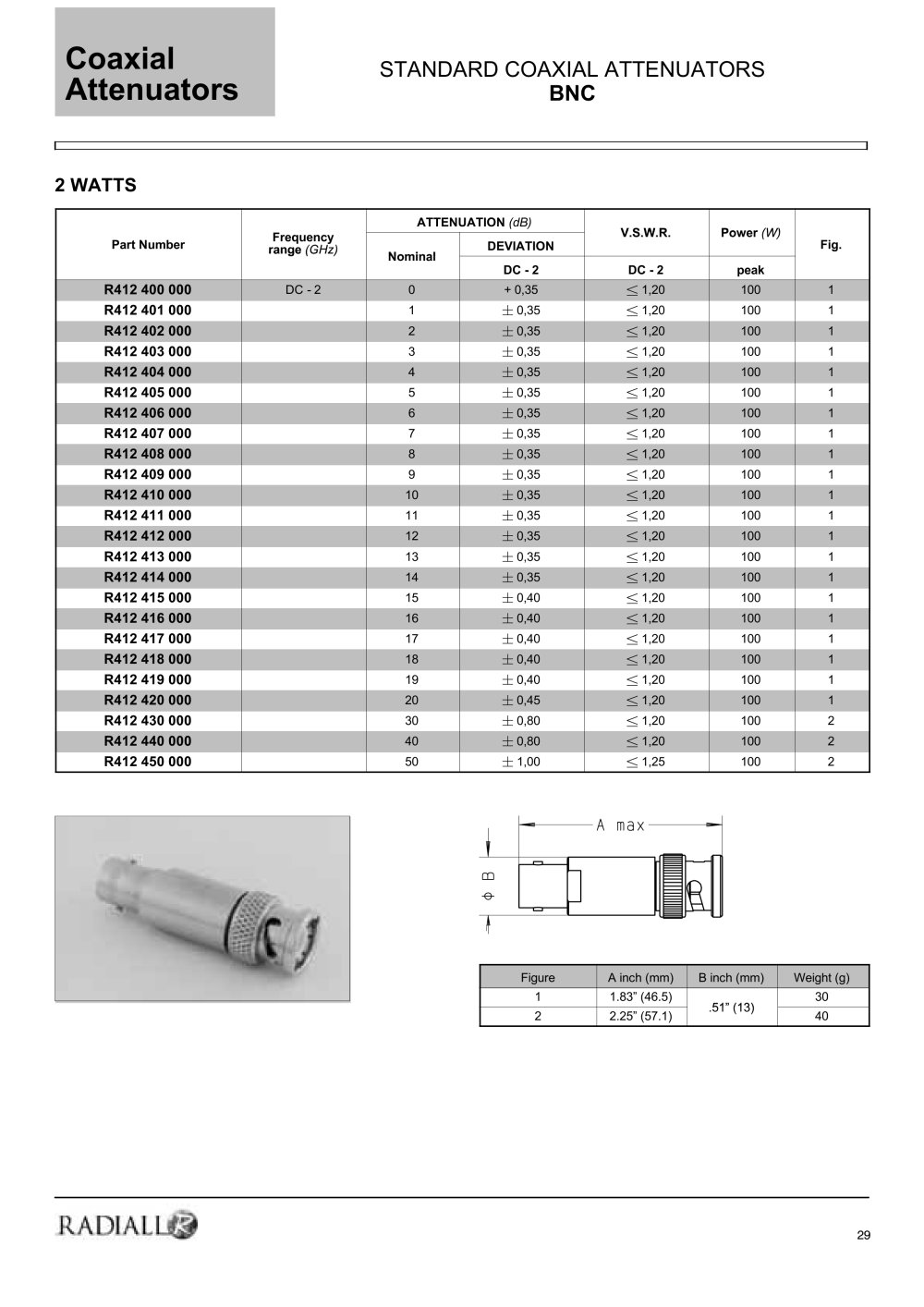

STANDARD COAXIAL ATTENUATORS
BNC
Coaxial
Attenuators
29
2 WATTS
ATTENUATION (dB)
V S W R Power (W)
Part Number Frequency
range (GHz) Nominal
DEVIATION
V.S.W.R. Fig. DC - 2 DC - 2 peak
g
R412 400 000 DC - 2 0 + 0,35 ± 1,20 100 1
R412 401 000 1 ¦ 0,35 ± 1,20 100 1
R412 402 000 2 ¦ 0,35 ± 1,20 100 1
R412 403 000 3 ¦ 0,35 ± 1,20 100 1
R412 404 000 4 ¦ 0,35 ± 1,20 100 1
R412 405 000 5 ¦ 0,35 ± 1,20 100 1
R412 406 000 6 ¦ 0,35 ± 1,20 100 1
R412 407 000 7 ¦ 0,35 ± 1,20 100 1
R412 408 000 8 ¦ 0,35 ± 1,20 100 1
R412 409 000 9 ¦ 0,35 ± 1,20 100 1
R412 410 000 10 ¦ 0,35 ± 1,20 100 1
R412 411 000 11 ¦ 0,35 ± 1,20 100 1
R412 412 000 12 ¦ 0,35 ± 1,20 100 1
R412 413 000 13 ¦ 0,35 ± 1,20 100 1
R412 414 000 14 ¦ 0,35 ± 1,20 100 1
R412 415 000 15 ¦ 0,40 ± 1,20 100 1
R412 416 000 16 ¦ 0,40 ± 1,20 100 1
R412 417 000 17 ¦ 0,40 ± 1,20 100 1
R412 418 000 18 ¦ 0,40 ± 1,20 100 1
R412 419 000 19 ¦ 0,40 ± 1,20 100 1
R412 420 000 20 ¦ 0,45 ± 1,20 100 1
R412 430 000 30 ¦ 0,80 ± 1,20 100 2
R412 440 000 40 ¦ 0,80 ± 1,20 100 2
R412 450 000 50 ¦ 1,00 ± 1,25 100 2
Figure A inch (mm) B inch (mm) Weight (g)
1 1.83” (46.5)
51” (13)
30
2 2.25” (57.1)
.51” 40
