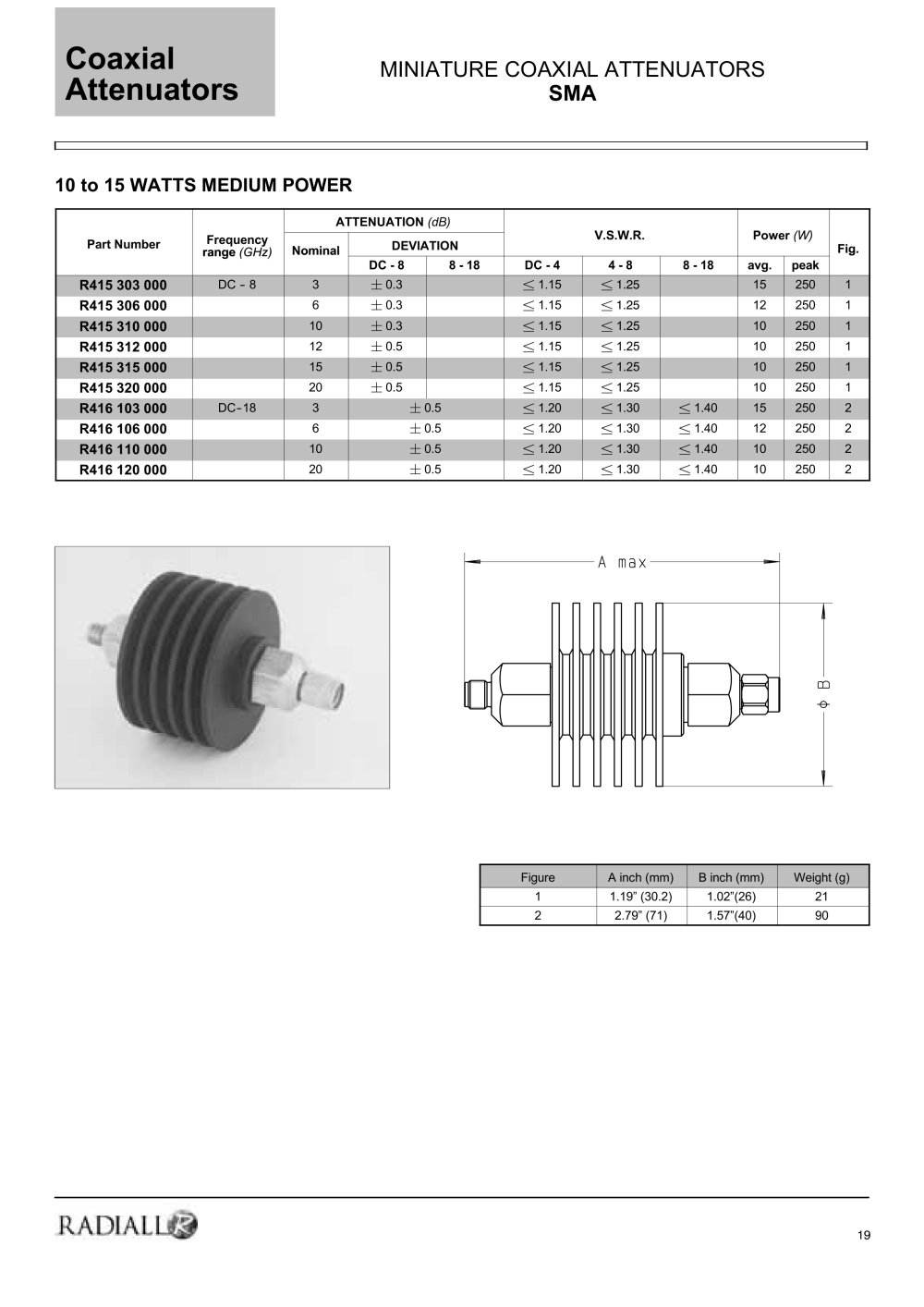

MINIATURE COAXIAL ATTENUATORS
SMA
Coaxial
Attenuators
19
10 to 15 WATTS MEDIUM POWER
ATTENUATION (dB)
V S W R P (W)
Part Number Frequency
range (GHz) Nominal DEVIATION
V.S.W.R. Power Fig.
DC - 8 8 - 18 DC - 4 4 - 8 8 - 18 avg. peak
R415 303 000 DC -- 8 3 ¦ 0.3 ± 1.15 ± 1.25 15 250 1
R415 306 000 6 ¦ 0.3 ± 1.15 ± 1.25 12 250 1
R415 310 000 10 ¦ 0.3 ± 1.15 ± 1.25 10 250 1
R415 312 000 12 ¦ 0.5 ± 1.15 ± 1.25 10 250 1
R415 315 000 15 ¦ 0.5 ± 1.15 ± 1.25 10 250 1
R415 320 000 20 ¦ 0.5 ± 1.15 ± 1.25 10 250 1
R416 103 000 DC--18 3 ¦ 0.5 ± 1.20 ± 1.30 ± 1.40 15 250 2
R416 106 000 6 ¦ 0.5 ± 1.20 ± 1.30 ± 1.40 12 250 2
R416 110 000 10 ¦ 0.5 ± 1.20 ± 1.30 ± 1.40 10 250 2
R416 120 000 20 ¦ 0.5 ± 1.20 ± 1.30 ± 1.40 10 250 2
Figure A inch (mm) B inch (mm) Weight (g)
1 1.19” (30.2) 1.02”(26) 21
2 2.79” (71) 1.57”(40) 90
