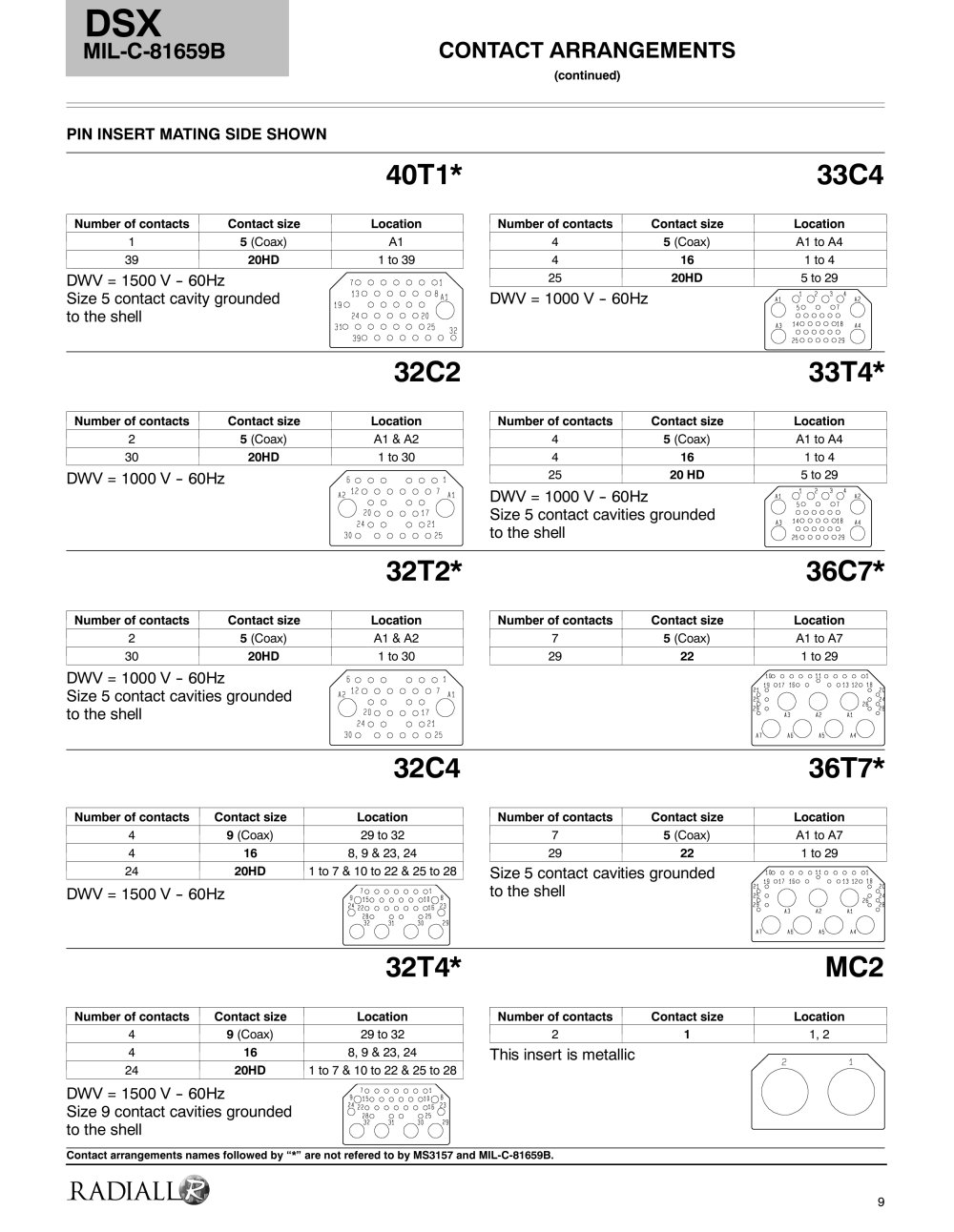

CONTACT ARRANGEMENTS (continued) Contact arrangements names followed by “*” are not refered to by MS3157 and MIL-C-81659B. DWV = 1500 V -- 60Hz Size 5 contact cavity grounded to the shell DWV = 1000 V -- 60Hz DWV = 1000 V -- 60Hz Size 5 contact cavities grounded to the shell DWV = 1500 V -- 60Hz DWV = 1500 V -- 60Hz Size 9 contact cavities grounded to the shell DWV = 1000 V -- 60Hz DWV = 1000 V -- 60Hz Size 5 contact cavities grounded to the shell Size 5 contact cavities grounded to the shell This insert is metallic DSX MIL-C-81659B 9 PIN INSERT MATING SIDE SHOWN 40T1* 33C4 Number of contacts Contact size Location Number of contacts Contact size Location 1 5 (Coax) A1 4 5 (Coax) A1 to A4 39 20HD 1 to 39 4 16 1 to 4 25 20HD 5 to 29 32C2 33T4* Number of contacts Contact size Location Number of contacts Contact size Location 2 5 (Coax) A1 & A2 4 5 (Coax) A1 to A4 30 20HD 1 to 30 4 16 1 to 4 25 20 HD 5 to 29 32T2* 36C7* Number of contacts Contact size Location Number of contacts Contact size Location 2 5 (Coax) A1 & A2 7 5 (Coax) A1 to A7 30 20HD 1 to 30 29 22 1 to 29 32C4 36T7* Number of contacts Contact size Location Number of contacts Contact size Location 4 9 (Coax) 29 to 32 7 5 (Coax) A1 to A7 4 16 8, 9 & 23, 24 29 22 1 to 29 24 20HD 1 to 7 & 10 to 22 & 25 to 28 32T4* MC2 Number of contacts Contact size Location Number of contacts Contact size Location 4 9 (Coax) 29 to 32 2 1 1, 2 4 16 8, 9 & 23, 24 24 20HD 1 to 7 & 10 to 22 & 25 to 28
