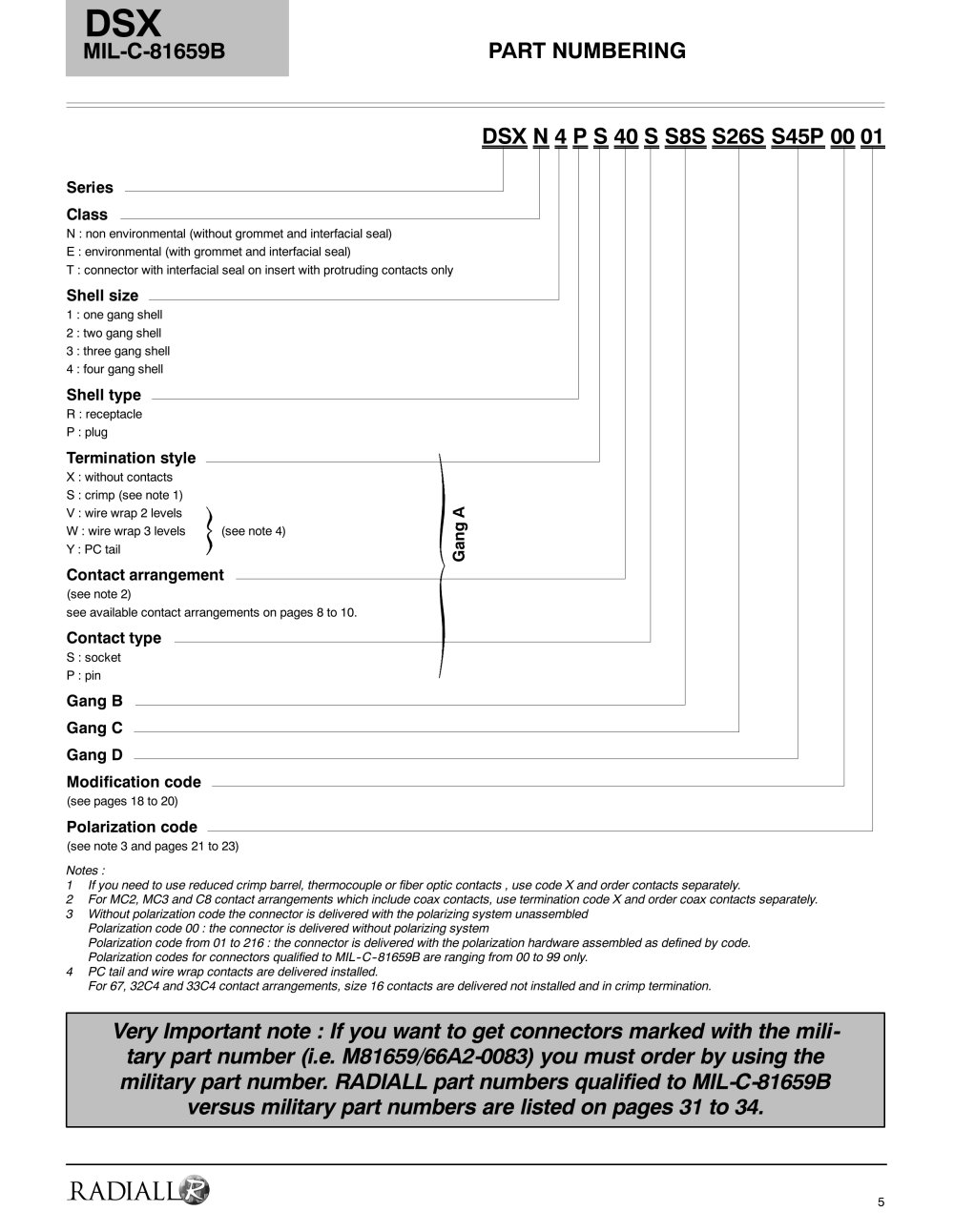

PART NUMBERING DSX N 4 P S 40 S S8S S26S S45P 00 01 Gang A (see note 4) DSX MIL-C-81659B 5 Series Class N : non environmental (without grommet and interfacial seal) E : environmental (with grommet and interfacial seal) T : connector with interfacial seal on insert with protruding contacts only Shell size 1 : one gang shell 2 : two gang shell 3 : three gang shell 4 : four gang shell Shell type R : receptacle P : plug Termination style X : without contacts S : crimp (see note 1) V : wire wrap 2 levels W : wire wrap 3 levels Y : PC tail Contact arrangement (see note 2) see available contact arrangements on pages 8 to 10. Contact type S : socket P : pin Gang B Gang C Gang D Modification code (see pages 18 to 20) Polarization code (see note 3 and pages 21 to 23) Notes : 1 If you need to use reduced crimp barrel, thermocouple or fiber optic contacts , use code X and order contacts separately. 2 For MC2, MC3 and C8 contact arrangements which include coax contacts, use termination code X and order coax contacts separately. 3 Without polarization code the connector is delivered with the polarizing system unassembled Polarization code 00 : the connector is delivered without polarizing system Polarization code from 01 to 216 : the connector is delivered with the polarization hardware assembled as defined by code. Polarization codes for connectors qualified to MIL--C--81659B are ranging from 00 to 99 only. 4 PC tail and wire wrap contacts are delivered installed. For 67, 32C4 and 33C4 contact arrangements, size 16 contacts are delivered not installed and in crimp termination. Very Important note : If you want to get connectors marked with the military part number (i.e. M81659/66A2-0083) you must order by using the military part number. RADIALL part numbers qualified to MIL-C-81659B versus military part numbers are listed on pages 31 to 34.
