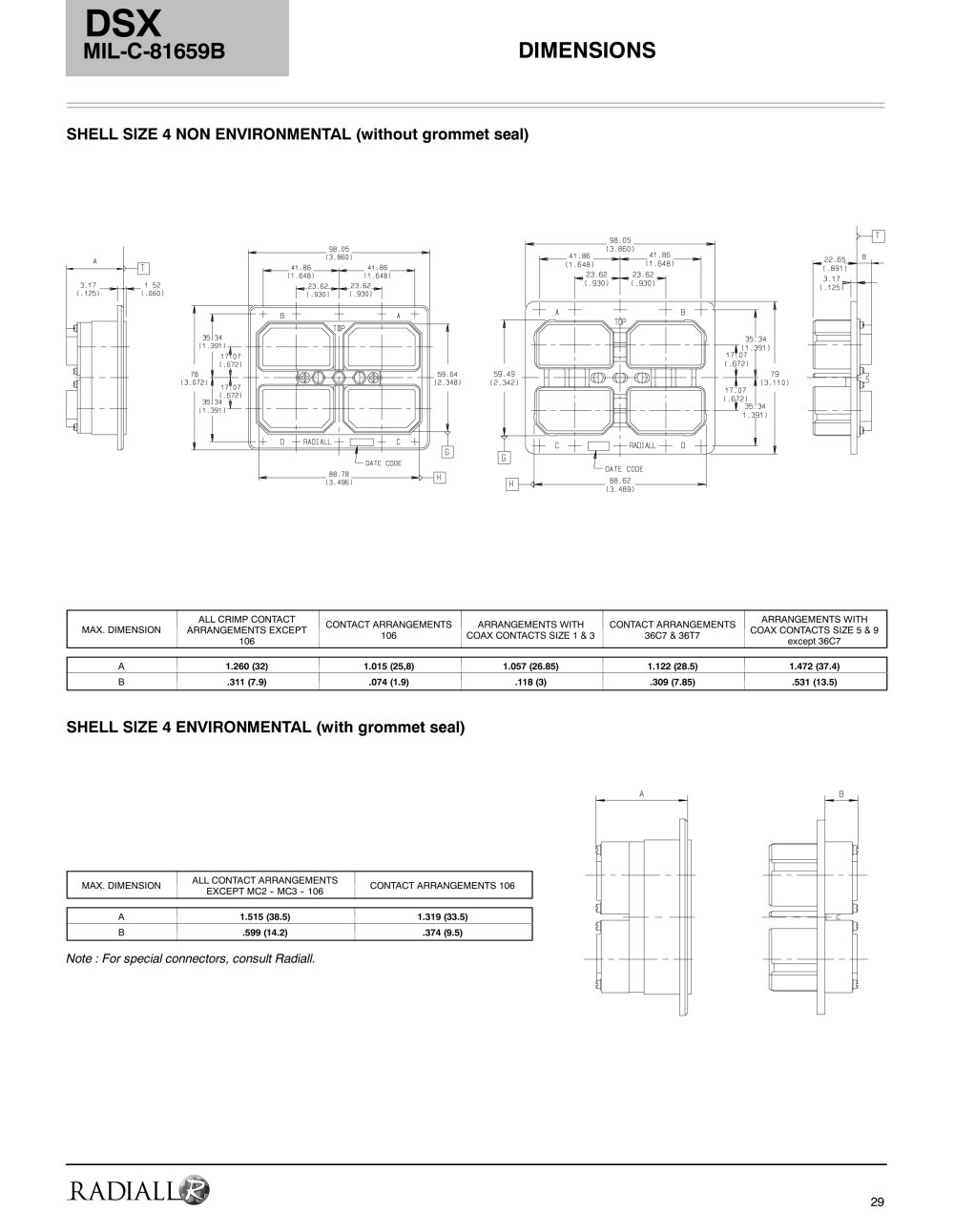

DIMENSIONS
DSX
MIL-C-81659B
29
SHELL SIZE 4 NON ENVIRONMENTAL (without grommet seal)
MAX. DIMENSION
ALL CRIMP CONTACT
ARRANGEMENTS EXCEPT
106
CONTACT ARRANGEMENTS
106
ARRANGEMENTS WITH
COAX CONTACTS SIZE 1 & 3
CONTACT ARRANGEMENTS
36C7 & 36T7
ARRANGEMENTS WITH
COAX CONTACTS SIZE 5 & 9
except 36C7
A 1.260 (32) 1.015 (25,8) 1.057 (26.85) 1.122 (28.5) 1.472 (37.4)
B .311 (7.9) .074 (1.9) .118 (3) .309 (7.85) .531 (13.5)
SHELL SIZE 4 ENVIRONMENTAL (with grommet seal)
MAX. DIMENSION ALL CONTACT ARRANGEMENTS
EXCEPT MC2 -- MC3 -- 106
CONTACT ARRANGEMENTS 106
A 1.515 (38.5) 1.319 (33.5)
B .599 (14.2) .374 (9.5)
Note : For special connectors, consult Radiall.
