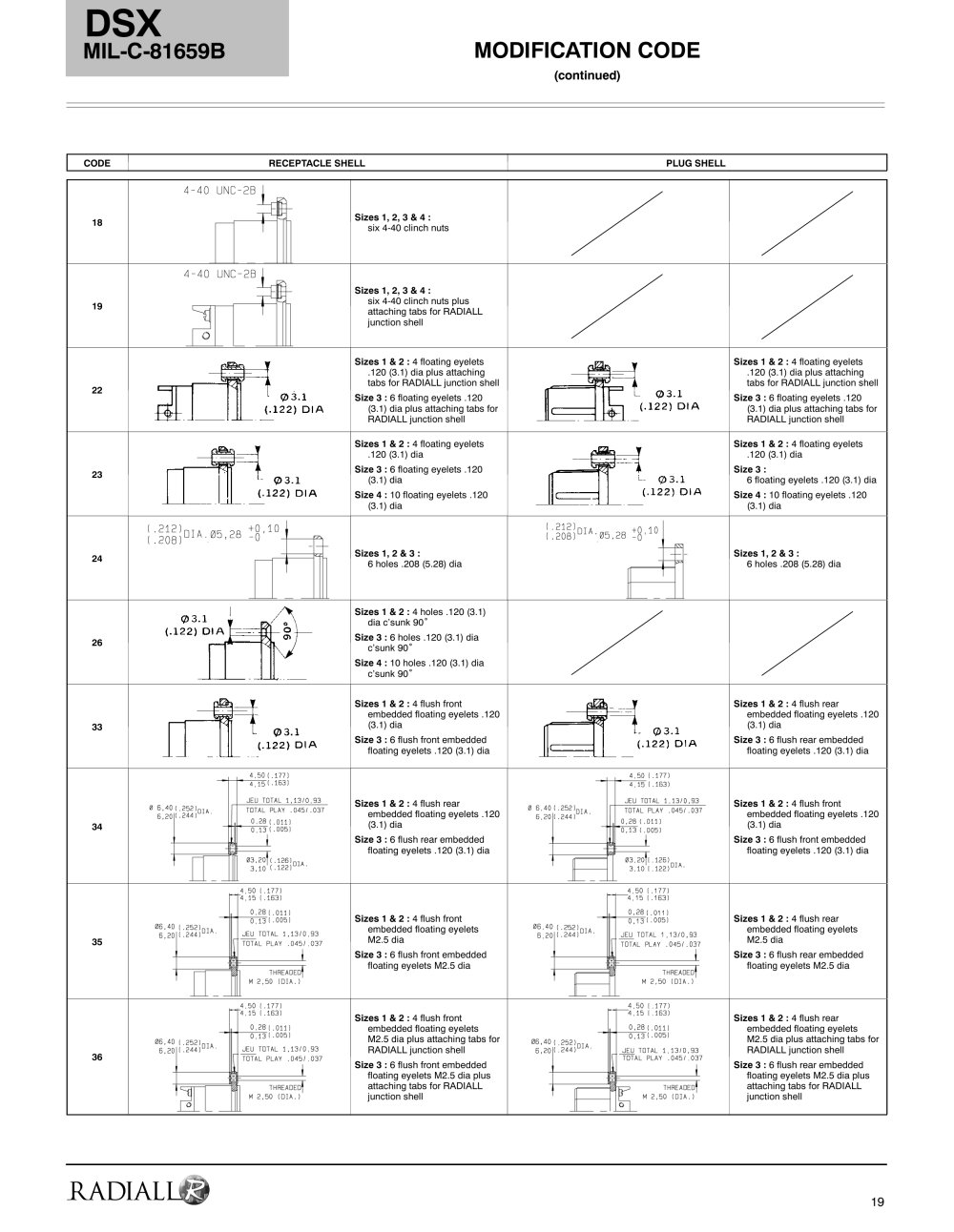

MODIFICATION CODE
(continued)
DSX
MIL-C-81659B
19
CODE RECEPTACLE SHELL PLUG SHELL
18 Sizes 1, 2, 3 & 4 :
six 4-40 clinch nuts
19
Sizes 1, 2, 3 & 4 :
six 4-40 clinch nuts plus
attaching tabs for RADIALL
junction shell
22
Sizes 1 & 2 : 4 floating eyelets
.120 (3.1) dia plus attaching
tabs for RADIALL junction shell
Size 3 : 6 floating eyelets .120
(3.1) dia plus attaching tabs for
RADIALL junction shell
Sizes 1 & 2 : 4 floating eyelets
.120 (3.1) dia plus attaching
tabs for RADIALL junction shell
Size 3 : 6 floating eyelets .120
(3.1) dia plus attaching tabs for
RADIALL junction shell
23
Sizes 1 & 2 : 4 floating eyelets
.120 (3.1) dia
Size 3 : 6 floating eyelets .120
(3.1) dia
Size 4 : 10 floating eyelets .120
(3.1) dia
Sizes 1 & 2 : 4 floating eyelets
.120 (3.1) dia
Size 3 :
6 floating eyelets .120 (3.1) dia
Size 4 : 10 floating eyelets .120
(3.1) dia
24 Sizes 1, 2 & 3 :
6 holes .208 (5.28) dia
Sizes 1, 2 & 3 :
6 holes .208 (5.28) dia
26
Sizes 1 & 2 : 4 holes .120 (3.1)
dia c’sunk 90°
Size 3 : 6 holes .120 (3.1) dia
c’sunk 90°
Size 4 : 10 holes .120 (3.1) dia
c’sunk 90°
33
Sizes 1 & 2 : 4 flush front
embedded floating eyelets .120
(3.1) dia
Size 3 : 6 flush front embedded
floating eyelets .120 (3.1) dia
Sizes 1 & 2 : 4 flush rear
embedded floating eyelets .120
(3.1) dia
Size 3 : 6 flush rear embedded
floating eyelets .120 (3.1) dia
34
Sizes 1 & 2 : 4 flush rear
embedded floating eyelets .120
(3.1) dia
Size 3 : 6 flush rear embedded
floating eyelets .120 (3.1) dia
Sizes 1 & 2 : 4 flush front
embedded floating eyelets .120
(3.1) dia
Size 3 : 6 flush front embedded
floating eyelets .120 (3.1) dia
35
Sizes 1 & 2 : 4 flush front
embedded floating eyelets
M2.5 dia
Size 3 : 6 flush front embedded
floating eyelets M2.5 dia
Sizes 1 & 2 : 4 flush rear
embedded floating eyelets
M2.5 dia
Size 3 : 6 flush rear embedded
floating eyelets M2.5 dia
36
Sizes 1 & 2 : 4 flush front
embedded floating eyelets
M2.5 dia plus attaching tabs for
RADIALL junction shell
Size 3 : 6 flush front embedded
floating eyelets M2.5 dia plus
attaching tabs for RADIALL
junction shell
Sizes 1 & 2 : 4 flush rear
embedded floating eyelets
M2.5 dia plus attaching tabs for
RADIALL junction shell
Size 3 : 6 flush rear embedded
floating eyelets M2.5 dia plus
attaching tabs for RADIALL
junction shell
