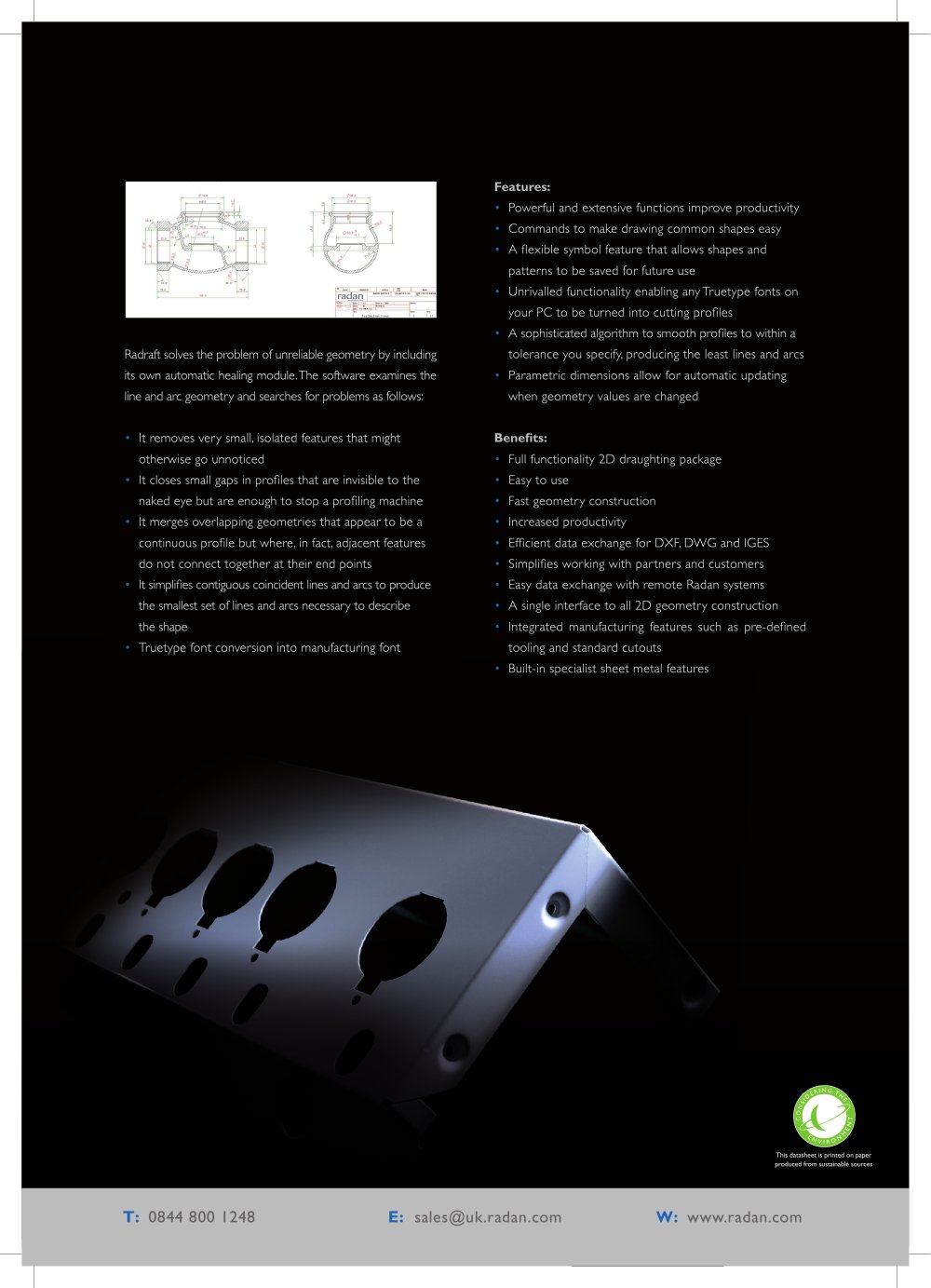

Features: • Powerful and extensive functions improve productivity• Commands to make drawing common shapes easy• A flexible symbol feature that allows shapes and patterns to be saved for future use • Unrivalled functionality enabling any Truetype fonts on your PC to be turned into cutting profiles • A sophisticated algorithm to smooth profiles to within a tolerance you specify, producing the least lines and arcs • Parametric dimensions allow for automatic updating when geometry values are changed Benefits: • Full functionality 2D draughting package• Easy to use• Fast geometry construction• Increased productivity• Efficient data exchange for DXF, DWG and IGES• Simplifies working with partners and customers• Easy data exchange with remote Radan systems• A single interface to all 2D geometry construction• Integrated manufacturing features such as pre-defined tooling and standard cutouts • Built-in specialist sheet metal features Radraft solves the problem of unreliable geometry by including its own automatic healing module. The software examines the line and arc geometry and searches for problems as follows:• It removes very small, isolated features that might otherwise go unnoticed • It closes small gaps in profiles that are invisible to the naked eye but are enough to stop a profiling machine • It merges overlapping geometries that appear to be a continuous profile but where, in fact, adjacent features do not connect together at their end points • It simplifies contiguous coincident lines and arcs to produce the smallest set of lines and arcs necessary to describe the shape • Truetype font conversion into manufacturing font This datasheet is printed on paper produced from sustainable sources T: 0844 800 1248 E: sales@uk.radan.com
