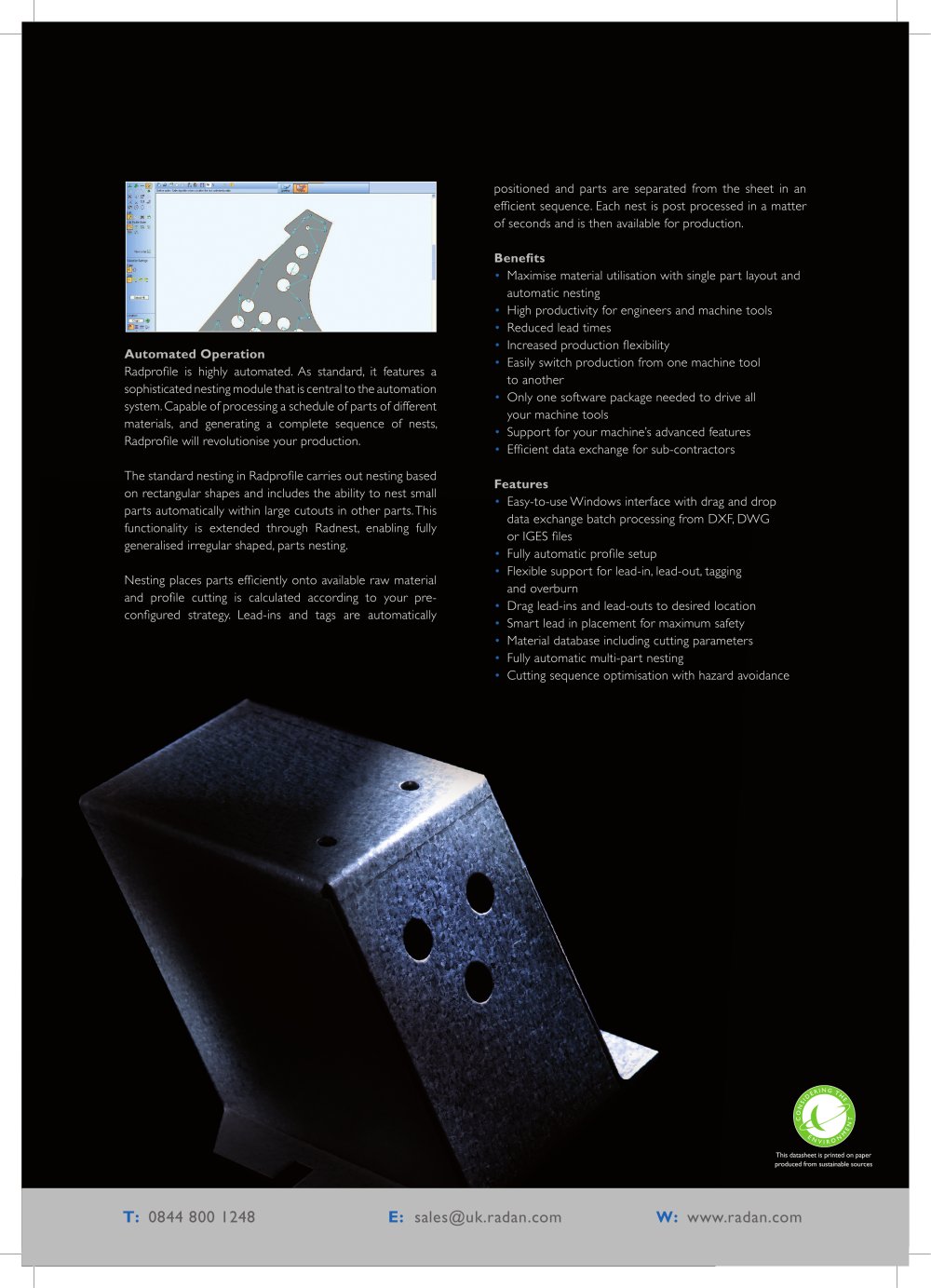

positioned and parts are separated from the sheet in an efficient sequence. Each nest is post processed in a matter of seconds and is then available for production. Benefits • Maximise material utilisation with single part layout and automatic nesting• High productivity for engineers and machine tools• Reduced lead times• Increased production flexibility• Easily switch production from one machine tool to another• Only one software package needed to drive all your machine tools• Support for your machine’s advanced features• Efficient data exchange for sub-contractors Automated Operation Radprofile is highly automated. As standard, it features a sophisticated nesting module that is central to the automation system. Capable of processing a schedule of parts of different materials, and generating a complete sequence of nests, Radprofile will revolutionise your production.The standard nesting in Radprofile carries out nesting based on rectangular shapes and includes the ability to nest small parts automatically within large cutouts in other parts. This functionality is extended through Radnest, enabling fully generalised irregular shaped, parts nesting.Nesting places parts efficiently onto available raw material and profile cutting is calculated according to your pre- configured strategy. Lead-ins and tags are automatically Features • Easy-to-use Windows interface with drag and drop data exchange batch processing from DXF, DWG or IGES files• Fully automatic profile setup• Flexible support for lead-in, lead-out, tagging and overburn• Drag lead-ins and lead-outs to desired location• Smart lead in placement for maximum safety• Material database including cutting parameters• Fully automatic multi-part nesting• Cutting sequence optimisation with hazard avoidance This datasheet is printed on paper produced from sustainable sources T: T: 0844 800 1248 0844 800 1248 E: E: sales@uk.radan.com sales@uk.radan.com
