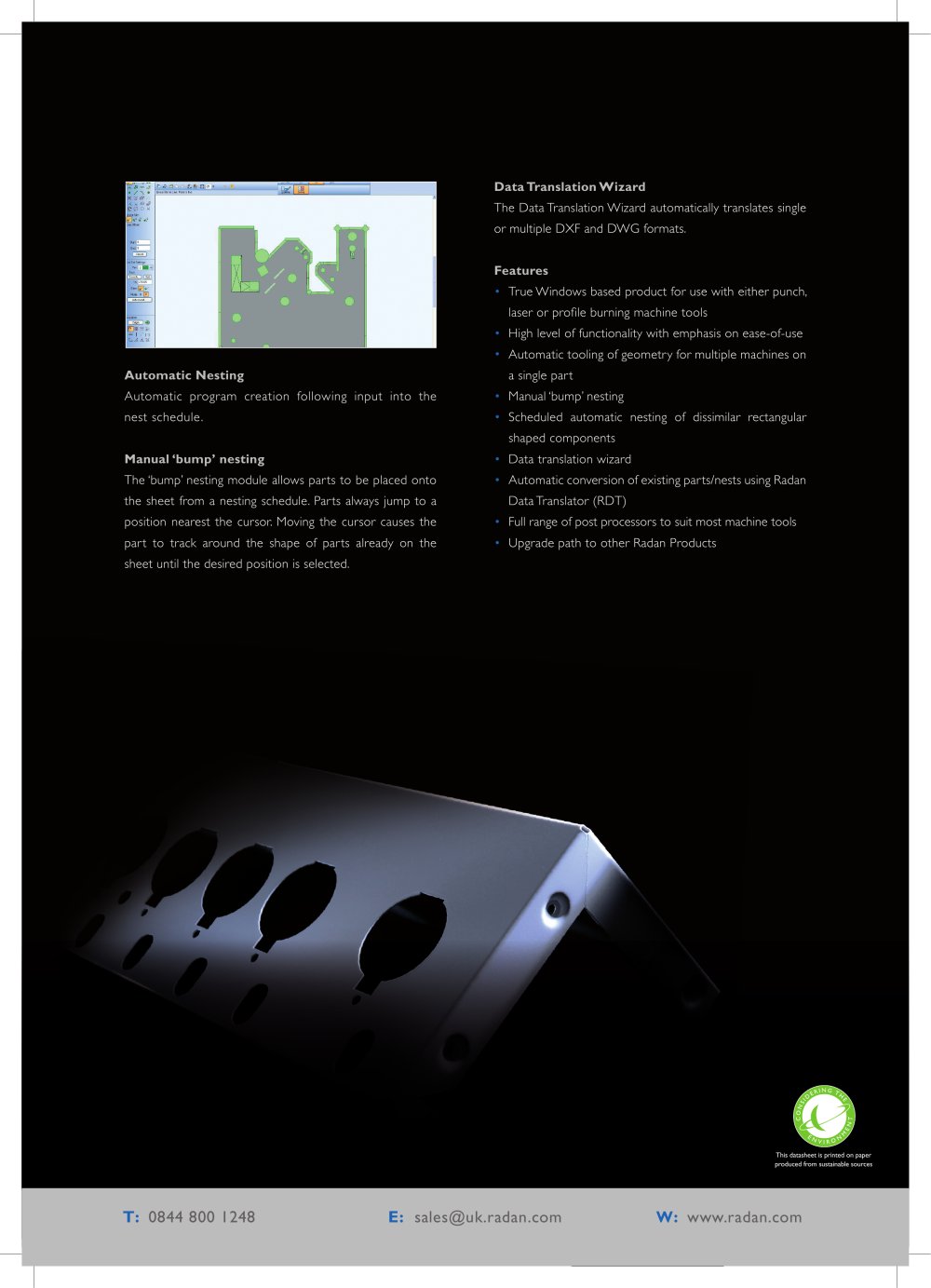

Data Translation Wizard The Data Translation Wizard automatically translates single or multiple DXF and DWG formats. Features • True Windows based product for use with either punch, laser or profile burning machine tools • High level of functionality with emphasis on ease-of-use• Automatic tooling of geometry for multiple machines on a single part • Manual ‘bump’ nesting• Scheduled automatic nesting of dissimilar rectangular shaped components • Data translation wizard• Automatic conversion of existing parts/nests using Radan Data Translator (RDT) • Full range of post processors to suit most machine tools • Upgrade path to other Radan Products Automatic Nesting Automatic program creation following input into the nest schedule. Manual ‘bump’ nesting The ‘bump’ nesting module allows parts to be placed onto the sheet from a nesting schedule. Parts always jump to a position nearest the cursor. Moving the cursor causes the part to track around the shape of parts already on the sheet until the desired position is selected.
This datasheet is printed on paper produced from sustainable sources
