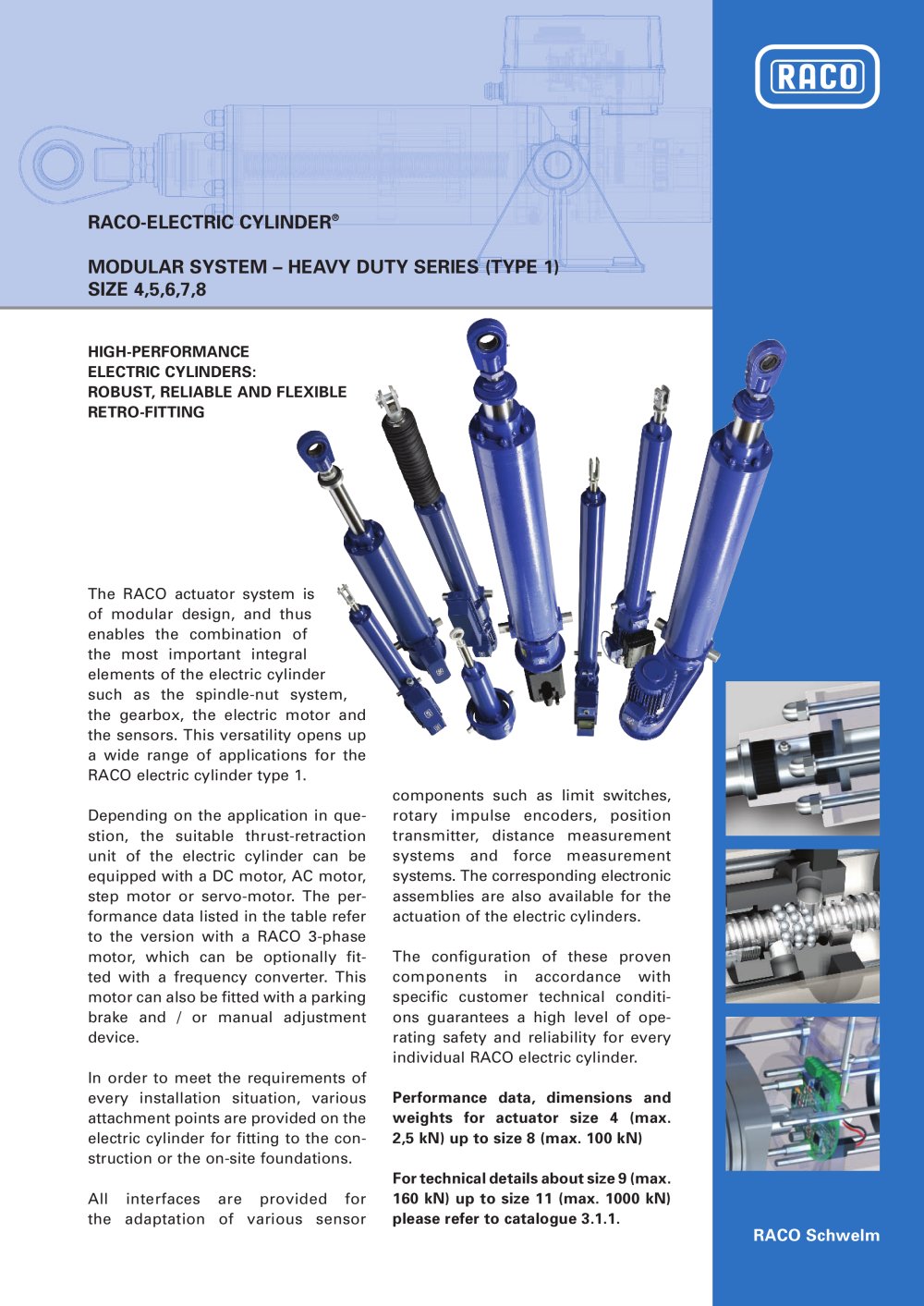

RACO-ELECTRIC CYLINDER®
MODULAR SYSTEM – HEAVY DUTY SERIES (TYPE 1)
SIZE 4,5,6,7,8
RACO Schwelm
HIGH-PERFORMANCE
ELECTRIC CYLINDERS:
ROBUST, RELIABLE AND FLEXIBLE
RETRO-FITTING
The RACO
actuator system is
of modular design, and thus
enables the combination of
the most important integral
elements of the
electric cylinder
such as the spindle-nut system,
the gearbox, the electric motor and
the sensors. This versatility opens up
a wide range of applications for the
RACO
electric cylinder type 1.
Depending on the application in question,
the suitable thrust-retraction
unit of the
electric cylinder can be
equipped with a DC motor, AC motor,
step motor or servo-motor. The performance
data listed in the table refer
to the version with a RACO 3-phase
motor, which can be optionally fitted
with a frequency converter. This
motor can also be fitted with a parking
brake and / or manual adjustment
device.
In order to meet the requirements of
every installation situation, various
attachment points are provided on the
electric cylinder for fitting to the construction
or the on-site foundations.
All interfaces are provided for
the adaptation of various sensor
components such as limit switches,
rotary impulse encoders, position
transmitter, distance measurement
systems and force measurement
systems. The corresponding electronic
assemblies are also available for the
actuation of the
electric cylinders.
The configuration of these proven
components in accordance with
specific customer technical conditions
guarantees a high level of operating
safety and reliability for every
individual RACO
electric cylinder.
Performance data, dimensions and
weights for
actuator size 4 (max.
2,5 kN) up to size 8 (max. 100 kN)
For technical details about size 9 (max.
160 kN) up to size 11 (max. 1000 kN)
please refer to catalogue 3.1.1.
