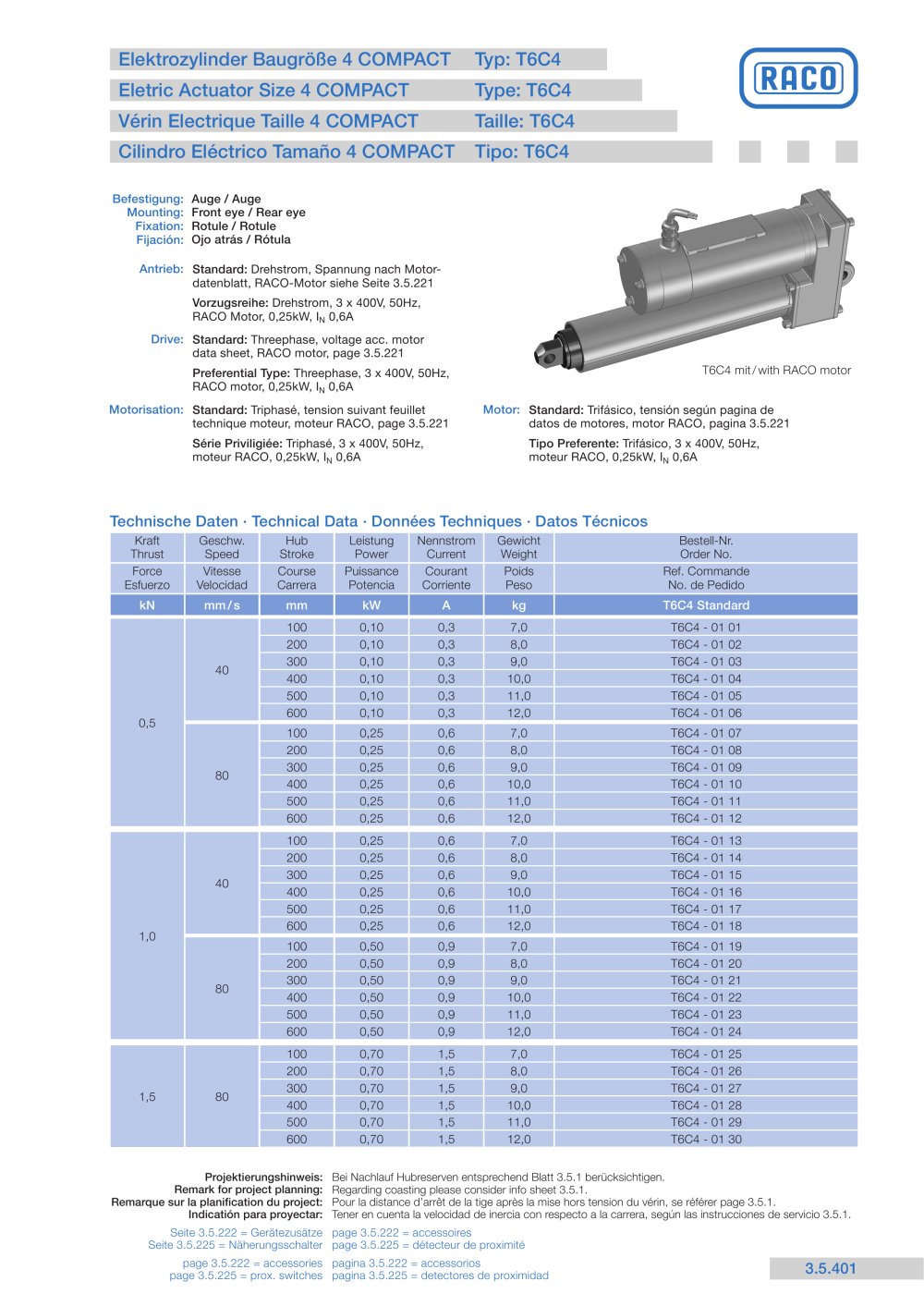

COMPACT Electric Actuators
16Pages

{{requestButtons}}

Catalog excerpts

COMPACT Electric Actuators - 2

T6C4 - P4 11/07 (127-403-1) © RACO 3.5.402 Elektrozylinder Baugröße 4 Compact Typ: T6C4 Eletric Actuator Size 4 COMP ACT Type: T6C4 Vérin Electrique Taille 4 COMP ACT Taille: T6C4 Cilindro Eléctrico Tamaño 4 COMP ACT Tipo: T6C4 Technische Änderungen vorbehalten. Changes and technical improvements reserved. Sous réserve de modifications techniques. Reservadas modificaciones técnicas. RACO-Elektro-Maschinen GmbH Jesinghauser Str. 56-64 58332 Schwelm/Germany Tel.: (+49) (2336) 40 09-0 Fax.: (+49) (2336) 40 09 10 e-Mail: RACO@raco.de Internet: www.raco.de Befestigung: Mounting: Fixation:...

Open the catalog to page 2
COMPACT Electric Actuators - 4

Technische Änderungen vorbehalten. Changes and technical improvements reserved. Sous réserve de modifications techniques. Reservadas modificaciones técnicas. Hub Stroke Course Carrera mm 100 200 Maß a3 Dimension a3 Dimension a3 Dimensión a3 mm T6L4 - P2 11/07 (127-418-0) © RACO 300 400 280 380 480 580 RACO-Elektro-Maschinen GmbH Jesinghauser Str. 56-64 58332 Schwelm/Germany Tel.: (+49) (2336) 40 09-0 Fax.: (+49) (2336) 40 09 10 e-Mail: RACO@raco.de Internet: 3.5.406 www.raco.de Elektrozylinder Baugröße 4 Compact Typ: T6L4 Eletric Actuator Size 4 COMPA CT Type: T6L4 Vérin Electrique Taille 4...

Open the catalog to page 4
COMPACT Electric Actuators - 6

T6L4 - P3 11/07 (127-421-0) © RACO 3.5.410 Elektrozylinder Baugröße 4 Compact Typ: T6L4 Eletric Actuator Size 4 COMPA CT Type: T6L4 Vérin Electrique Taille 4 COMPA CT Taille: T6L4 Cilindro Eléctrico Tamaño 4 COMPA CT Tipo: T6L4 Technische Änderungen vorbehalten. Changes and technical improvements reserved. Sous réserve de modifications techniques. Reservadas modificaciones técnicas. RACO-Elektro-Maschinen GmbH Jesinghauser Str. 56-64 58332 Schwelm/Germany Tel.: (+49) (2336) 40 09-0 Fax.: (+49) (2336) 40 09 10 e-Mail: RACO@raco.de Internet: www.raco.de Befestigung: Mounting: Fixation:...

Open the catalog to page 6
COMPACT Electric Actuators - 7

T6L4-DC-IP40 Bestell-Nr. Order No. Ref. Commande No. de Pedido Elektrozylinder Baugröße 4 Compact Typ: T6L4-DC Eletric Actuator Size 4 COM PACT Type: T6L4-DC Vérin Electrique Taille 4 COM PACT Taille: T6L4-DC Cilindro Eléctrico Tamaño 4 COM PACT Tipo: T6L4-DC 3.5.409a Befestigung: Mounting: Fixation: Fijación: Antrieb: Drive: Motorisation: Motor: Auge / Auge Front eye / Rear eye Rotule / Rotule Ojo atrás / Rótula 24 V DC, IP 40 / IP 65 24 V DC, IP 40 / IP 65 24 V DC, IP 40 / IP 65 24 V DC, IP 40 / IP 65 Seite 3.5.225 = Näherungsschalter page 3.5.225 = prox. switches page 3.5.225 = détecteur...

Open the catalog to page 7
COMPACT Electric Actuators - 8

Technische Änderungen vorbehalten. Changes and technical improvements reserved. Sous réserve de modifications techniques. Reservadas modificaciones técnicas. T6L4DC - P3 11/07 (148-218-1) © RACO RACO-Elektro-Maschinen GmbH Jesinghauser Str. 56-64 58332 Schwelm/Germany Tel.: (+49) (2336) 40 09-0 Fax.: (+49) (2336) 40 09 10 e-Mail: RACO@raco.de Internet: 3.5.410a www.raco.de Hub Stroke Course Carrera mm 100 200 Maß a3 Dimension a3 Dimension a3 Dimensión a3 mm 300 400 280 380 480 580 500 680 600 780 62 M12 durch R 17,5 72 Option Flansch Option Flange 90 120 36 ø 60 13 ø 63 20 33 30 ausfahrend...

Open the catalog to page 8
COMPACT Electric Actuators - 9

Elektrozylinder Baugröße 4 Compact Typ: T6N4 Eletric Actuator Size 4 COMPA CT T ype: T6N4 Vérin Electrique Taille 4 COMPA CT T aille: T6N4 Cilindro Eléctrico Tamaño 4 COMPA CT T ipo: T6N4 3.5.411 Befestigung: Mounting: Fixation: Fijación: Antrieb: Auge / Auge Front eye / Rear eye Rotule / Rotule Ojo atrás / Rótula Standard: Drehstrom, Spannung nach Motordatenblatt, RACO-Motor siehe Seite 3.5.221 Vorzugsreihe: Drehstrom, 3 x 400V, 50Hz, RACO Motor, 0,25kW, IN 0,6A page 3.5.222 = accessories page 3.5.225 = prox. switches pagina 3.5.222 = accessorios pagina 3.5.225 = detectores de proximidad...

Open the catalog to page 9
COMPACT Electric Actuators - 10

T6N4 - P4 11/07 (131-023-2) © RACO 3.5.412 Elektrozylinder Baugröße 4 Compact Typ: T6N4 Eletric Actuator Size 4 COMPA CT T ype: T6N4 Vérin Electrique Taille 4 COMPA CT T aille: T6N4 Cilindro Eléctrico Tamaño 4 COMPA CT T ipo: T6N4 Technische Änderungen vorbehalten. Changes and technical improvements reserved. Sous réserve de modifications techniques. Reservadas modificaciones técnicas. RACO-Elektro-Maschinen GmbH Jesinghauser Str. 56-64 58332 Schwelm/Germany Tel.: (+49) (2336) 40 09-0 Fax.: (+49) (2336) 40 09 10 e-Mail: RACO@raco.de Internet: www.raco.de Befestigung: Mounting: Fixation:...

Open the catalog to page 10
COMPACT Electric Actuators - 11

Kraft Thrust kN mm / s mm kW A kg T6A4 Geschw. Speed Gewicht Weight Bestell-Nr. Order No. Hub Stroke Leistung Power Nennstrom Current Motor Drive Motorisation Motor Courant Corriente Force Esfuerzo Vitesse Velocidad Poids Peso Ref. Commande Ref. Pedido Course Carrera Puissance Potencia 3,0 90 100 200 300 400 500 600 T6A4 - 0125 T6A4 - 0126 T6A4 - 0127 T6A4 - 0128 T6A4 - 0129 T6A4 - 0130 22 23 24 25 26 27 5,0 45 100 200 300 400 500 600 5,0 5,0 60 90 100 200 300 400 500 600 100 200 300 400 500 600 3,0 3,0 3,0 3,0 3,0 3,0 Technische Daten · Technical Data · Données Techniques · Datos Técnicos...

Open the catalog to page 11
COMPACT Electric Actuators - 12

42 34 20 a 3 Option Näherungsschalter Option prox. switches Option détecteur de proximité Opción detectores de proximidad Option Gerätezusatzgehäuse A Option Accessory Housing A Option Boîtier Accessoires A Opción Carcasa Accesorios A 20 100 140 20 H7 22 f7 90 * Motor A + Bremse Motor A + Brake Moteur A + Frein Motor A + Freno ** Motor B + Bremse Motor B + Brake Moteur B + Frein Motor B + Freno 3.5.416 Technische Änderungen vorbehalten. Changes and technical improvements reserved. Sous réserve de modifications techniques. Reservadas modificaciones técnicas. Hub Stroke Course Carrera mm 100...

Open the catalog to page 12
COMPACT Electric Actuators - 13

Kraft Thrust kN mm / s mm kW A kg T6C4-105 Geschw. Speed Gewicht Weight Bestell-Nr. Order No. Hub Stroke Leistung Power Nennstrom Current Motor Drive Motorisation Motor Courant Corriente Force Esfuerzo Vitesse Velocidad Poids Peso Ref. Commande Ref. Pedido Course Carrera Puissance Potencia 1,5 90 100 200 300 400 500 600 T6C4-105 - 0101 T6C4-105 - 0102 T6C4-105 - 0103 T6C4-105 - 0104 T6C4-105 - 0105 T6C4-105 - 0106 T6C4-105 - 0107 T6C4-105 - 0108 T6C4-105 - 0109 T6C4-105 - 0110 T6C4-105 - 0111 T6C4-105 - 0112 T6C4-105 - 0113 T6C4-105 - 0114 T6C4-105 - 0115 T6C4-105 - 0116 T6C4-105 - 0117...

Open the catalog to page 13
