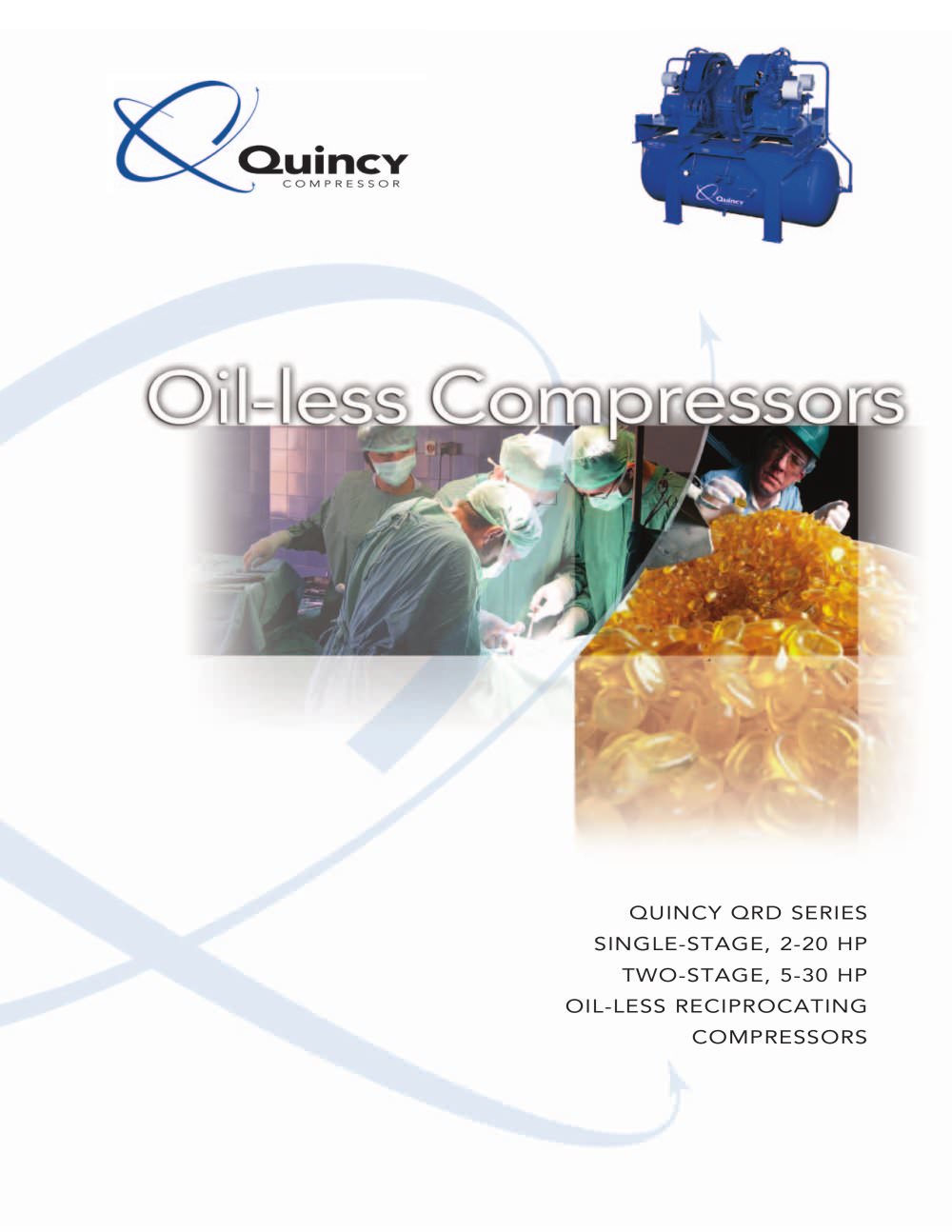

QUINCY QRD SERIES SINGLE-STAGE, 2-20 HP TWO-STAGE, 5-30 HP OIL-LESS RECIPROCATING COMPRESSORS

CLEAN, OIL-LESS AIR When you need up to 100 psig of clean air for your hospital, laboratory, pharmaceutical, or bulk material application, you need absolutely clean air. Your system won’t tolerate the smallest hint of oil – exactly why we built the Quincy QRDS. With 2-20 hp models built to deliver up to 100 psig, every Quincy QRDS utilizes Teflon™ industrial technology to minimize friction while operating without using a single drop of oil. They also employ graphite gaskets, so the Quincy QRDS series of compressors comply with EPA health standards. QUINCY DEPENDABILITY With years of proven...

STANDARD FEATURES,BASIC COMPRESSOR • Cast-iron crankcase and main bearing carrier for strength and durability • One-piece ductile iron connecting rods for strength and rigidity • Totally sealed, prelubricated bearings for long life • Hard-coat anodized and precision-honed aluminum cylinders and aluminum heads with deep fins for efficient heat dissipation • Aluminum pistons facilitate heat dissipation and balancing • All-polymeric reinforced PTFE piston and rider rings for low friction and precise piston orientation • Hard-coated and Teflon™ impregnated valve plates for long life • Stainless...

OIL-LESS COMPRESSORS Air Shroud for Fan Blast control for optimum cooling Teflon-Composite Compression Rings (PTFE) eliminate the need for lubricant Permanent Mold Aluminum Pistons for light weight balanced operation and heat dissipation Permanent Mold Aluminum Cylinder with hard coat annodized cylinder bores for efficient compression and optimum compression ring seating Cast Iron Crankcase and Main Bearing Carrier for machining integrity and superior durability One Piece High Strength Ductile Iron Connecting Rods, pressed onto the crankshaft for a precise fit Stainless Steel Reed Valves...

Free Floating Piston Pin Aluminum Die Cast Head Totally Sealed Prelubricated Bearings Cast-Iron Crankcase One-Piece Ductile Iron Connecting Rods Aluminum Pistons Ductile Iron Pulley Hard-Coat Anodized Aluminum Cylinder One Piece, Counterweighted High Strength Ductile Iron Crankshaft 5

QUINCY QRDT, TWO-STAGE • Clean, oil-less air • Quincy dependability • Setting the oil-less standard CLEAN, OIL-LESS AIR When your application requires clean air, “nearly clean” isn’t clean enough. You need absolutely clean air without a hint of oil. To meet that standard, you need a compressor that operates without any oil – not a single drop – exactly why we built the Quincy QRDT. The QRDT will supply the oil-less air that hospitals, laboratories and pharmaceutical applications require. What’s more, the QRDT uses graphite gaskets, so the compressor complies with EPA health standards....

OIL-LESS COMPRESSORS STANDARD FEATURES,BASIC COMPRESSOR • Cast-iron crankcase and main bearing carrier for strength and durability • One-piece ductile iron connecting rods for strength and rigidity • Totally sealed, prelubricated bearings for long life • Hard-coat anodized and precision-honed aluminum cylinders and aluminum heads with deep fins for efficient heat dissipation • Aluminum pistons facilitate heat dissipation and balancing • All-polymeric reinforced PTFE piston and rider rings for low friction and precise piston orientation • Hard-coated and Teflon™ impregnated valve plates for...

MAINTENANCE SCHEDULES (Factory Packages Only) The QRDT compressor is designed for maintenance-free operation for three years or the following hours of operation when operated at the listed maximum pressures: 100 PSIG ……………… 10,000 Hours 125 PSIG ……………..… 8,000 Hours 150 PSIG ……………..… 6,000 Hours This maintenance schedule applies to the compression and rider rings, low-pressure and high pressure wrist pins, connecting rods and main shaft sealed bearings, and the valve assemblies. We reserve the right to change specifications without liability, without advance notice, and without incurring...

Integral Aircooled Intercooler and 15¢ª Approach Aftercooler Solenoid Actuated Head Unloaders Hard-Coated Teflon™ Impregnated Valve Plates Interstage Pressure Relief Valve Intercooler Discharge Shaft Driven Cooling Fan Aftercooler Inlet Basic Compressor Sub-Base H.A.T. Shutdown (1per cylinder) Intake Filter Silencers Aftercooler Moisture Drain Sealed Prelubricated Piston Pin Needle Bearing PTFE Compression Rings PTFE Rider Ring QRDT - FOUR CYLINDER CUTAWAY 11

quincycompressor.comQPNC-500quincycompressor.comQDHT-1000quincycompressor.comAir Quality ClassificationISO 8573.1 WSNBulk LiquidDP1Quincy Rotary ScrewWet Receiver1gal/CFMand/orMistEliminatorDP2Dry Receiver5gal/CFMCSN1 Micron0.1 PPMDP3CPN0.01 Micron0.01 PPMDP5ACN0.003 PPMVapor & OdorsSolidsMicronISOPDPISOPPMISO0.011+38°F40.01110.77380.011+38°F40.003111.881412-40°F20.0119.26340.011-40°F20.003110.371012+50°F60.0127.85380.011+50°F60.003110.068912-40°F20.0119.26340.011-100°F10.001114.2979MoistureOilpsiMbarRefrigerated Air DryerQPNC Non-CyclingQPCD CyclingDP4WetSystemAvg. DPQuincy Reciprocating...
