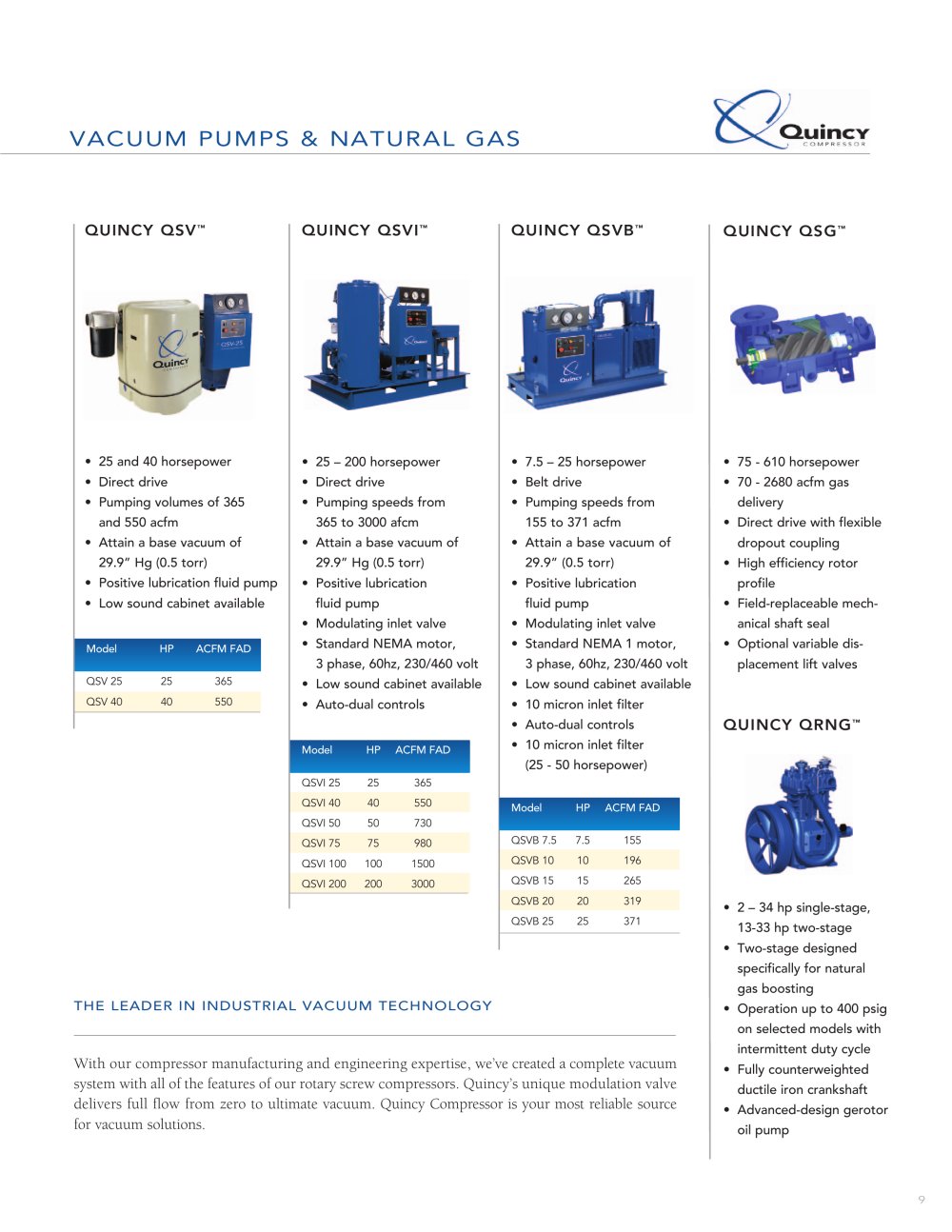

9 VACUUM PUMPS & NATURAL GAS With our compressor manufacturing and engineering expertise, we’ve created a complete vacuum system with all of the features of our rotary screw compressors. Quincy’s unique modulation valve delivers full flow from zero to ultimate vacuum. Quincy Compressor is your most reliable source for vacuum solutions. THE LEADER IN INDUSTRIAL VACUUM TECHNOLOGY Model HP ACFM FAD QSV 25 25 365 QSV 40 40 550 • 7.5 – 25 horsepower • Belt drive • Pumping speeds from 155 to 371 acfm • Attain a base vacuum of 29.9” (0.5 torr) • Positive lubrication fluid pump • Modulating inlet valve • Standard NEMA 1 motor, 3 phase, 60hz, 230/460 volt • Low sound cabinet available • 10 micron inlet filter • Auto-dual controls • 10 micron inlet filter (25 - 50 horsepower) QUINCY QSVB™ QUINCY QSVI™ Model HP ACFM FAD QSVB 7.5 7.5 155 QSVB 10 10 196 QSVB 15 15 265 QSVB 20 20 319 QSVB 25 25 371 Model HP ACFM FAD QSVI 25 25 365 QSVI 40 40 550 QSVI 50 50 730 QSVI 75 75 980 QSVI 100 100 1500 QSVI 200 200 3000 • 25 – 200 horsepower • Direct drive • Pumping speeds from 365 to 3000 afcm • Attain a base vacuum of 29.9” Hg (0.5 torr) • Positive lubrication fluid pump • Modulating inlet valve • Standard NEMA motor, 3 phase, 60hz, 230/460 volt • Low sound cabinet available • Auto-dual controls QUINCY QSV™ • 25 and 40 horsepower • Direct drive • Pumping volumes of 365 and 550 acfm • Attain a base vacuum of 29.9” Hg (0.5 torr) • Positive lubrication fluid pump • Low sound cabinet available QUINCY QSG™ • 75 - 610 horsepower • 70 - 2680 acfm gas delivery • Direct drive with flexible dropout coupling • High efficiency rotor profile • Field-replaceable mech- anical shaft seal • Optional variable dis- placement lift valves QUINCY QRNG™ • 2 – 34 hp single-stage, 13-33 hp two-stage • Two-stage designed specifically for natural gas boosting • Operation up to 400 psig on selected models with intermittent duty cycle • Fully counterweighted ductile iron crankshaft • Advanced-design gerotor oil pump
