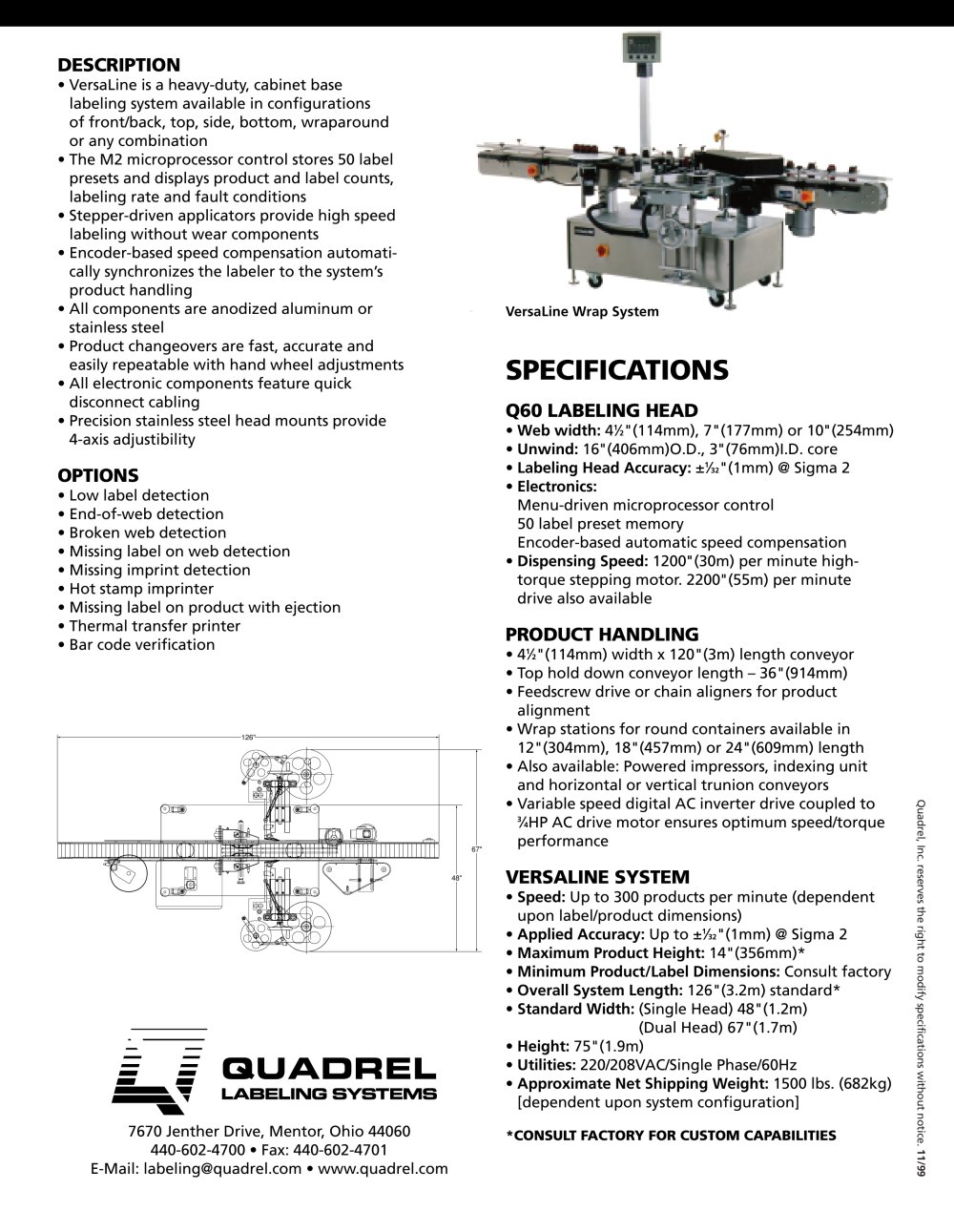

VERSALINE 2/2/00 5:36 PM Page 2
VersaLine Wrap System
1 â
2 "(114mm), 7"(177mm) or 10"(254mm) Unwind: 16"(406mm)O.D., 3"(76mm)I.D. core
1 â
32 "(1mm) @ Sigma 2 Low label detection End-of-web detection Broken web detection Missing label on web detection Missing imprint detection Hot stamp imprinter Missing label on product with ejection Thermal transfer printer Bar code verification Electronics: Dispensing Speed: 1200"(30m) per minute high-torque stepping motor. 2200"(55m) per minute drive also available Menu-driven microprocessor control 50 label preset memory Encoder-based automatic speed compensation
1 â
2 "(114mm) width x 120"(3m) length conveyor Top hold down conveyor length 36"(914mm) Feedscrew drive or chain aligners for product alignment Wrap stations for round containers available in12"(304mm), 18"(457mm) or 24"(609mm) length Also available: Powered impressors, indexing unitand horizontal or vertical trunion conveyors Variable speed digital AC inverter drive coupled to
126" Quadrel, Inc. reserves the right to modify specifications without notice. 3 â
4 HP AC drive motor ensures optimum speed/torqueperformance
67" 48"
1 â
32 "(1mm) @ Sigma 2 Maximum Product Height: 14"(356mm)* Minimum Product/Label Dimensions: Consult factory Overall System Length: 126"(3.2m) standard* Standard Width: (Single Head) 48"(1.2m)(Dual Head) 67"(1.7m) Height: 75"(1.9m) Utilities: 220/208VAC/Single Phase/60Hz Approximate Net Shipping Weight: 1500 lbs. (682kg)[dependent upon system configuration] 7670 Jenther Drive, Mentor, Ohio 44060440-602-4700 Fax: 440-602-4701E-Mail: labeling@quadrel.com www.quadrel.com
*CONSULT FACTORY FOR CUSTOM CAPABILITIES 11/99
DESCRIPTION
VersaLine is a heavy-duty, cabinet base labeling system available in configurations of front/back, top, side, bottom, wraparound or any combination The M2 microprocessor control stores 50 labelpresets and displays product and label counts, labeling rate and fault conditions Stepper-driven applicators provide high speedlabeling without wear components Encoder-based speed compensation automati-cally synchronizes the labeler to the systems product handling All components are anodized aluminum orstainless steel Product changeovers are fast, accurate andeasily repeatable with hand wheel adjustments All electronic components feature quick disconnect cabling Precision stainless steel head mounts provide 4-axis adjustibilityVersaLine Wrap System
VERSALINE (Cabinet-Based) in line labeling system - 16366 SPECIFICATIONS
Q60 LABELING HEAD
Web width: 41 â
2 "(114mm), 7"(177mm) or 10"(254mm) Unwind: 16"(406mm)O.D., 3"(76mm)I.D. core
OPTIONS
Labeling Head Accuracy: ±1 â
32 "(1mm) @ Sigma 2 Low label detection End-of-web detection Broken web detection Missing label on web detection Missing imprint detection Hot stamp imprinter Missing label on product with ejection Thermal transfer printer Bar code verification Electronics: Dispensing Speed: 1200"(30m) per minute high-torque stepping motor. 2200"(55m) per minute drive also available Menu-driven microprocessor control 50 label preset memory Encoder-based automatic speed compensation
PRODUCT HANDLING
41 â
2 "(114mm) width x 120"(3m) length conveyor Top hold down conveyor length 36"(914mm) Feedscrew drive or chain aligners for product alignment Wrap stations for round containers available in12"(304mm), 18"(457mm) or 24"(609mm) length Also available: Powered impressors, indexing unitand horizontal or vertical trunion conveyors Variable speed digital AC inverter drive coupled to
126" Quadrel, Inc. reserves the right to modify specifications without notice. 3 â
4 HP AC drive motor ensures optimum speed/torqueperformance
67" 48"
VERSALINE SYSTEM
Speed: Up to 300 products per minute (dependentupon label/product dimensions) Applied Accuracy: Up to ±1 â
32 "(1mm) @ Sigma 2 Maximum Product Height: 14"(356mm)* Minimum Product/Label Dimensions: Consult factory Overall System Length: 126"(3.2m) standard* Standard Width: (Single Head) 48"(1.2m)(Dual Head) 67"(1.7m) Height: 75"(1.9m) Utilities: 220/208VAC/Single Phase/60Hz Approximate Net Shipping Weight: 1500 lbs. (682kg)[dependent upon system configuration] 7670 Jenther Drive, Mentor, Ohio 44060440-602-4700 Fax: 440-602-4701E-Mail: labeling@quadrel.com www.quadrel.com
*CONSULT FACTORY FOR CUSTOM CAPABILITIES 11/99
