TL5 LARGE DIAMETER WRAP LABELING SYSTEM - Quadrel Labeling Systems - #2

Text version of the page

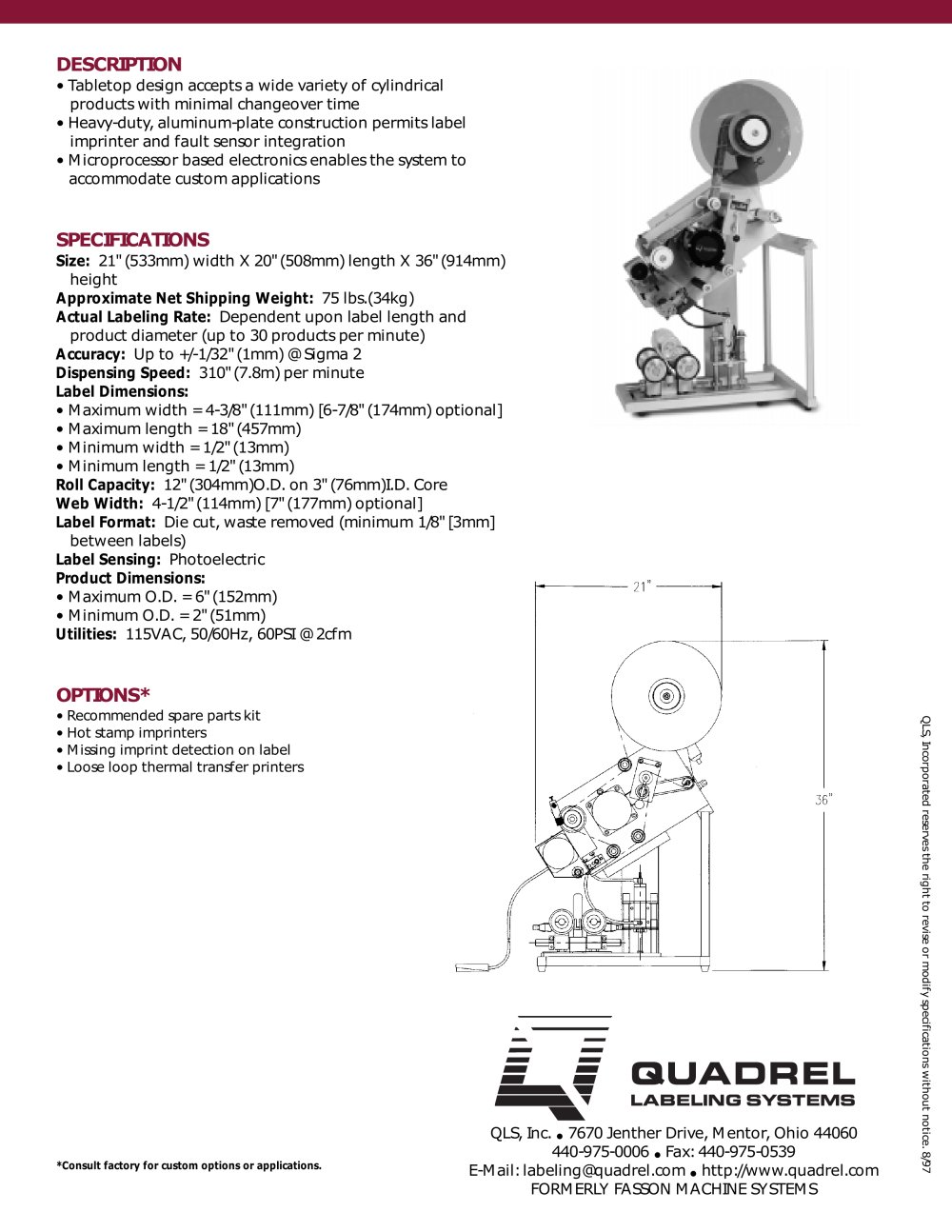

VERSALINE QLS, Inc. • 7670 Jenther Drive, Mentor, Ohio 44060 440-975-0006 • Fax: 440-975-0539 E-Mail: labeling@quadrel.com • http://www.quadrel.com FORMERLY FASSON MACHINE SYSTEMS QLS, Incorporated reserves the right to revise or modify specifications without notice. 8/97 *Consult factory for custom options or applications. DESCRIPTION • Tabletop design accepts a wide variety of cylindrical products with minimal changeover time • Heavy-duty, aluminum-plate construction permits label imprinter and fault sensor integration • Microprocessor based electronics enables the system to accommodate custom applications SPECIFICATIONS Size: 21"(533mm) width X 20"(508mm) length X 36"(914mm) height Approximate Net Shipping Weight: 75 lbs.(34kg) Actual Labeling Rate: Dependent upon label length and product diameter (up to 30 products per minute) Accuracy: Up to +/-1/32"(1mm) @ Sigma 2 Dispensing Speed: 310"(7.8m) per minute Label Dimensions: • Maximum width = 4-3/8"(111mm) [6-7/8"(174mm) optional] • Maximum length = 18"(457mm) • Minimum width = 1/2"(13mm) • Minimum length = 1/2"(13mm) Roll Capacity: 12"(304mm)O.D. on 3"(76mm)I.D. Core Web Width: 4-1/2"(114mm) [7"(177mm) optional] Label Format: Die cut, waste removed (minimum 1/8"[3mm] between labels) Label Sensing: Photoelectric Product Dimensions: • Maximum O.D. = 6"(152mm) • Minimum O.D. = 2"(51mm) Utilities: 115VAC, 50/60Hz, 60PSI @ 2cfm OPTIONS* • Recommended spare parts kit • Hot stamp imprinters • Missing imprint detection on label • Loose loop thermal transfer printers
