Q60 WIPE-ON APPLICATOR label applicator - Quadrel Labeling Systems - #2

Text version of the page

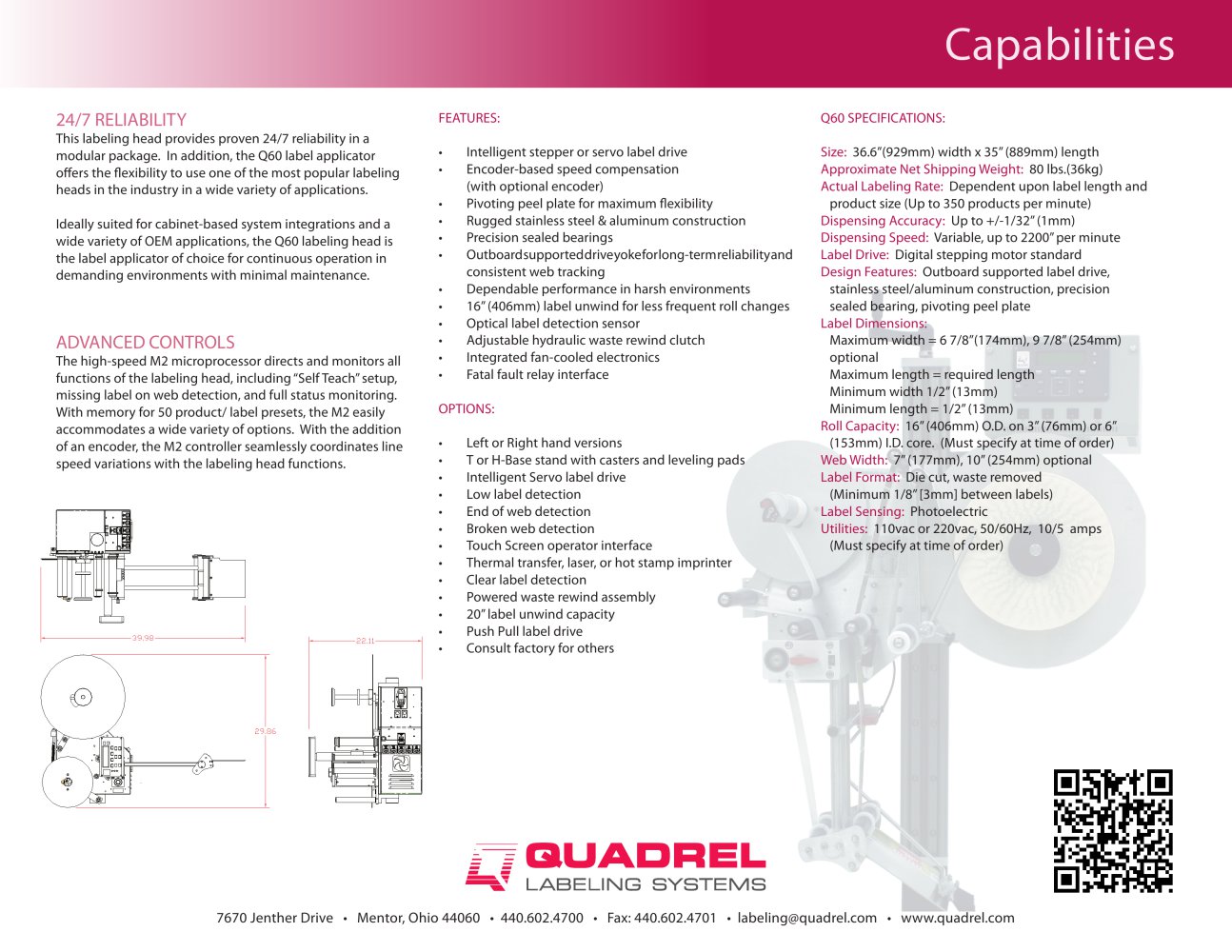

7670 Jenther Drive, Mentor, Ohio 44060 440-602-4700 • Fax: 440-602-4701 E-Mail: labeling@quadrel.com • www.quadrel.com Q60 with Hot Stamp Imprinter and NEMA 4X Electronics M2 MICROPROCESSOR CONTROL • Memory for 50 label format presets • Password protected operation • Onboard diagnostics • Display in either English or Metric units • Product counter, label counter, elapsed hour meter, dispense speed and product per minute display • Soft-touch keypad • Rate compensation synchronizes label to changing line speeds • All electronics are remote-mounted for convenient service and minimal risk of exposure to moisture STEPPING MOTOR DRIVE • Increases speed and accuracy • Minimizes downtime/maintenance • Eliminates clutch/brake wear components HEAVY-DUTY DESIGN • Rugged stainless steel/aluminum construction • Precision, sealed bearings • Outboard supported label drive for long-term reliability • Dependable performance in harsh environments • 16''(406mm) unwind for less frequent roll changes SPECIFICATIONS Size: 30''(762mm) width x 32''(813mm) length x 20''(508mm) height Approximate Net Shipping Weight: 100 lbs. (45kg) Actual Labeling Rate: Dependent upon label length and product size (up to 250 products per minute) Accuracy: ±132''(1mm) @ Sigma 2 Dispensing Speed: Variable, up to 1200''(30m) per minute (2400''[60m] optional) Label Dimensions: • Maximum width = 438''(111mm) [678''(174mm), 978''(251mm) optional] • Maximum length = required length • Minimum width = 12''(13mm) • Minimum length = 12''(13mm) Roll Capacity: 16''(406mm) O.D. on 3''(76mm) I.D. core Web Width: 412''(114mm) [7''(177mm), 10''(254mm) optional] Label Format: Die cut, waste removed (minimum 18''[3mm] between labels) Label Sensing: Photoelectric Utilities: 115/220VAC, 50/60Hz, 5AMPS@115VAC OPTIONS* • Recommended spare parts kit • Right or left-hand versions • Line speed compensation (requires optional encoder package) • Low label detection • End-of-web detection • Broken web detection • Adjustable support stand • Hot stamp imprinter • Missing imprint detection on label • Loose-loop thermal transfer printers • Tamp unit 32" 30" Quadrel, Inc. reserves the right to modify specifications without notice. 11/99 *CONSULT FACTORY FOR CUSTOM CAPABILITIES
