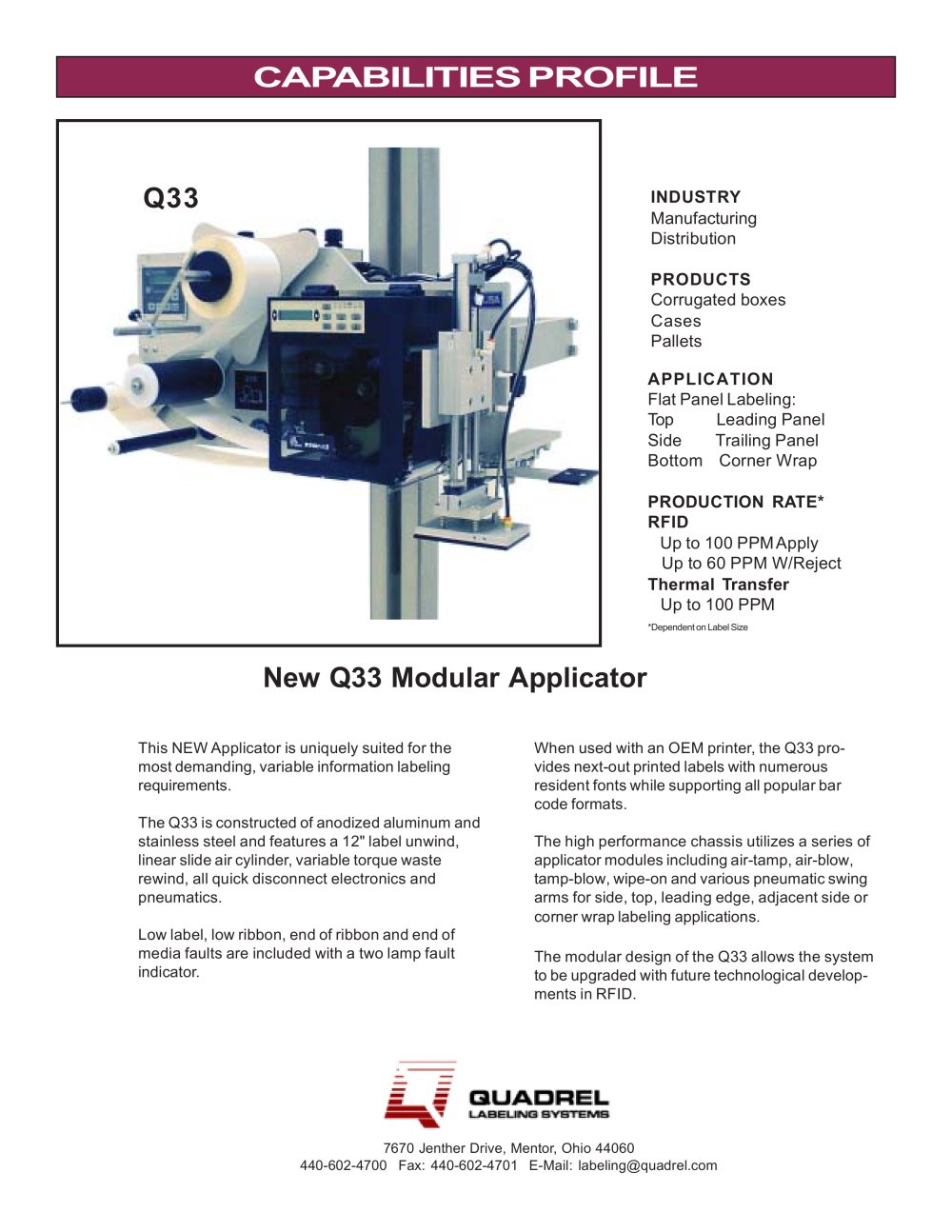

CAPABILITIES PROFILE Q33

INDUSTRY ManufacturingDistribution PRODUCTS Corrugated boxesCasesPallets APPLICATION Flat Panel Labeling: Top Leading PanelSide Trailing PanelBottom Corner Wrap PRODUCTION RATE*RFID Up to 100 PPM Apply Up to 60 PPM W/Reject Thermal Transfer Up to 100 PPM
*Dependent on Label Size

New Q33 Modular Applicator

This NEW Applicator is uniquely suited for themost demanding, variable information labeling requirements.The Q33 is constructed of anodized aluminum andstainless steel and features a 12" label unwind, linear slide air cylinder, variable torque waste rewind, all quick disconnect electronics and pneumatics.Low label, low ribbon, end of ribbon and end ofmedia faults are included with a two lamp fault indicator. When used with an OEM printer, the Q33 pro-vides next-out printed labels with numerous resident fonts while supporting all popular bar code formats.The high performance chassis utilizes a series ofapplicator modules including air-tamp, air-blow, tamp-blow, wipe-on and various pneumatic swing arms for side, top, leading edge, adjacent side orcorner wrap labeling applications.The modular design of the Q33 allows the systemto be upgraded with future technological develop- ments in RFID. 7670 Jenther Drive, Mentor, Ohio 44060440-602-4700 Fax: 440-602-4701 E-Mail: labeling@quadrel.com
