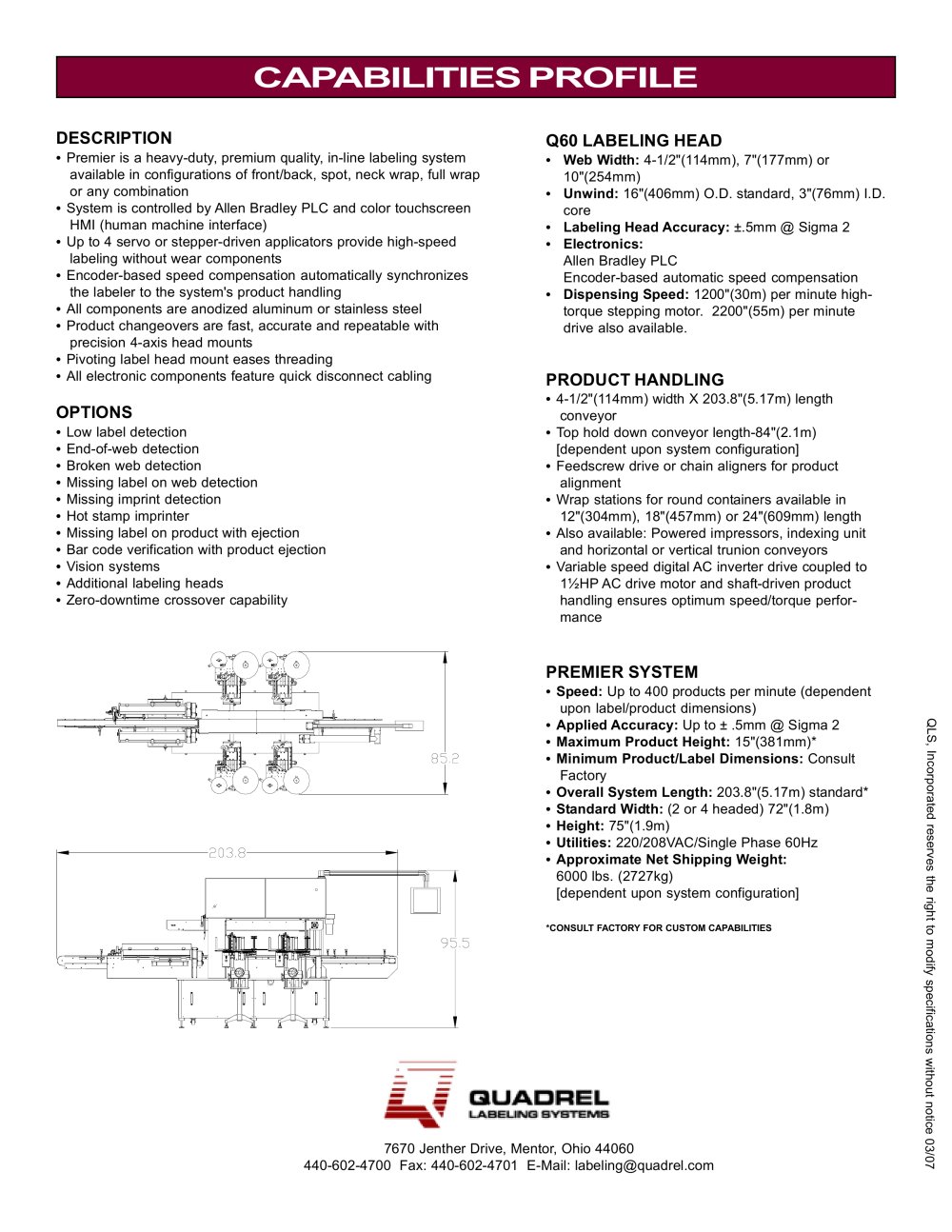

CAPABILITIES PROFILE

DESCRIPTION Q60 LABELING HEAD

• Premier is a heavy-duty, premium quality, in-line labeling systemavailable in configurations of front/back, spot, neck wrap, full wrap or any combination • Web Width: 4-1/2"(114mm), 7"(177mm) or10"(254mm) • System is controlled by Allen Bradley PLC and color touchscreenHMI (human machine interface) • Unwind: 16"(406mm) O.D. standard, 3"(76mm) I.D.core • Up to 4 servo or stepper-driven applicators provide high-speedlabeling without wear components • Labeling Head Accuracy: ±.5mm @ Sigma 2 • Encoder-based speed compensation automatically synchronizesthe labeler to the system's product handling • Electronics: • Allen Bradley PLC Encoder-based automatic speed compensation Dispensing Speed: 1200"(30m) per minute high-torque stepping motor. 2200"(55m) per minute drive also available. • All components are anodized aluminum or stainless steel • Product changeovers are fast, accurate and repeatable withprecision 4-axis head mounts • Pivoting label head mount eases threading • All electronic components feature quick disconnect cabling

PRODUCT HANDLING

• 4-1/2"(114mm) width X 203.8"(5.17m) lengthconveyor

OPTIONS

• Low label detection • Top hold down conveyor length-84"(2.1m)[dependent upon system configuration] • End-of-web detection • Broken web detection • Feedscrew drive or chain aligners for productalignment • Missing label on web detection • Missing imprint detection • Wrap stations for round containers available in12"(304mm), 18"(457mm) or 24"(609mm) length • Hot stamp imprinter • Missing label on product with ejection • Also available: Powered impressors, indexing unitand horizontal or vertical trunion conveyors • Bar code verification with product ejection • Vision systems • Variable speed digital AC inverter drive coupled to1½HP AC drive motor and shaft-driven product handling ensures optimum speed/torque perfor-mance • Additional labeling heads • Zero-downtime crossover capability

PREMIER SYSTEM

• Speed: Up to 400 products per minute (dependentupon label/product dimensions)
QLS, Incorporated reserves the right to modify specifications without notice 03/07 • Applied Accuracy: Up to ± .5mm @ Sigma 2 • Maximum Product Height: 15"(381mm)* • Minimum Product/Label Dimensions: ConsultFactory • Overall System Length: 203.8"(5.17m) standard* • Standard Width: (2 or 4 headed) 72"(1.8m) • Height: 75"(1.9m) • Utilities: 220/208VAC/Single Phase 60Hz • Approximate Net Shipping Weight: 6000 lbs. (2727kg) [dependent upon system configuration]
*CONSULT FACTORY FOR CUSTOM CAPABILITIES 7670 Jenther Drive, Mentor, Ohio 44060440-602-4700 Fax: 440-602-4701 E-Mail: labeling@quadrel.com
