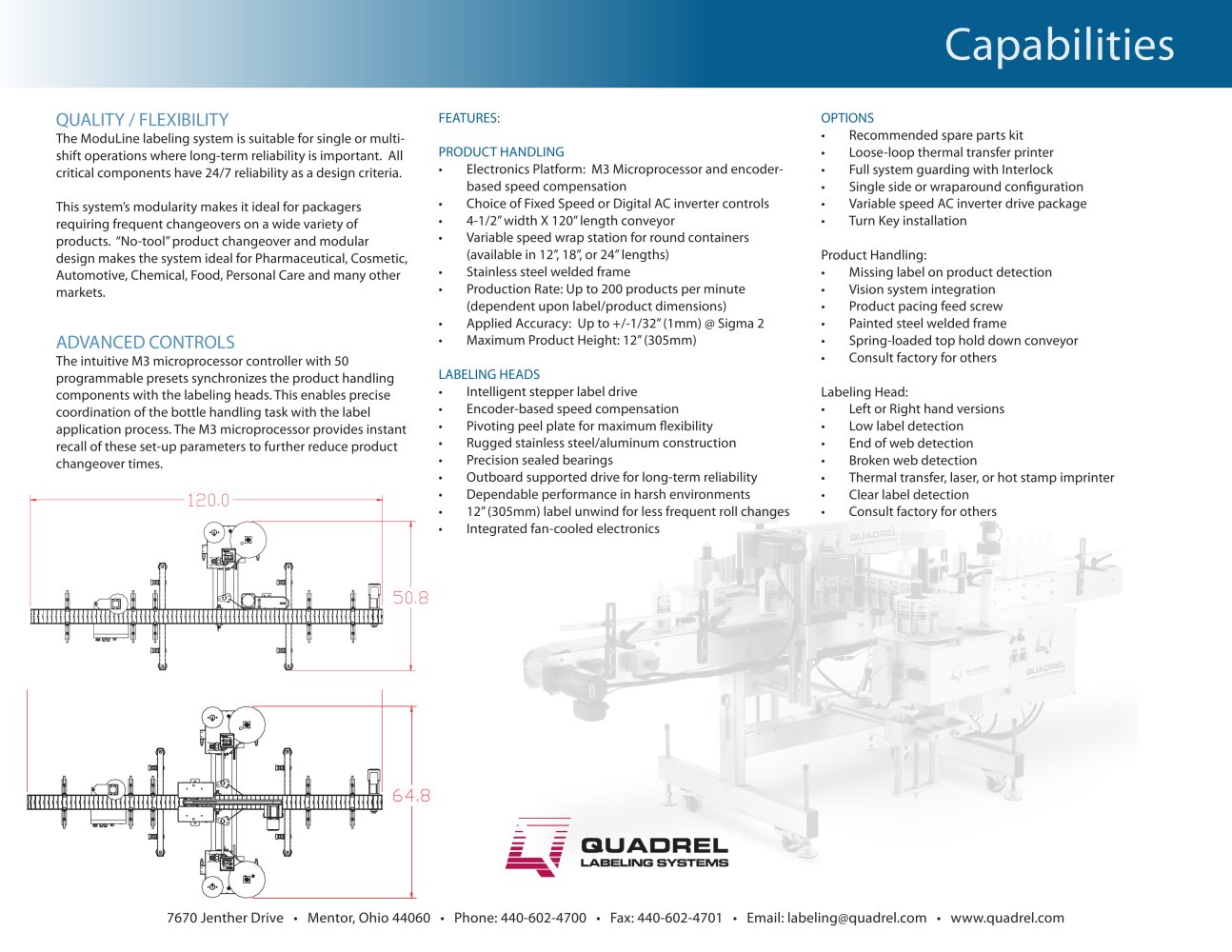

CAPABILITIES PROFILE

SPECIFICATIONS

MODULINE

Q55 LABELING HEAD

Speed: Up to 140 products per minute (dependentupon label/product dimensions) Accuracy: Up to +/-1/32" (1mm) Dispensing Speed: Label Dimensions: Roll Capacity: Web Width: 7" (177mm) 12" (304mm) O.D. on 3" (76mm) I.D.core Variable, up to 1000"(25m) perminute Applied Accuracy: Up to +/- 1/32" (1mm) @ Sigma 2 Label Format: Maximum width = 6 7/8"(174mm) Minimum width 1/2" (13mm) Minimum length = 1/2" (13mm) Die cut, waste removed (minimum 1/8"[3mm] between labels) Maximum Product Height: 14" (356mm)* Minimum Product/Label Dimensions: Consult factory Label Sensing: Photoelectric Overall System Length: 120" (3.05m) standard* Utilities: 110v AC, 50/60Hz, 10amps@ Standard Width: Utilities: 110/208VAC/Single Phase/60Hz (Single Head) 48" (1.2m) (Dual Head) 86.7" (2.2m) Approximate Net Shipping Weight: 1500 lbs. (682kg)(dependent upon system configuration)
*CONSULT FACTORY FOR CUSTOM CAPABILITIES OPTIONS ?Fixed speed AC motors: conveyor speed 480" per minute (Optional variable speed package: up to 1000" per minute) ?4-1/2" width x 120" length conveyor ?Chain aligners for product alignment ?Wrap station for round containers available in 12", 18"or 24" length Variable AC speed package: Up to 1000" per minuteRecommended spare parts kit Right or left-hand versions Low label detection End of web detection Broken web detection Hot Stamp Imprinter Clear label sensor Missing imprint detection on label Loose loop thermal transfer printers PRODUCT HANDLING M3.0 MICROPROCESSOR CONTROL •Flash memory, computer programmable ?Self teach feature: instant setup and changeover ?50 label presets ?Password protected ?Display in English or Metric units ?Onboard Diagnostics ?Product counter, label counter, elapsed hour meter,dispense speed and product per minute display?Soft-touch keypad Q55 Label Applicator Round Product Labeling System
