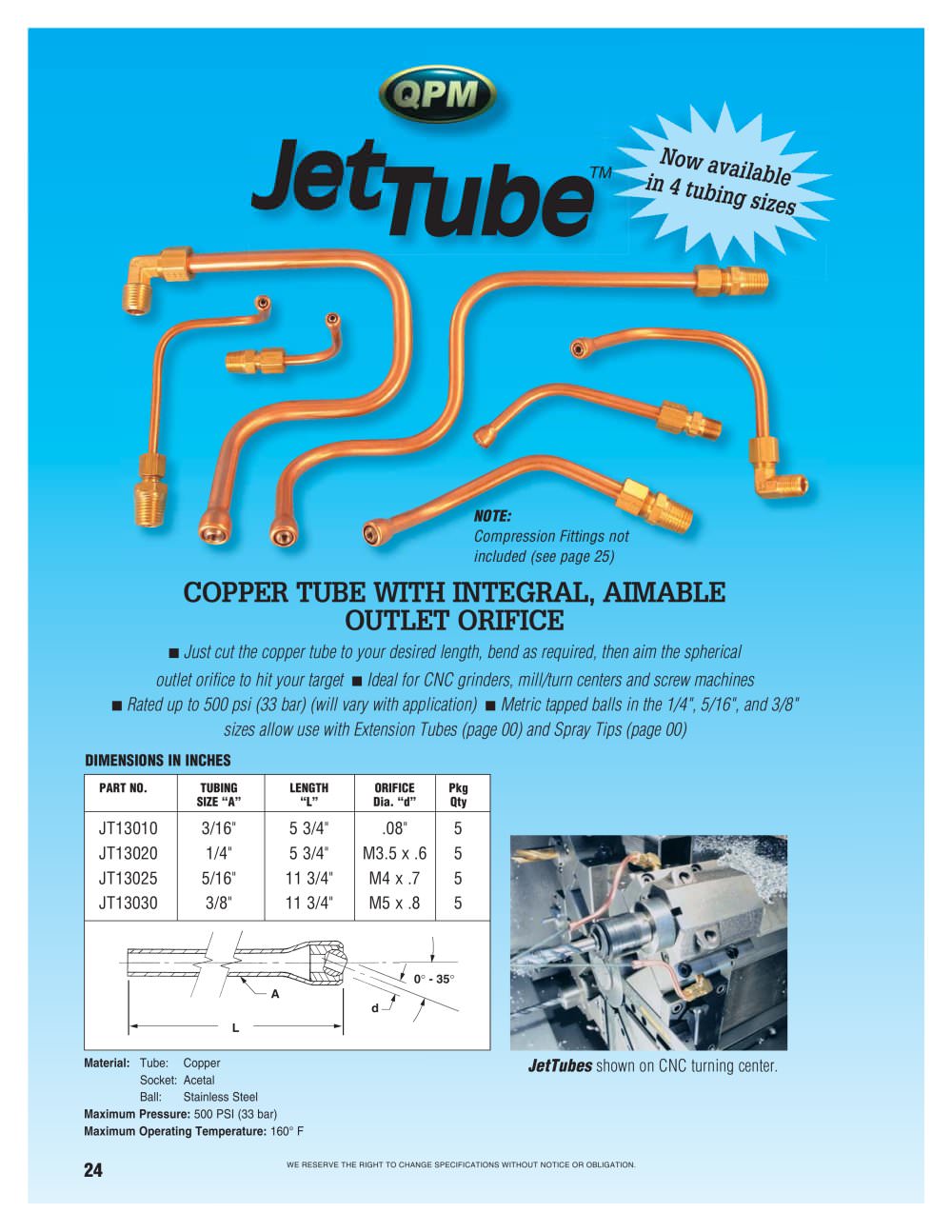

JET TUBE - 27006 Now availablein 4 tubing sizes

NOTE: Compression Fittings not included (see page 25)

COPPER TUBE WITH INTEGRAL, AIMABLE OUTLET ORIFICE

N

Just cut the copper tube to your desired length, bend as required, then aim the spherical outlet orifice to hit your target

N

Ideal for CNC grinders, mill/turn centers and screw machines

N

Rated up to 500 psi (33 bar) (will vary with application)

N

Metric tapped balls in the 1/4", 5/16", and 3/8" sizes allow use with Extension Tubes (page 00) and Spray Tips (page 00)

DIMENSIONS IN INCHES

PARTNO.TUBINGLENGTH ORIFICEPkgSIZE “A”“L”Dia. “d”Qty

JT13010 3/16" 53/4" .08" 5JT13020 1/4" 53/4" M3.5x.6 5JT13025 5/16" 113/4" M4x.7 5JT13030 3/8" 113/4" M5x.8 5

o - 35 o LAd0 MaximumPressure: 500 PSI (33 bar) Material: MaximumOperatingTemperature: Tube: Copper Socket: Acetal Ball:StainlessSteel 160° F

JetTubes shown on CNC turning center.
