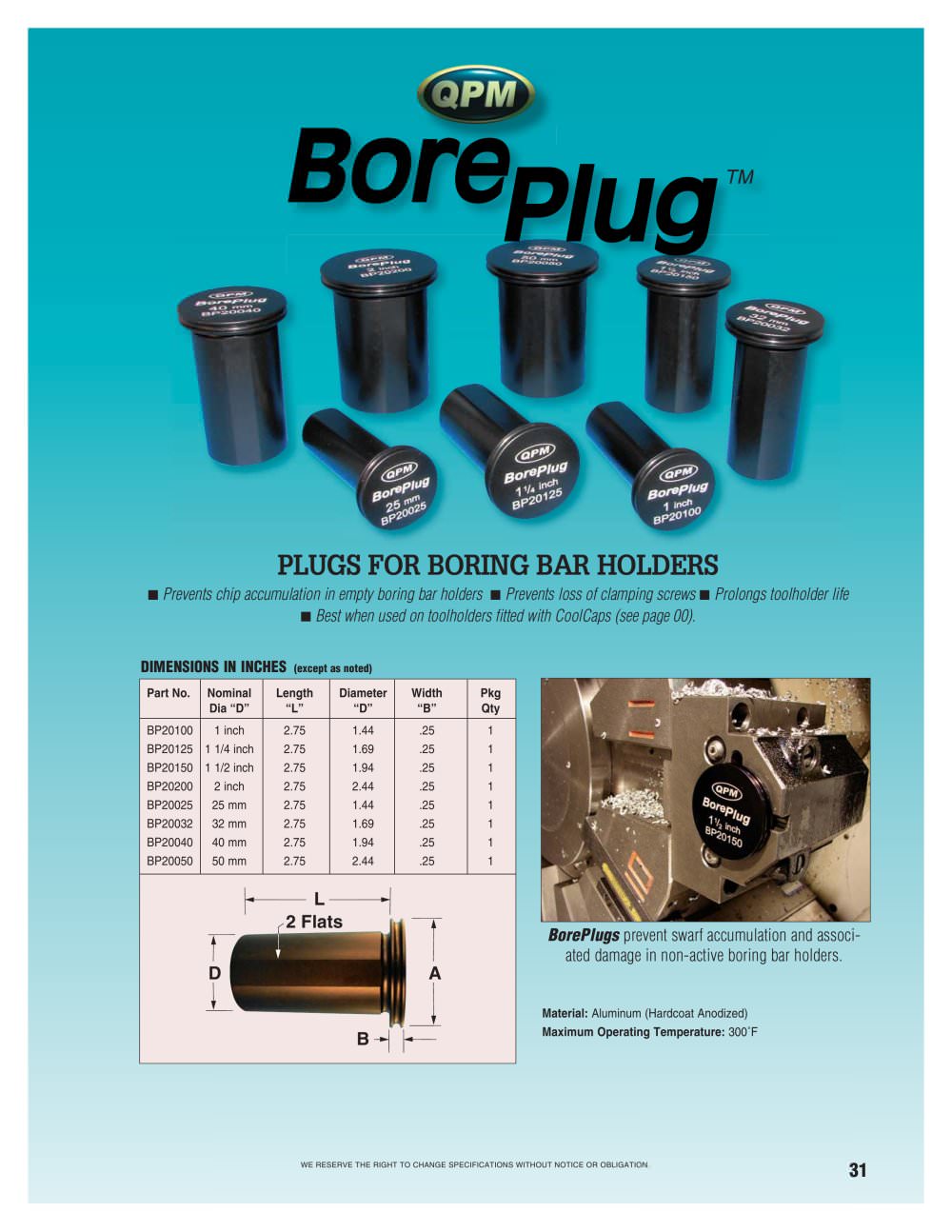

T M PLUGS FOR BORING BAR HOLDERS

N

Prevents chip accumulation in empty boring bar holders

N

Prevents loss of clamping screws

N

Prolongs toolholder life

N

Best when used on toolholders fitted with CoolCaps (see page 00). DIMENSIONS IN INCHES

(except as noted) Part No.NominalLengthDiameterWidthPkgDia “D”“L”“D”“B”Qty BP20100 1inch 2.75 1.44 .25 1BP20125 11/4inch 2.75 1.69 .25 1 BP20150 11/2inch 2.75 1.94 .25 1 BP20200 2inch 2.75 2.44 .25 1 BP20025 25mm 2.75 1.44 .25 1 BP20032 32mm 2.75 1.69 .25 1 BP20040 40mm 2.75 1.94 .25 1 BP20050 50mm 2.75 2.44 .25 1

LAB 2 Flats

BorePlugs prevent swarf accumulation and associ-ated damage in non-active boring bar holders.

D

Material: Aluminum(HardcoatAnodized) Maximum Operating Temperature: 300ËšF
WERESERVETHERIGHTTOCHANGESPECIFICATIONS WITHOUTNOTICEOROBLIGATION.
