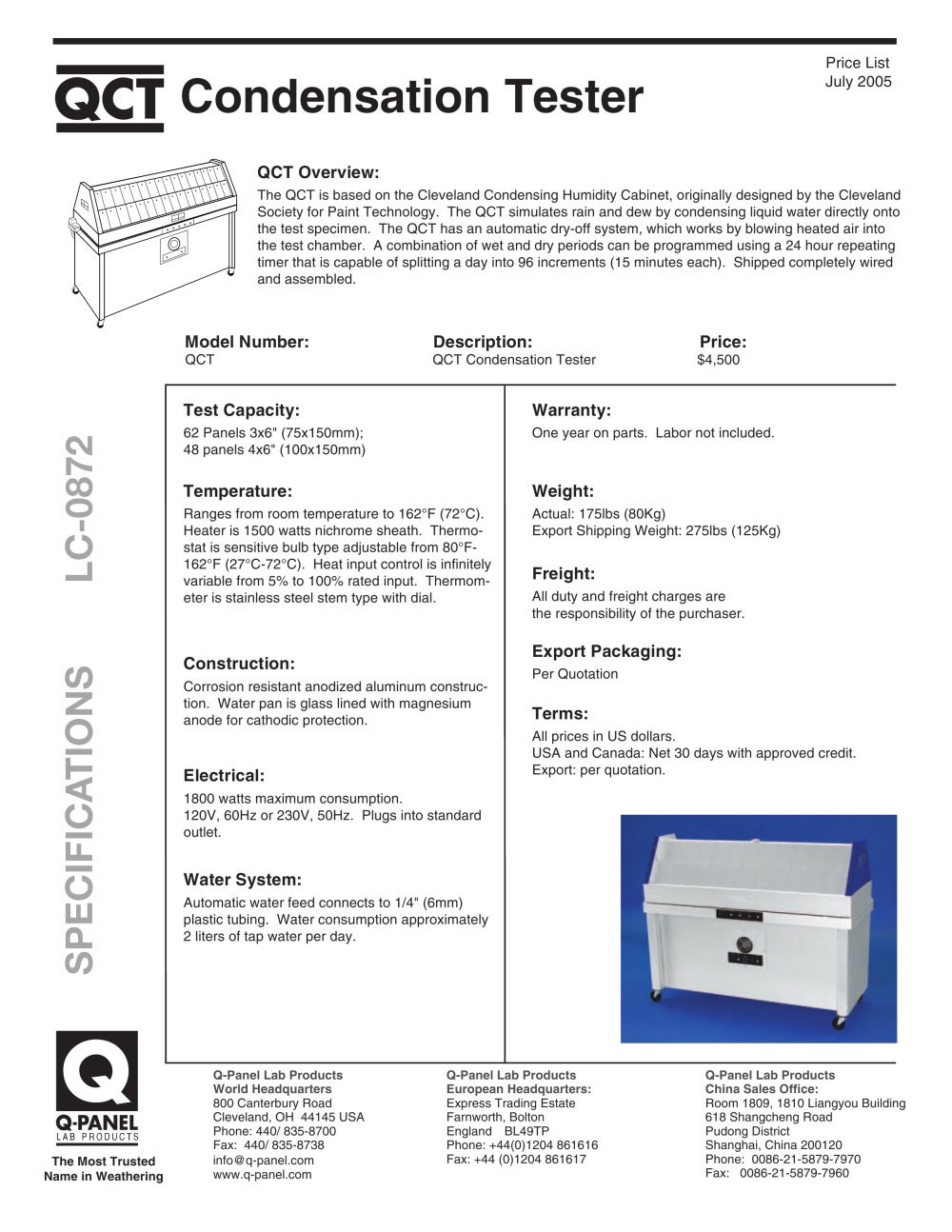

| Price List July 2005 | |||||||||||||||||||||||||||
| QCT Condensation Tester | |||||||||||||||||||||||||||
| QCT Overview: The QCT is based on the Cleveland Condensing Humidity Cabinet, originally designed by the Cleveland Society for Paint Technology. The QCT simulates rain and dew by condensing liquid water directly onto the test specimen. The QCT has an automatic dry-off system, which works by blowing heated air into the test chamber. A combination of wet and dry periods can be programmed using a 24 hour repeating timer that is capable of splitting a day into 96 increments (15 minutes each). Shipped completely wired and assembled. | |||||||||||||||||||||||||||
| Model Number: Description: Price: QCT QCT Condensation Tester $4,500 | |||||||||||||||||||||||||||
| Test Capacity: 62 Panels 3x6" (75x150mm); 48 panels 4x6" (100x150mm) Temperature: Ranges from room temperature to 162°F (72°C). Heater is 1500 watts nichrome sheath. Thermostat is sensitive bulb type adjustable from 80°F-162°F (27°C-72°C). Heat input control is infinitely variable from 5% to 100% rated input. Thermometer is stainless steel stem type with dial. | |||||||||||||||||||||||||||
| Warranty: One year on parts. Labor not included. | |||||||||||||||||||||||||||
| Weight: Actual: 175lbs (80Kg) Export Shipping Weight: 275lbs (125Kg) Freight: All duty and freight charges are the responsibility of the purchaser. Export Packaging: Per Quotation Terms: All prices in US dollars. USA and Canada: Net 30 days with approved credit. Export: per quotation. | |||||||||||||||||||||||||||
| Construction: Corrosion resistant anodized aluminum construction. Water pan is glass lined with magnesium anode for cathodic protection. | |||||||||||||||||||||||||||
| Electrical: 1800 watts maximum consumption. 120V, 60Hz or 230V, 50Hz. Plugs into standard outlet. Water System: Automatic water feed connects to 1/4" (6mm) plastic tubing. Water consumption approximately 2 liters of tap water per day. | |||||||||||||||||||||||||||
| Q-Panel Lab Products World Headquarters 800 Canterbury Road Cleveland, OH 44145 USA Phone: 440/ 835-8700 Fax: 440/ 835-8738 info@q-panel.com www.q-panel.com | Q-Panel Lab Products European Headquarters: Express Trading Estate Farnworth, Bolton England BL49TP Phone: +44(0)1204 861616 Fax: +44 (0)1204 861617 | Q-Panel Lab Products China Sales Office: Room 1809, 1810 Liangyou Building 618 Shangcheng Road Pudong District Shanghai, China 200120 Phone: 0086-21-5879-7970 Fax: 0086-21-5879-7960 | |||||||||||||||||||||||||
| The Most Trusted Name in Weathering | |||||||||||||||||||||||||||
