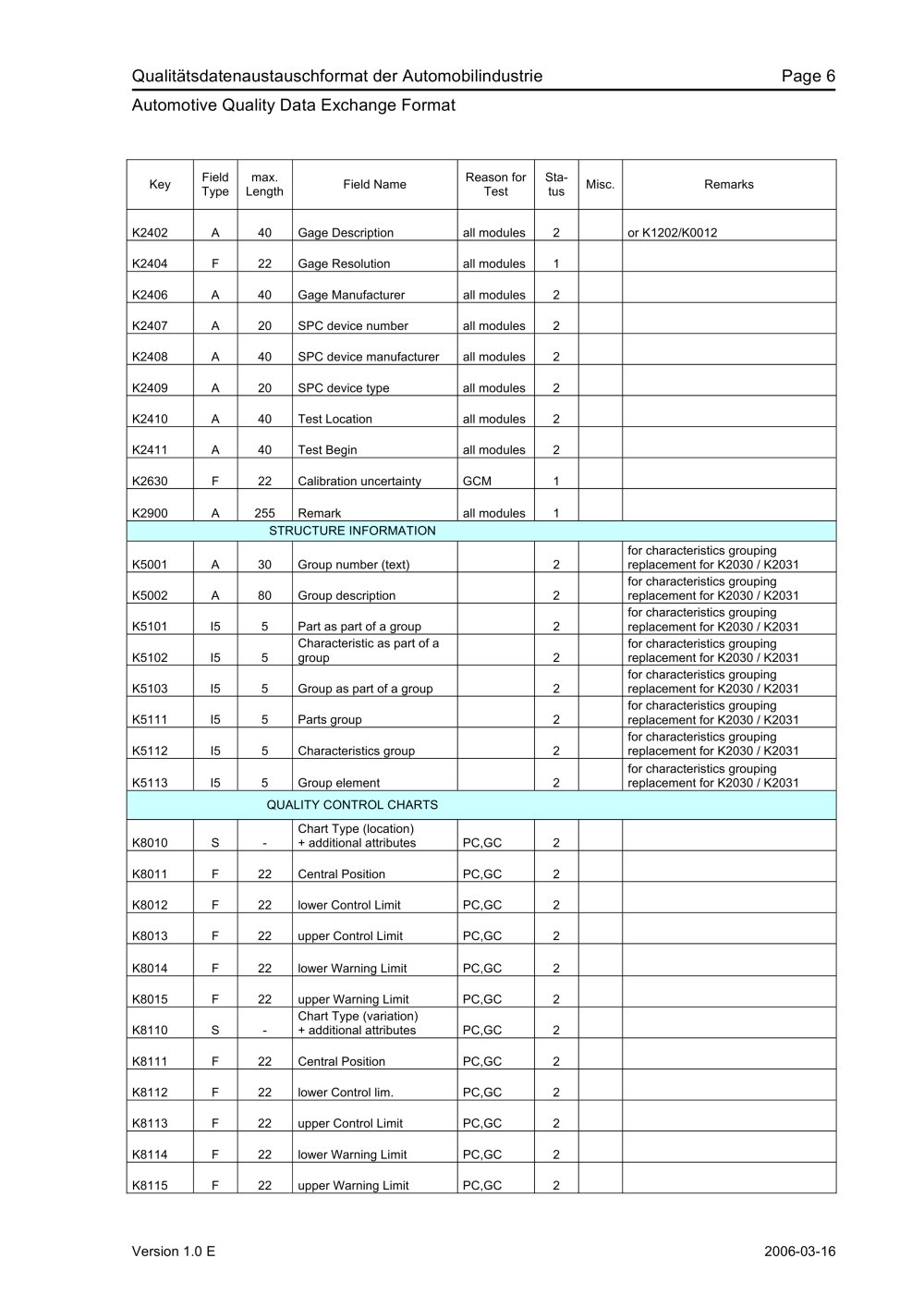

Qualitätsdatenaustauschformat der Automobilindustrie Page 6 Automotive Quality Data Exchange Format
Key Field Type max. Length Field Name Reason for Test Sta-tus Misc. Remarks K2402 A 40 Gage Description all modules 2 or K1202/K0012 K2404 F 22 Gage Resolution all modules 1 K2406 A 40 Gage Manufacturer all modules 2 K2407 A 20 SPC device number all modules 2 K2408 A 40 SPC device manufacturer all modules 2 K2409 A 20 SPC device type all modules 2 K2410 A 40 Test Location all modules 2 K2411 A 40 Test Begin all modules 2 K2630 F 22 Calibration uncertainty GCM 1 K2900 A 255 Remark all modules 1 STRUCTURE INFORMATION K5001 A 30 Group number (text) 2 for characteristics grouping replacement for K2030 / K2031 K5002 A 80 Group description 2 for characteristics grouping replacement for K2030 / K2031 K5101 I5 5 Part as part of a group 2 for characteristics grouping replacement for K2030 / K2031 K5102 I5 5 Characteristic as part of a group 2 for characteristics grouping replacement for K2030 / K2031 K5103 I5 5 Group as part of a group 2 for characteristics grouping replacement for K2030 / K2031 K5111 I5 5 Parts group 2 for characteristics grouping replacement for K2030 / K2031 K5112 I5 5 Characteristics group 2 for characteristics grouping replacement for K2030 / K2031 K5113 I5 5 Group element 2 for characteristics grouping replacement for K2030 / K2031 QUALITY CONTROL CHARTS K8010 S - Chart Type (location) + additional attributes PC,GC 2 K8011 F 22 Central Position PC,GC 2 K8012 F 22 lower Control Limit PC,GC 2 K8013 F 22 upper Control Limit PC,GC 2 K8014 F 22 lower Warning Limit PC,GC 2 K8015 F 22 upper Warning Limit PC,GC 2 K8110 S - Chart Type (variation) + additional attributes PC,GC 2 K8111 F 22 Central Position PC,GC 2 K8112 F 22 lower Control lim. PC,GC 2 K8113 F 22 upper Control Limit PC,GC 2 K8114 F 22 lower Warning Limit PC,GC 2 K8115 F 22 upper Warning Limit PC,GC 2
Version 1.0 E 2006-03-16
