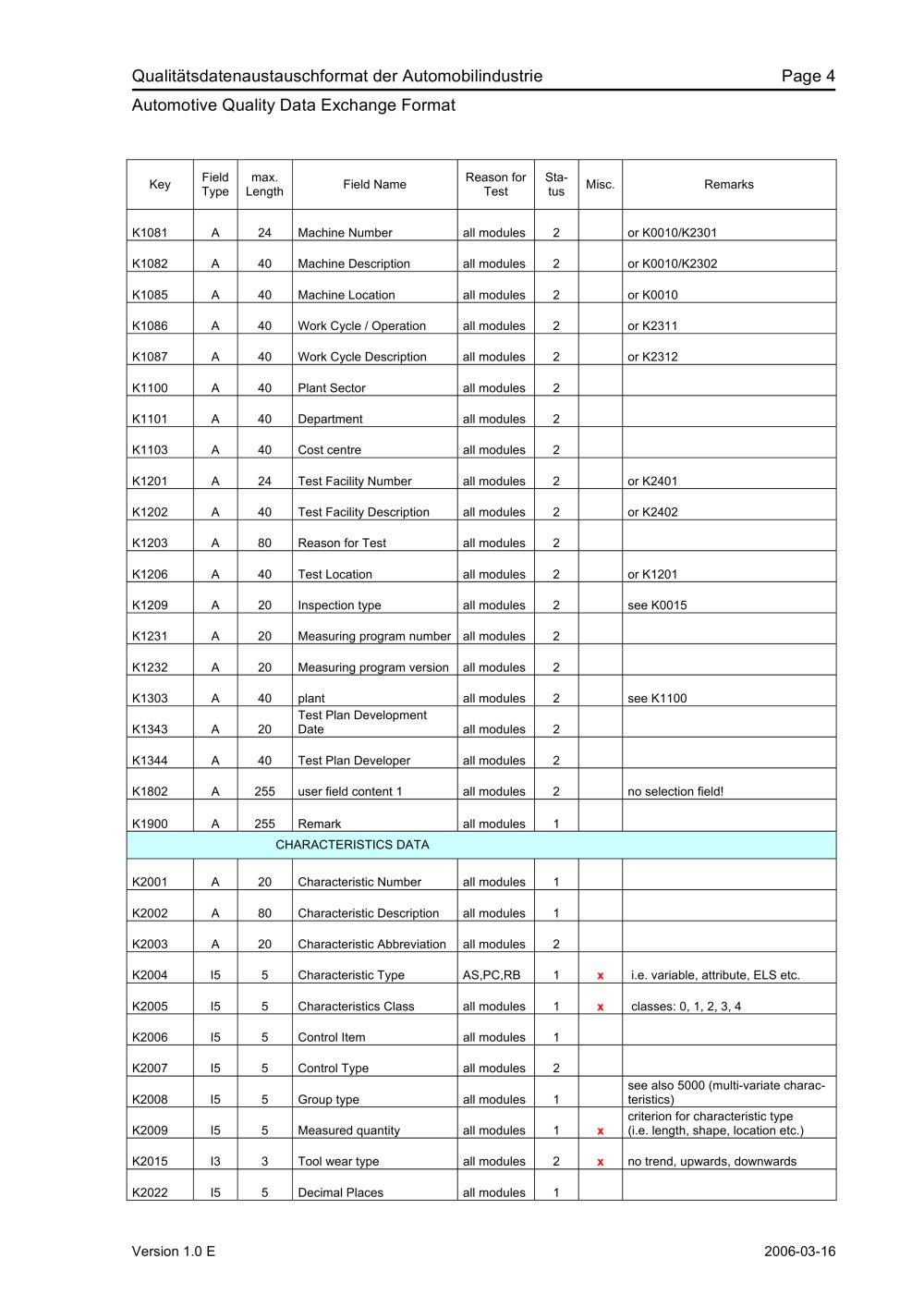

Qualitätsdatenaustauschformat der Automobilindustrie Page 4 Automotive Quality Data Exchange Format
Key Field Type max. Length Field Name Reason for Test Sta-tus Misc. Remarks K1081 A 24 Machine Number all modules 2 or K0010/K2301 K1082 A 40 Machine Description all modules 2 or K0010/K2302 K1085 A 40 Machine Location all modules 2 or K0010 K1086 A 40 Work Cycle / Operation all modules 2 or K2311 K1087 A 40 Work Cycle Description all modules 2 or K2312 K1100 A 40 Plant Sector all modules 2 K1101 A 40 Department all modules 2 K1103 A 40 Cost centre all modules 2 K1201 A 24 Test Facility Number all modules 2 or K2401 K1202 A 40 Test Facility Description all modules 2 or K2402 K1203 A 80 Reason for Test all modules 2 K1206 A 40 Test Location all modules 2 or K1201 K1209 A 20 Inspection type all modules 2 see K0015 K1231 A 20 Measuring program numberall modules 2 K1232 A 20 Measuring program version all modules 2 K1303 A 40 plant all modules 2 see K1100 K1343 A 20 Test Plan Development Date all modules 2 K1344 A 40 Test Plan Developer all modules 2 K1802 A 255 user field content 1 all modules 2 no selection field! K1900 A 255 Remark all modules 1 CHARACTERISTICS DATA K2001 A 20 Characteristic Number all modules 1 K2002 A 80 Characteristic Description all modules 1 K2003 A 20 Characteristic Abbreviation all modules 2 K2004 I5 5 Characteristic Type AS,PC,RB 1 x i.e. variable, attribute, ELS etc. K2005 I5 5 Characteristics Class all modules 1 x classes: 0, 1, 2, 3, 4 K2006 I5 5 Control Item all modules 1 K2007 I5 5 Control Type all modules 2 K2008 I5 5 Group type all modules 1 see also 5000 (multi-variate charac-teristics) criterion for characteristic type (i.e. length, shape, location etc.) K2009 I5 5 Measured quantity all modules 1 x K2015 I3 3 Tool wear type all modules 2 x no trend, upwards, downwards K2022 I5 5 Decimal Places all modules 1
Version 1.0 E 2006-03-16
