Qualitätsdatenaustauschformat der Automobilindustrie Page 3 Automotive Quality Data Exchange Format

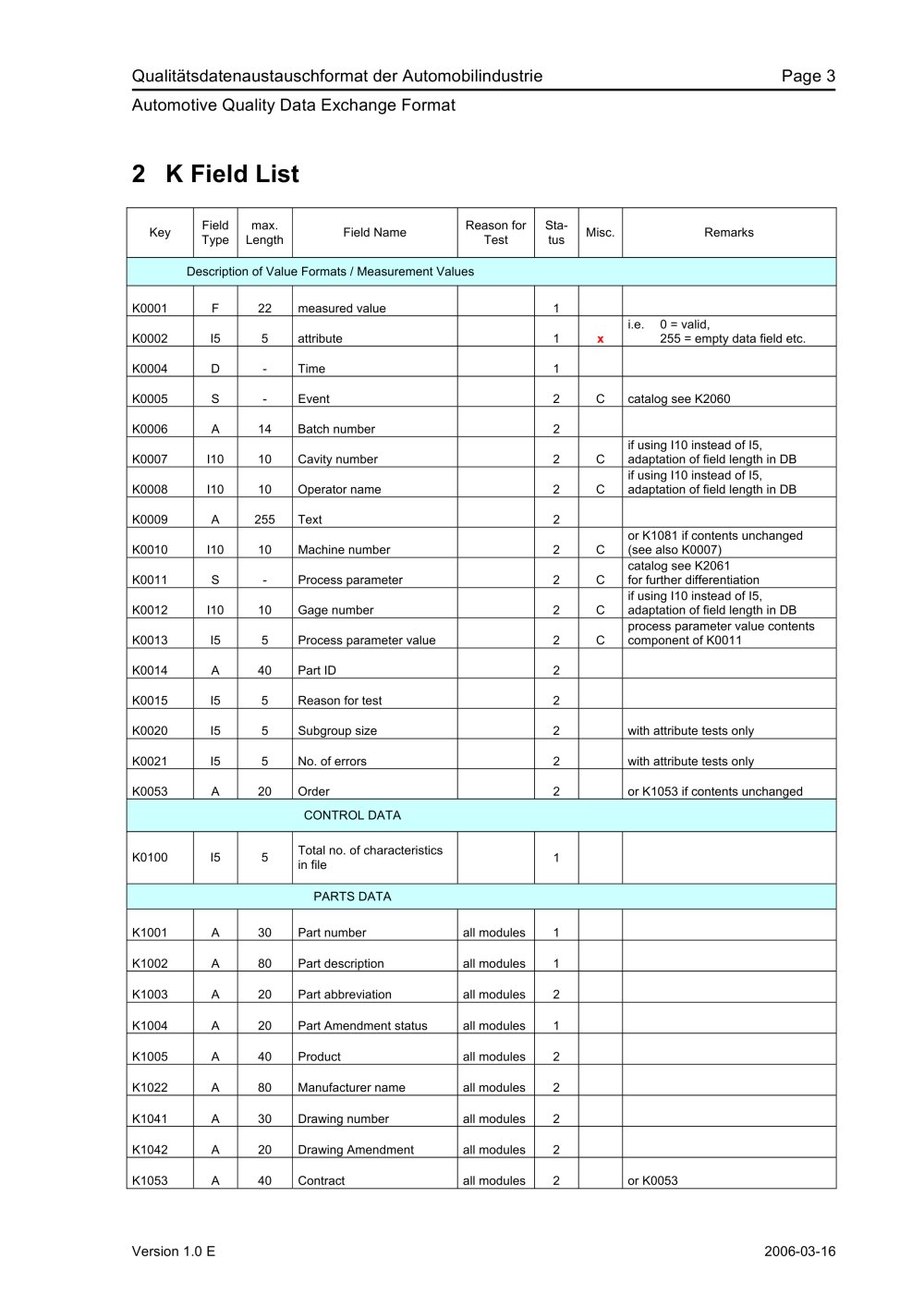

2 K Field List
Key Field Type max. Length Field Name Reason for Test Sta-tus Misc. Remarks Description of Value Formats / Measurement Values K0001 F 22 measured value 1 i.e. 0 = valid, 255 = empty data field etc. K0002 I5 5 attribute 1 x K0004 D - Time 1 K0005 S - Event 2 C catalog see K2060 K0006 A 14 Batch number 2 K0007 I10 10 Cavity number 2 C if using I10 instead of I5, adaptation of field length in DB K0008 I10 10 Operator name 2 C if using I10 instead of I5, adaptation of field length in DB K0009 A 255 Text 2 K0010 I10 10 Machine number 2 C or K1081 if contents unchanged (see also K0007) K0011 S - Process parameter 2 C catalog see K2061 for further differentiation K0012 I10 10 Gage number 2 C if using I10 instead of I5, adaptation of field length in DB K0013 I5 5 Process parameter value 2 C process parameter value contents component of K0011 K0014 A 40 Part ID 2 K0015 I5 5 Reason for test 2 K0020 I5 5 Subgroup size 2 with attribute tests only K0021 I5 5 No. of errors 2 with attribute tests only K0053 A 20 Order 2 or K1053 if contents unchanged CONTROL DATA K0100 I5 5 Total no. of characteristics in file 1 PARTS DATA K1001 A 30 Part number all modules 1 K1002 A 80 Part description all modules 1 K1003 A 20 Part abbreviation all modules 2 K1004 A 20 Part Amendment status all modules 1 K1005 A 40 Product all modules 2 K1022 A 80 Manufacturer name all modules 2 K1041 A 30 Drawing number all modules 2 K1042 A 20 Drawing Amendment all modules 2 K1053 A 40 Contract all modules 2 or K0053
Version 1.0 E 2006-03-16
