		PVD3D2N Data Sheet Revised Monday 2008 May 26, page 4of 4

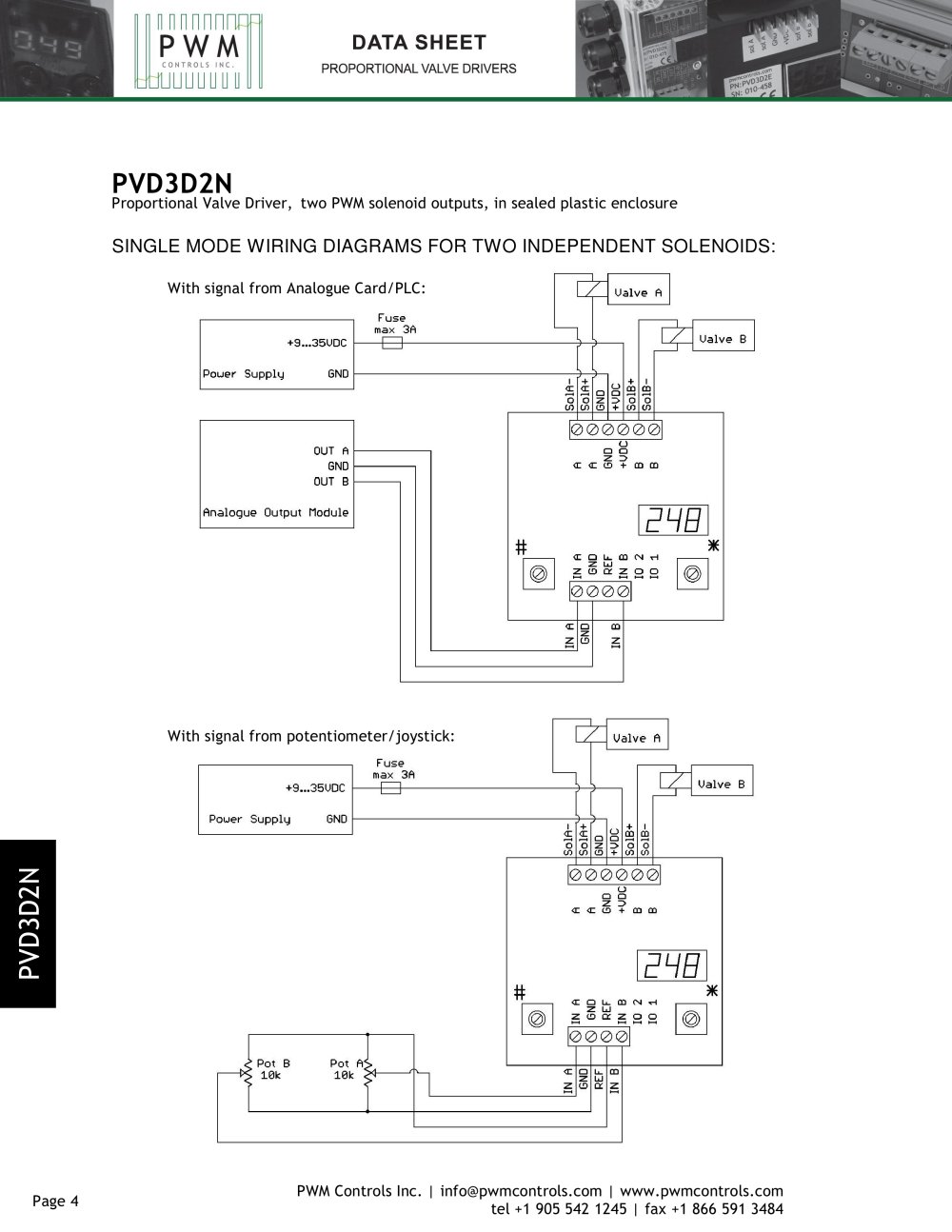

Wiring diagrams:

	PWM Controls Inc. 1348 Spring Garden Court, Mississauga, Ontario CANADA L5N 8K5 tel +1 905 542 1245 fax +1 905 542 1245 pwmcontrols.com
