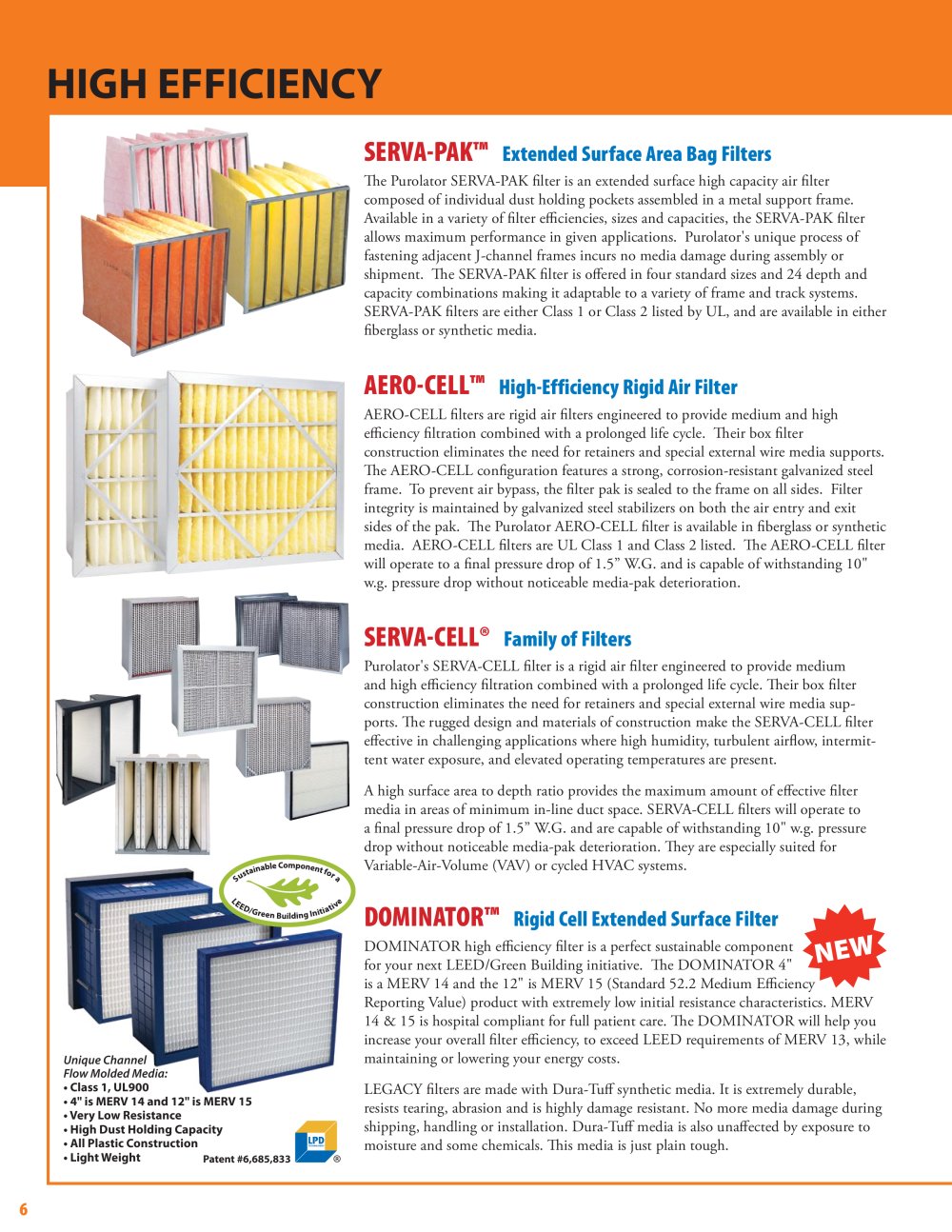

HIGH EFFICIENCY

SERVA-PAK™

Extended Surface Area Bag filters
e Purolator SERVA-PAK filter is an extended surface high capacity air filter composed of individual dust holding pockets assembled in a metal support frame. Available in a variety of filter efficiencies, sizes and capacities, the SERVA-PAK filter allows maximum performance in given applications. Purolator's unique process of fastening adjacent J-channel frames incurs no media damage during assembly or shipment. e SERVA-PAK filter is offered in four standard sizes and 24 depth and capacity combinations making it adaptable to a variety of frame and track systems. SERVA-PAK professional filters are either Class 1 or Class 2 listed by UL, and are available in either fiberglass or synthetic media.

AERO-CELL™

High-Efficiency Rigid Air Filter
AERO-CELL filters are rigid industrial air filters engineered to provide medium and high efficiency filtration combined with a prolonged life cycle. eir box filter construction eliminates the need for retainers and special external wire media supports. e AERO-CELL configuration features a strong, corrosion-resistant galvanized steel frame. To prevent air bypass, the filter pak is sealed to the frame on all sides. Filter integrity is maintained by galvanized steel stabilizers on both the air entry and exit sides of the pak. e Purolator AERO-CELL filter is available in fiberglass or synthetic media. AERO-CELL filters are UL Class 1 and Class 2 listed. e AERO-CELL filter will operate to a final pressure drop of 1.5” W.G. and is capable of withstanding 10" w.g. pressure drop without noticeable media-pak deterioration.

SERVA-CELL®

Family of Filters
Purolator's SERVA-CELL filter is a rigid air filter engineered to provide medium and high efficiency filtration combined with a prolonged life cycle. eir box filter construction eliminates the need for retainers and special external wire media sup- ports. e rugged design and materials of construction make the SERVA-CELL filter effective in challenging applications where high humidity, turbulent airflow, intermit- tent water exposure, and elevated operating temperatures are present.A high surface area to depth ratio provides the maximum amount of effective filter media in areas of minimum in-line duct space. SERVA-CELL filters will operate to a final pressure drop of 1.5” W.G. and are capable of withstanding 10" w.g. pressure drop without noticeable media-pak deterioration. ey are especially suited for Variable-Air-Volume (VAV) or cycled HVAC systems.

DOMINATOR™

Rigid Cell Extended Surface Filter
DOMINATOR high efficiency filter is a perfect sustainable component for your next LEED/Green Building initiative. e DOMINATOR 4" is a MERV 14 and the 12" is MERV 15 (Standard 52.2 Medium Efficiency Reporting Value) product with extremely low initial resistance characteristics. MERV 14 & 15 is hospital compliant for full patient care. e DOMINATOR will help you increase your overall filter efficiency, to exceed LEED requirements of MERV 13, while maintaining or lowering your energy costs. LEGACY filters are made with Dura-Tuff synthetic media. It is extremely durable, resists tearing, abrasion and is highly damage resistant. No more media damage during shipping, handling or installation. Dura-Tuff media is also unaffected by exposure to moisture and some chemicals. is media is just plain tough.

NEW

Unique Channel Flow Molded Media: • Class 1, UL900 • 4" is MERV 14 and 12" is MERV 15 • Very Low Resistance • High Dust Holding Capacity • All Plastic Construction • Light Weight Patent #6,685,833 6
