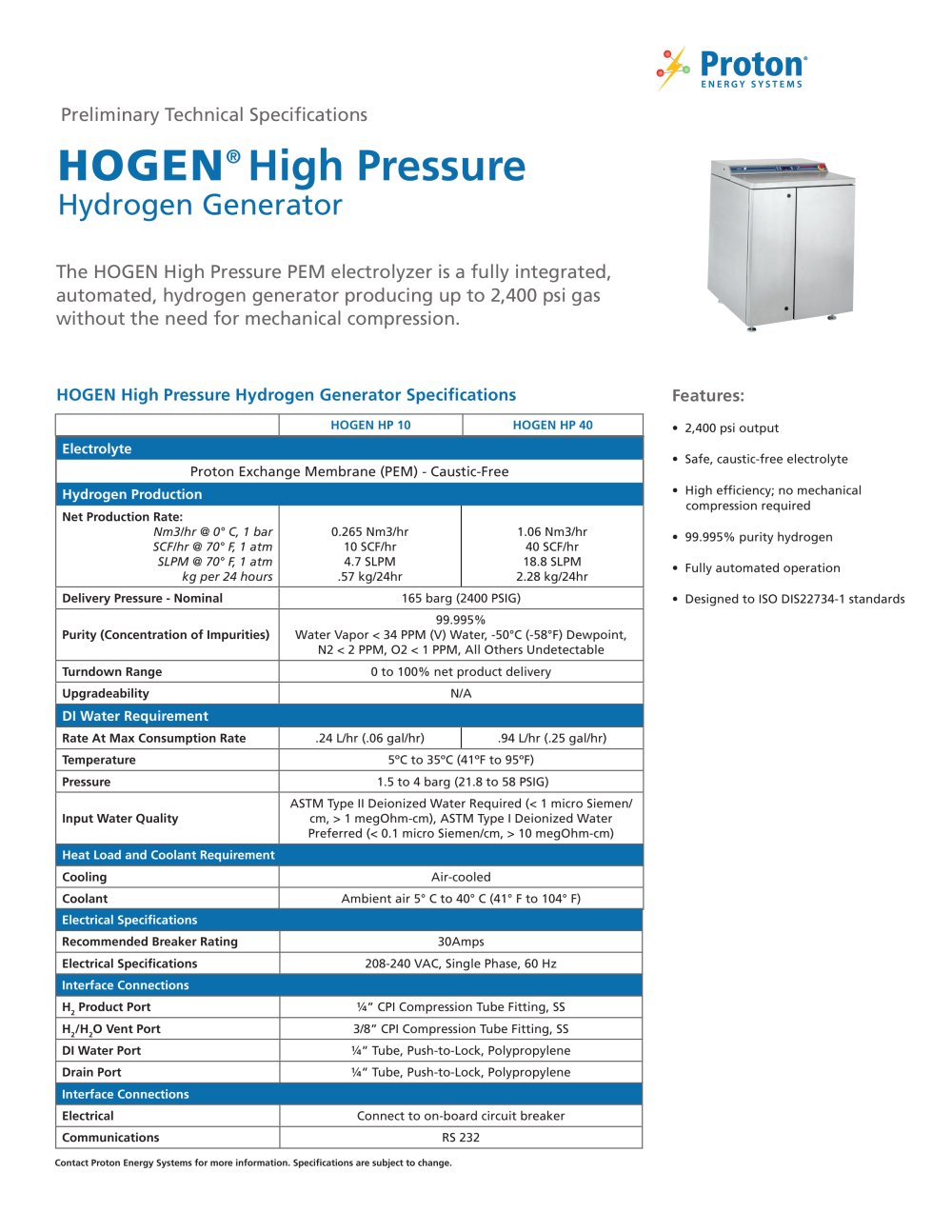

HOGEN HP, high pressure electrolyzer - 22808 HOGEN

®

High Pressure Hydrogen Generator

The HOGEN High Pressure PEM electrolyzer is a fully integrated, automated, hydrogen generator producing up to 2,400 psi gas without the need for mechanical compression.

HOGEN High Pressure Hydrogen Generator Specifications Features:

HOGEN HP 10HOGEN HP 40 • 2,400 psi output • Safe, caustic-free electrolyte • High efficiency; no mechanical compression required• 99.995% purity hydrogen • Fully automated operation • Designed to ISO DIS22734-1 standards

Electrolyte Proton Exchange Membrane (PEM) - Caustic-Free Hydrogen Production

Net Production Rate: Nm3/hr @ 0° C, 1 bar SCF/hr @ 70° F, 1 atm SLPM @ 70° F, 1 atm kg per 24 hours 0.265 Nm3/hr 10 SCF/hr 4.7 SLPM .57 kg/24hr1.06 Nm3/hr 40 SCF/hr 18.8 SLPM 2.28 kg/24hr Delivery Pressure - Nominal 165 barg (2400 PSIG) 99.995% Water Vapor

DI Water Requirement

Rate At Max Consumption Rate .24 L/hr (.06 gal/hr).94 L/hr (.25 gal/hr) Temperature 5ºC to 35ºC (41ºF to 95ºF) Pressure 1.5 to 4 barg (21.8 to 58 PSIG) ASTM Type II Deionized Water Required ( 1 megOhm-cm), ASTM Type I Deionized Water Preferred ( 10 megOhm-cm) Input Water Quality Heat Load and Coolant Requirement Cooling Air-cooled Coolant Ambient air 5° C to 40° C (41° F to 104° F) Electrical Specifications Recommended Breaker Rating 30Amps Electrical Specifications 208-240 VAC, Single Phase, 60 Hz Interface Connections H
2 Product Port ¼” CPI Compression Tube Fitting, SS H
2 /H
2 O Vent Port 3/8” CPI Compression Tube Fitting, SS DI Water Port ¼” Tube, Push-to-Lock, Polypropylene Drain Port ¼” Tube, Push-to-Lock, Polypropylene Interface Connections Electrical Connect to on-board circuit breaker Communications RS 232
Contact Proton Energy Systems for more information. Specifications are subject to change.
