ELECTRO MECHANICAL ASSEMBLY PRESS SOFTWARE

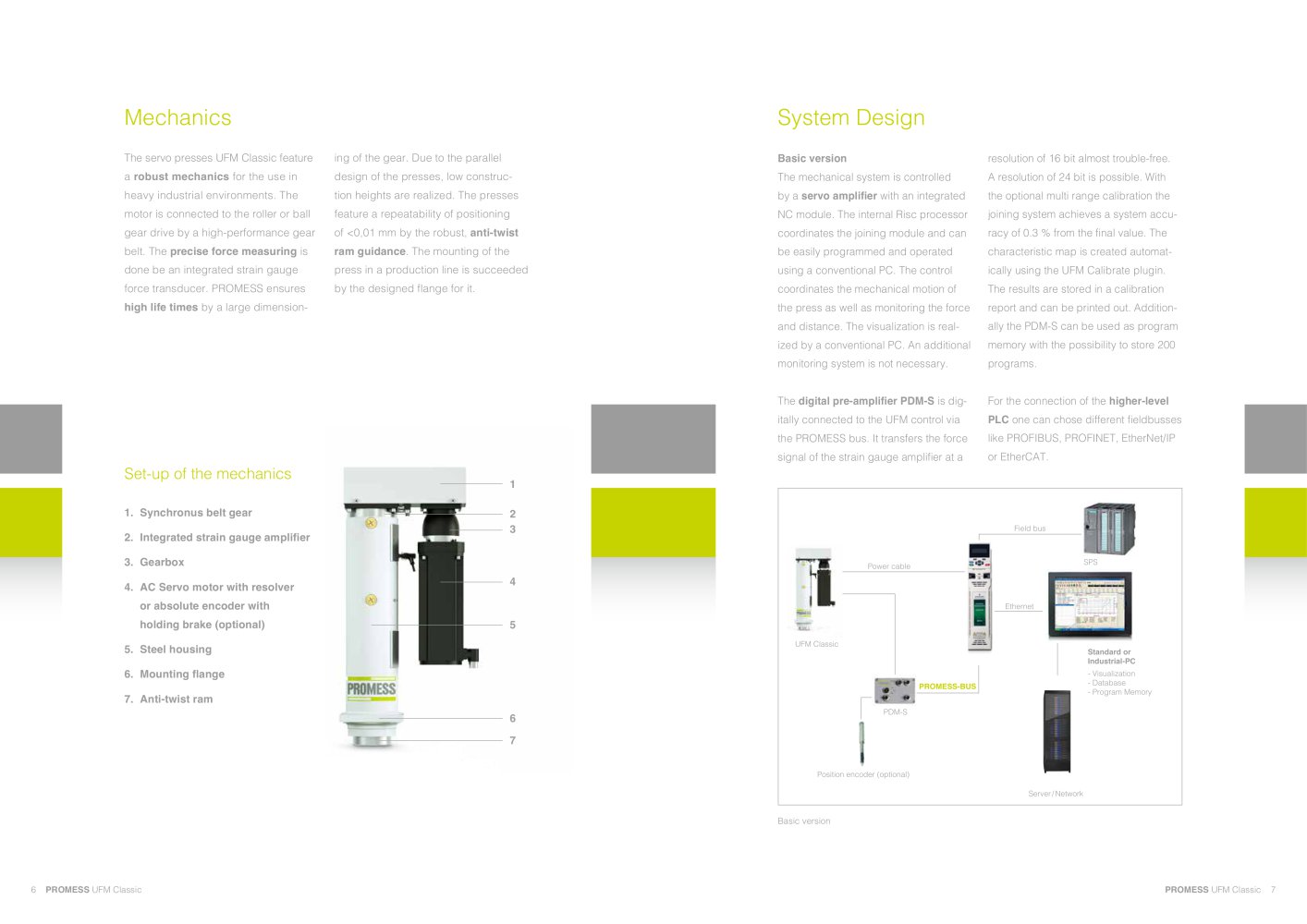

The visualization and programming of the process takes place using a PC. A transparent and easy to see interface under Windows 2000/XP provides problem-free and simple operation. All important information and functions are shown in the main menu in a way that is structured and easy to understand. A precise compensation against ben- ding moment is offered in the software. Pressing of axles in stamping packages using different forces is recognized by the press and compensated automatically. The mea- surement is correct even after the press moves away in hundredths! Dimensions and Specifications Module EMAP Force Stroke Vmax Art.-No. [kN] [mm] [mm/s]PRECISION ASSEMBLY UNIT UFM 0,2 60 250 365802 UFM 0,5 100 400 364047 UFM 1 100 400 364830 UFM 1 200 400 364030UFM 3 200 250 366030 COMPACT ASSEMBLY UNIT Parameters and input details necessary for programming can be processed quickly using a very simple and self-expla- natory window technology.To create a program is very easy. Different function win-dows are used one by one to insert the process data until the whole program is set up. All program steps with their specific functions are displayed in the main window. UFM 1 100 400 364046 UFM 25 250 240 378025 UFM 50 250 150 378050 UFM 50 250 240 378055 ELECTRO MECHANICAL ASSEMBLY UNIT UFM 3 100 120 374003 UFM 5 200 240 374005 UFM 12 200 240 374012 UFM 20 180 150 374020 UFM 20 350 230 374023 UFM 30 180 150 374021 UFM 30 350 230 374030 UFM 40 180 150 374040 UFM 40 330 240 374043 UFM 60 180 150 374060 UFM 60 330 240 374065 UFM 80 180 150 374081 UFM 80 330 200 374091 UFM 100 330 200 374103 UFM 150 400 145 374151 UFM 240 350 120 374243 UFM 300 350 100 374291 UFM 500 400 70 374294Further dimensions upon request. SCOPE OF SUPPLY: Electro Mechanical Assembly Unit with motor, Servo Amplifier, Strain gauge Amplifier, NC-Module, Operator Software, Memory Card, Motor and Resolver connector ACCESSORIES: Mounting plate for cabinet, Press rack, Cable sets, Interfaces, external Position or Force transducer, additional Memory SERVICE: Installation and Start-up support, Pre-Tests, Maintenance, Process analysis, Consulting
Subject to change.

PROMESS Gesellschaft für Montage- und Prüfsysteme mbH

Nunsdorfer Ring 29 | D-12277 Berlin | Telefon +49 30 / 62 88 72 - 0 | Fax +49 30 / 62 88 72 - 59E-Mail promess@promessmontage.de | www.promessmontage.de
