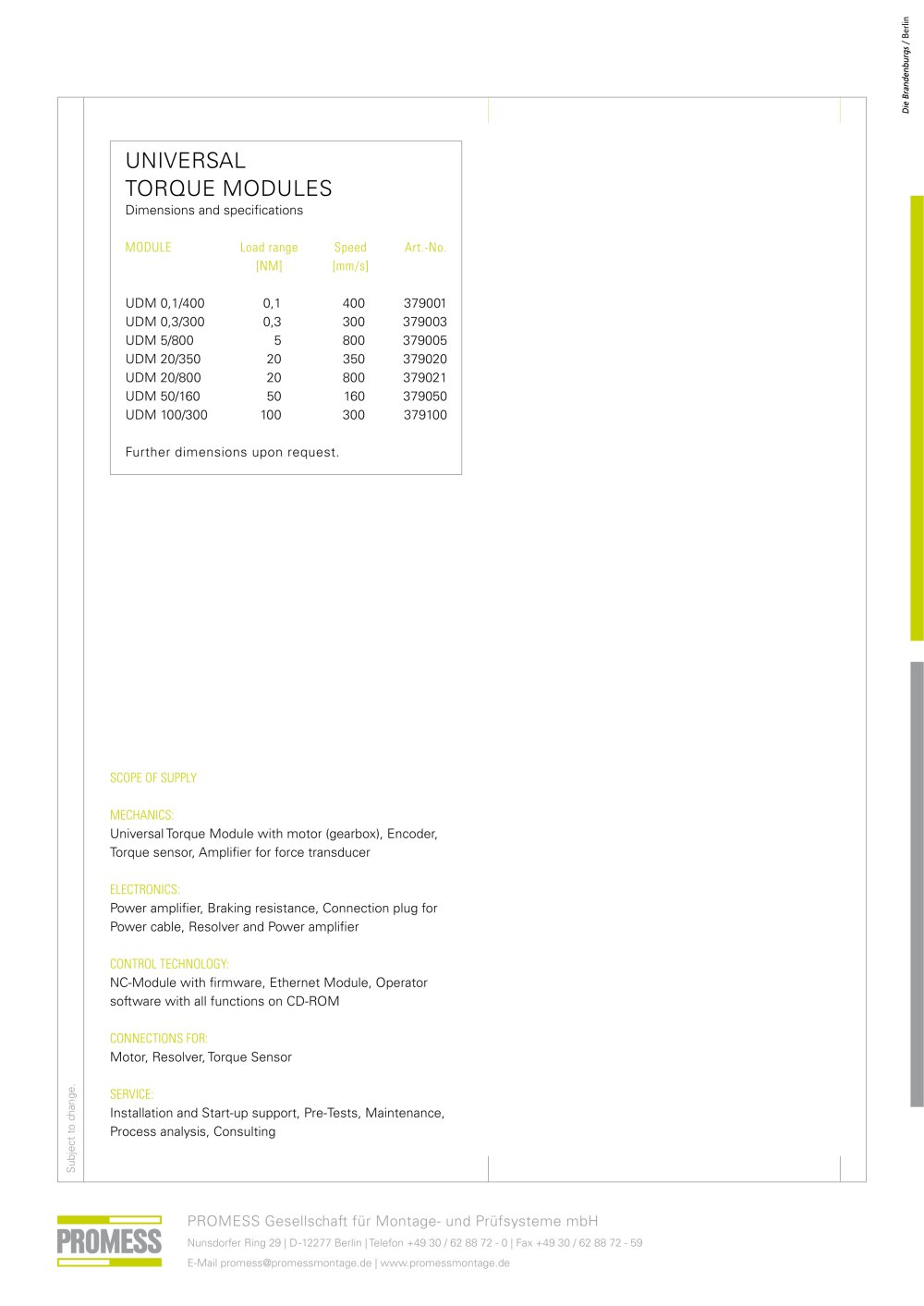

UNIVERSAL TORQUE MODULES

Dimensions and specifications MODULE Load range Speed Art.-No. [NM] [mm/s] UDM 0,1/400 0,1 400 379001UDM 0,3/300 0,3 300 379003UDM 5/800 5 800 379005UDM 20/350 20 350 379020 UDM 20/800 20 800 379021 UDM 50/160 50 160 379050 UDM 100/300 100 300 379100 Further dimensions upon request. SCOPE OF SUPPLY MECHANICS: Universal Torque Module with motor (gearbox), Encoder, Torque sensor, Amplifier for force transducer ELECTRONICS: Power amplifier, Braking resistance, Connection plug for Power cable, Resolver and Power amplifier CONTROL TECHNOLOGY: NC-Module with firmware, Ethernet Module, Operator software with all functions on CD-ROM CONNECTIONS FOR: Motor, Resolver, Torque Sensor SERVICE: Installation and Start-up support, Pre-Tests, Maintenance, Process analysis, Consulting
Subject to change.
