875

Electrical Components

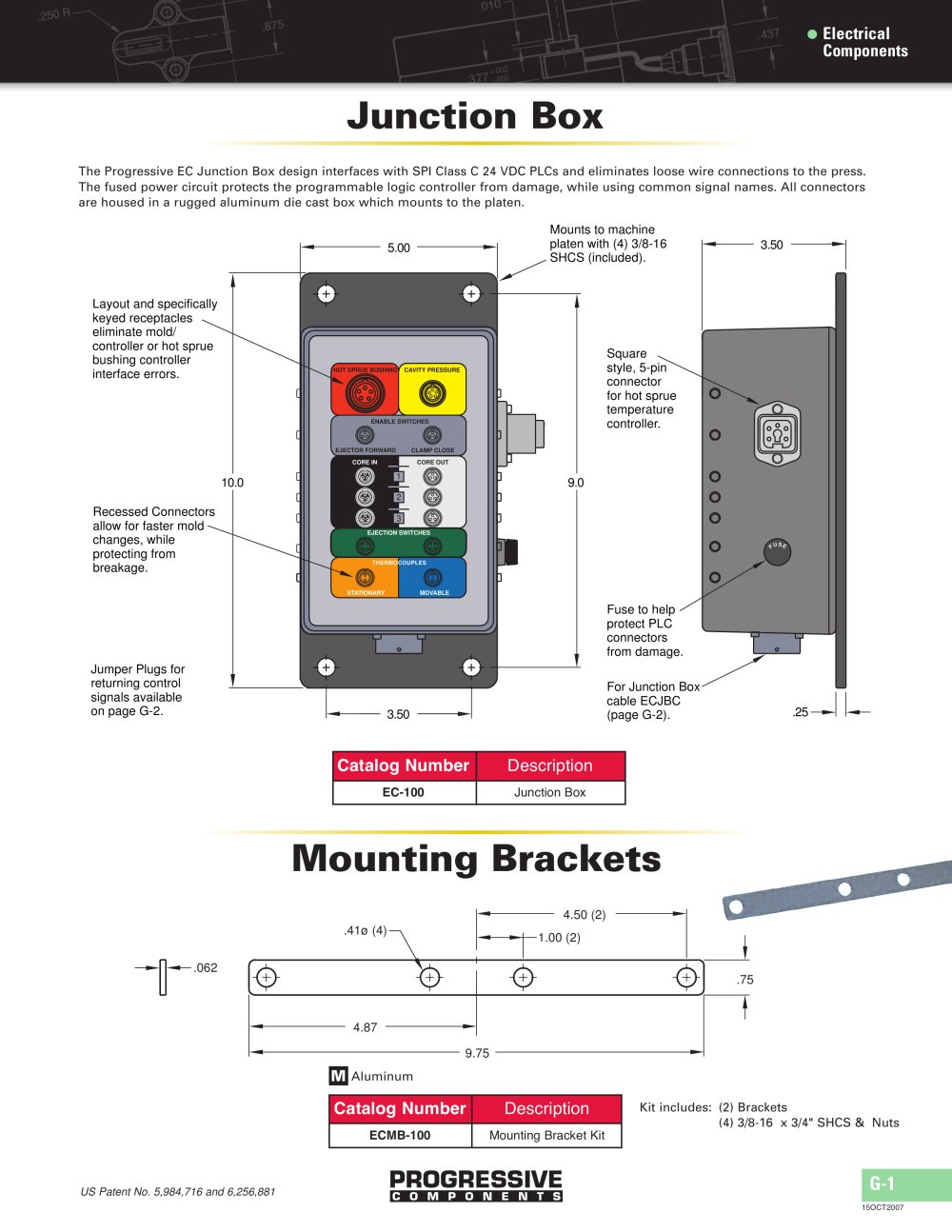

Junction Box

The Progressive EC Junction Box design interfaces with SPI Class C 24 VDC PLCs and eliminates loose wire connections to the press. The fused power circuit protects the programmable logic controller from damage, while using common signal names. All connectors are housed in a rugged aluminum die cast box which mounts to the platen.

Mounts to machine platen with (4) 3/8-16 SHCS (included).

5.00

Layout and specifically keyed receptacles eliminate mold/ controller or hot sprue bushing controller interface errors.

Square style, 5-pin connector for hot sprue temperature controller.

CAVITY PRESSURE

9.0

Recessed Connectors allow for faster mold changes, while protecting from breakage.

Fuse to help protect PLC connectors from damage.

For Junction Box cable ECJBC (page G-2).

Jumper Plugs for returning control signals available on page G-2.

.25

3.50



	EC-100	Junction Box

Mounting Brackets


.410 (4)^	—- 4.50(2) -— —-—J—1.00 (2)	I
			.75
			f
^m 4.8/ ^m

.062

Catalog Number Descripti

Kit includes: (2) Brackets

(4) 3/8-16 x 3/4" SHCS & Nuts

ECMB-100 Mounting Bracket Kit

PROGRESSIVE

US Patent No. 5,984,716 and 6,256,881

IJ.1MJ.1JHJM.H

15OCT2007
