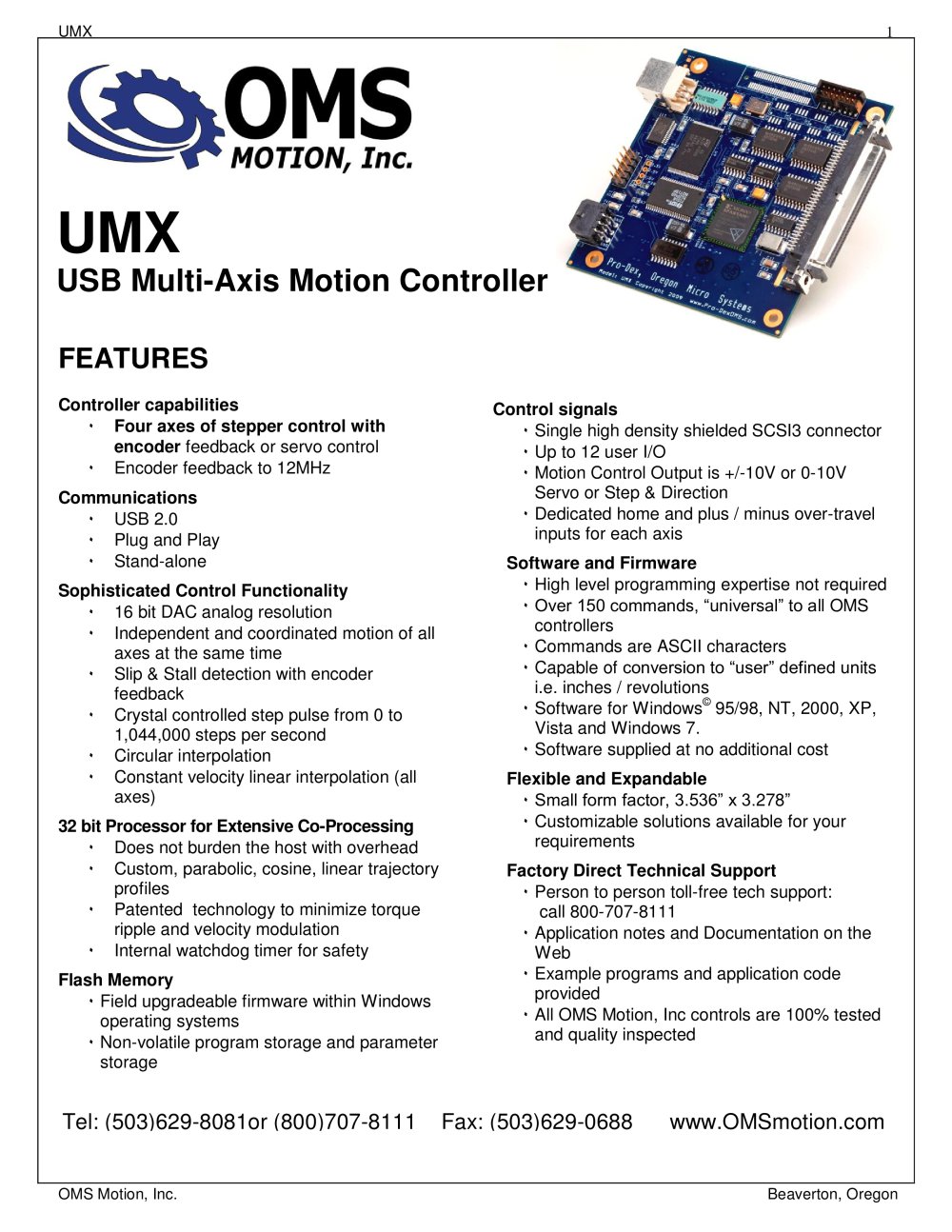

@MAJOR HEAD = FEATURES table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.50pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:19.00pt "Arial", sans-serif; } .font4 { font:22.50pt "Arial", sans-serif; } UMX 1 USB Multi-Axis Motion Controller FEATURES Controller capabilities • Four axes of stepper control with encoder feedback or servo control • Encoder feedback to 12MHz Communications • USB 2.0 • Plug and Play • Stand-alone Sophisticated Control Functionality • 16 bit DAC analog resolution • Independent and coordinated motion of all axes at the same time • Slip & Stall detection with encoder feedback • Crystal controlled step pulse from 0 to 1,044,000 steps per second • Circular interpolation • Constant velocity linear interpolation (all axes) • Electronic gearing 32 bit Processor for Extensive Co-Processing • Does not burden the host with overhead • Custom, parabolic, cosine, linear trajectory profiles • Patented technology to minimize torque ripple and velocity modulation • Internal watchdog timer for safety Flash Memory • Field upgradeable firmware within Windows operating systems • Non-volatile program storage and parameter storage Control signals • Single high density shielded SCSI3 connector • Up to 12 user I/O • Motion Control Output is +/-10V or 0-10V Servo or Step & Direction • Dedicated home and plus / minus over-travel inputs for each axis Software and Firmware • High level programming expertise not required • Over 150 commands, "universal" to all OMS controllers • Commands are ASCII characters • Capable of conversion to "user" defined units i.e. inches / revolutions • Software for Windows© 95/98, NT, 2000, XP and Vista. • Software supplied at no additional cost Flexible and Expandable • Small form factor, 3.55" x 3.3" • Customizable solutions available for your requirements Factory Direct Technical Support • Person to person toll-free tech support: call 800-707-8111 • Application notes and Documentation on the Web • Example programs and application code provided • All Pro-Dex, OMS controls are 100% tested and quality inspected Tel: (503)629-8081or (800)707-8111 Fax: (503)629-0688 www.Pro-DexOMS.com PRO-DEX, OREGON MICRO SYSTEMS Beaverton, Oregon
