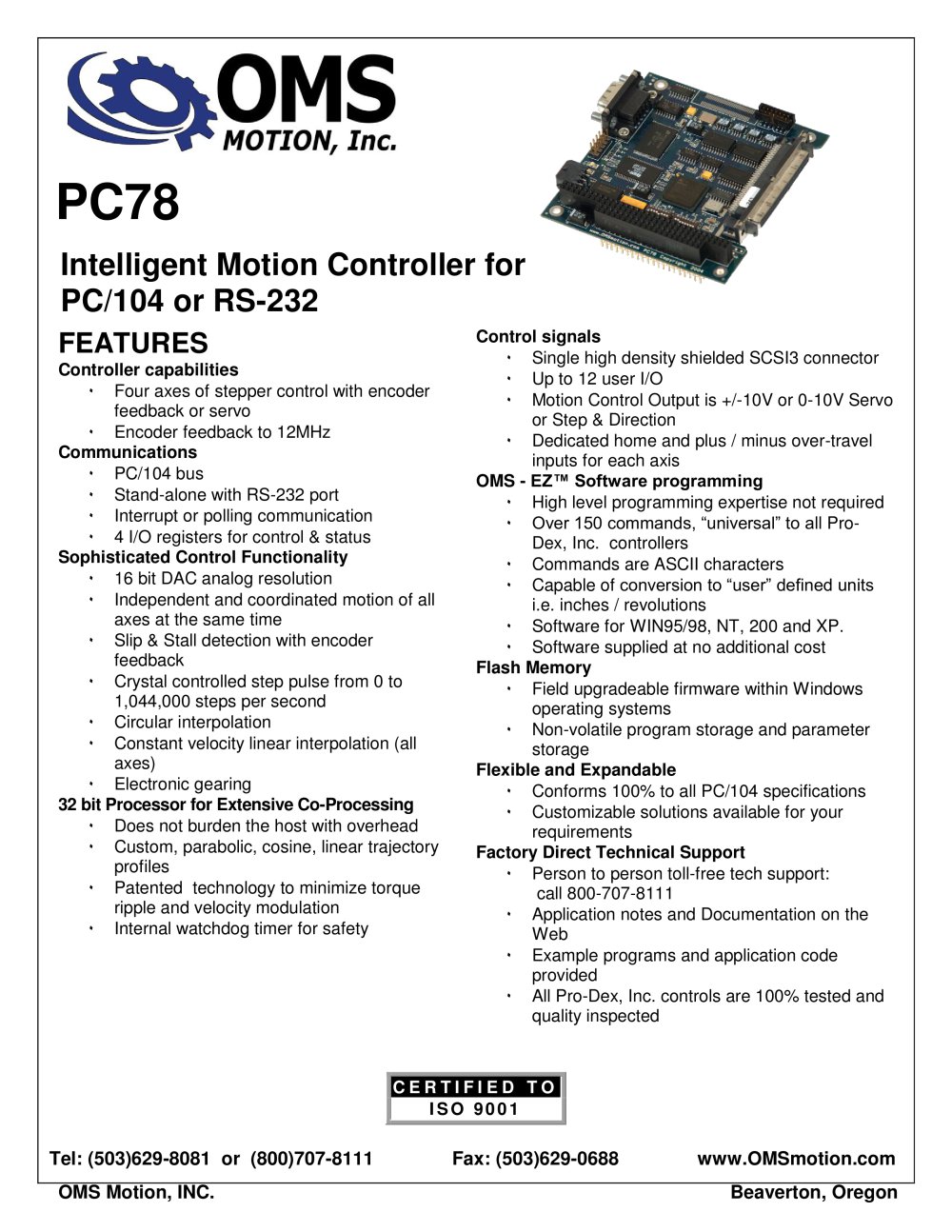

@MAJOR HEAD = FEATURES table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Arial", sans-serif; } .font1 { font:13.00pt "Arial", sans-serif; } .font2 { font:19.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Times New Roman", serif; } .font4 { font:10.00pt "Times New Roman", serif; } .font5 { font:17.00pt "Times New Roman", serif; } .font6 { font:35.00pt "Times New Roman", serif; } PC78- 1 PC78 Intelligent Motion Controller for PC/104 or RS-232 FEATURES Controller capabilities * Four axes of stepper control with encoder feedback or servo * Encoder feedback to 12MHz Communications * PC/104 bus * Stand-alone with RS-232 port * Interrupt or polling communication * 4 I/O registers for control & status Sophisticated Control Functionality * 16 bit DAC analog resolution * Independent and coordinated motion of all axes at the same time * Slip & Stall detection with encoder feedback * Crystal controlled step pulse from 0 to 1,044,000 steps per second * Circular interpolation * Constant velocity linear interpolation (all axes) * Electronic gearing 32 bit Processor for Extensive Co-Processing * Does not burden the host with overhead * Custom, parabolic, cosine, linear trajectory profiles * Patented technology to minimize torque ripple and velocity modulation * Internal watchdog timer for safety Control signals * Single high density shielded SCSI3 connector * Up to 12 user I/O * Motion Control Output is +/-10V or 0-10V Servo or Step & Direction * Dedicated home and plus / minus over-travel inputs for each axis OMS - EZ™ Software programming * High level programming expertise not required * Over 150 commands, "universal" to all Pro-Dex, Inc. controllers * Commands are ASCII characters * Capable of conversion to "user" defined units i.e. inches / revolutions * Software for WIN95/98, NT, 200 and XP. * Software supplied at no additional cost Flash Memory * Field upgradeable firmware within Windows operating systems * Non-volatile program storage and parameter storage Flexible and Expandable * Conforms 100% to all PC/104 specifications * Customizable solutions available for your requirements Factory Direct Technical Support * Person to person toll-free tech support: call 800-707-8111 * Application notes and Documentation on the Web * Example programs and application code provided * All Pro-Dex, Inc. controls are 100% tested and quality inspected CERTIFIED TO ISO 9001 Tel: (503)629-8081or (800)707-8111 Fax: (503)629-0688 or (877)629-0688 WEB SITE: www.pro-dex.com PRO-DEX. INC. - OREGON MICRO SYSTEMS, INC. Beaverton, Oregon
