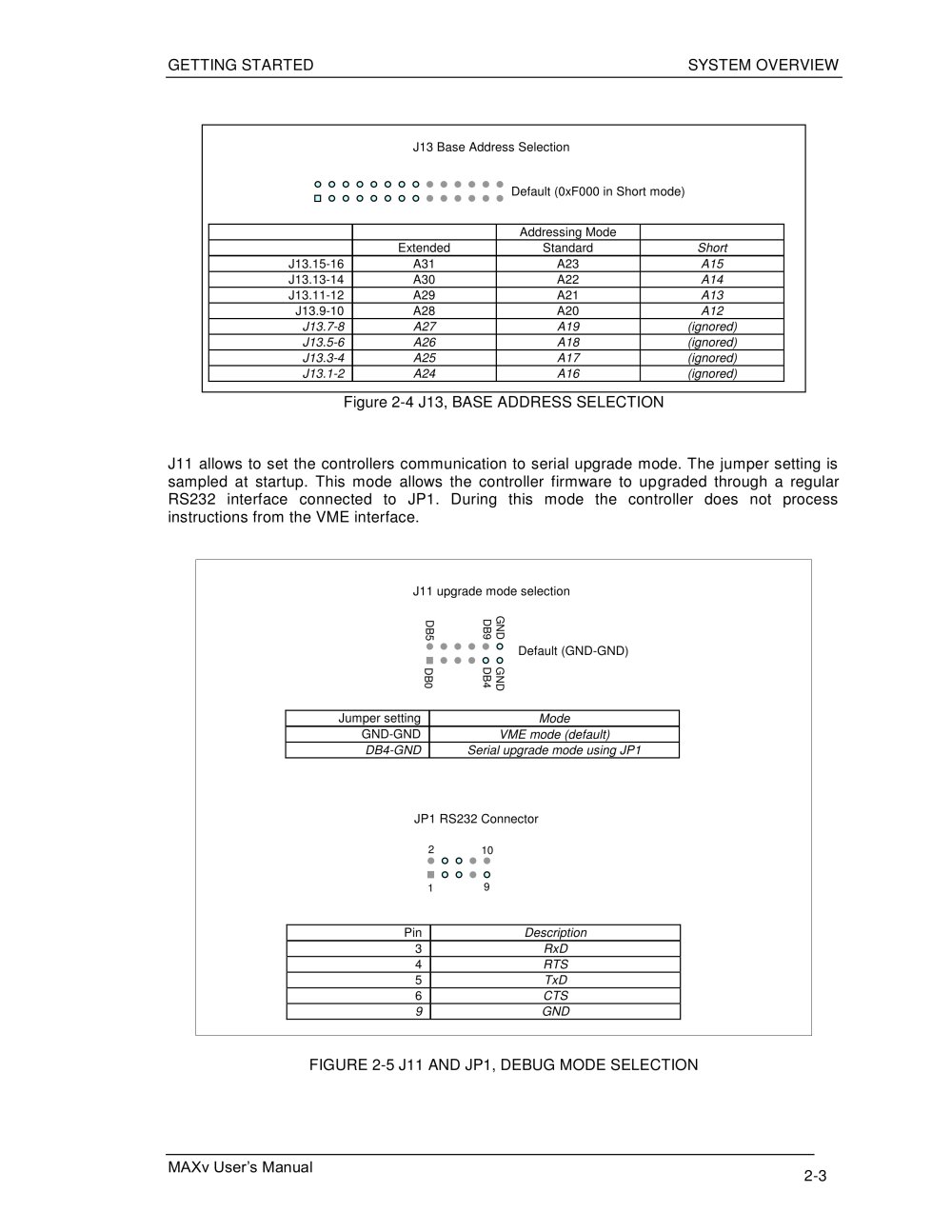

GETTING STARTED SYSTEM OVERVIEW
MAXv User’s Manual 2-3
FIGURE 2-4 J13, BASE ADDRESS SELECTION
Default (0xF000 in Short mode)
Addressing Mode
Extended Standard Short
J13.15-16 A31 A23 A15
J13.13-14 A30 A22 A14
J13.11-12 A29 A21 A13
J13.9-10 A28 A20 A12
J13.7-8 A27 A19 (ignored)
J13.5-6 A26 A18 (ignored)
J13.3-4 A25 A17 (ignored)
J13.1-2 A24 A16 (ignored)
J13 Base Address Selection
