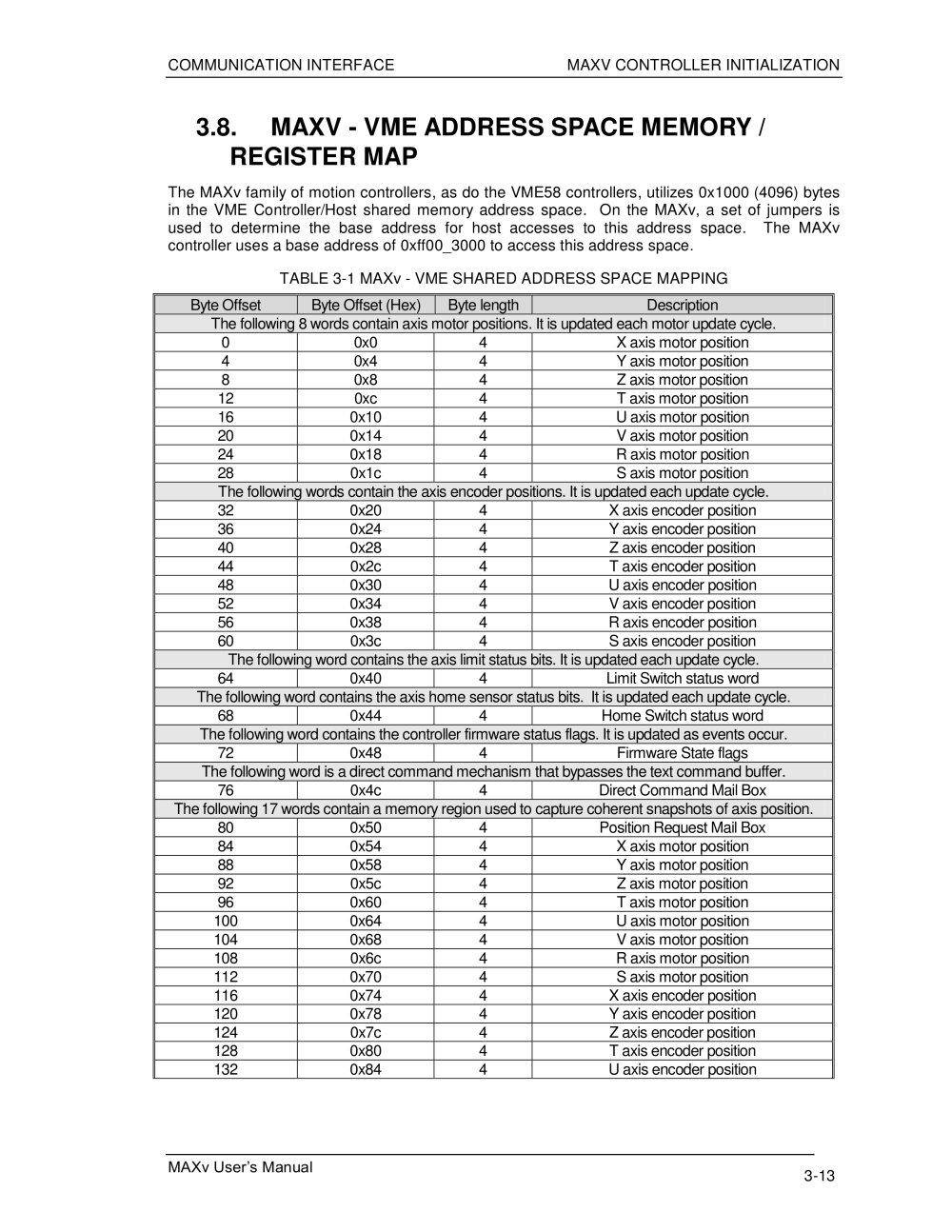

COMMUNICATION INTERFACE MAXV CONTROLLER INITIALIZATION MAXv User’s Manual 3-15 TABLE 3-1 MAXv – VME SHARED ADDRESS SPACE MAPPING (con’t) The remaining 64 bytes are reserved for the controller’s hardware register set: 4032 0xfc0 4 Status Word 1 flag register 4034 0xfc4 4 Status Word 1 interrupt enable register 4036 0xfc8 4 Status Word 2 flag register 4040 0xfcc 4 Status Word 2 interrupt enable register 4044 0xfd0 4 VME IACK ID Vector 4048 0xfd4 4 Controller configuration switch register 4052 0xfd8 4 Address modifier register 4060 0xfdc 28 Reserved 4088 0xff8 4 FIFO Status & Control 4092 0xffc 4 FIFO Data Register TABLE 3-2 MAXv - Limit Switch Status Word (Word Access Offset 0x40) Bit Function Byte access offset 0x43 00 X axis positive limit sensor 01 Y axis positive limit sensor 02 Z axis positive limit sensor 03 T axis positive limit sensor 04 U axis positive limit sensor 05 V axis positive limit sensor 06 R axis positive limit sensor 07 S axis positive limit sensor Byte access offset 0x42 08 X axis negative limit sensor 09 Y axis negative limit sensor 10 Z axis negative limit sensor 11 T axis negative limit sensor 12 U axis negative limit sensor 13 V axis negative limit sensor 14 R axis negative limit sensor 15 S axis negative limit sensor Byte access offset 0x41 16 Not used 17 Not used 18 Not used 19 Not used 20 Not used 21 Not used 22 Not used 23 Not used Byte access offset 0x40 24 Not used 25 Not used 26 Not used 27 Not used 28 Not used 29 Not used 30 Not used 31 Not used
