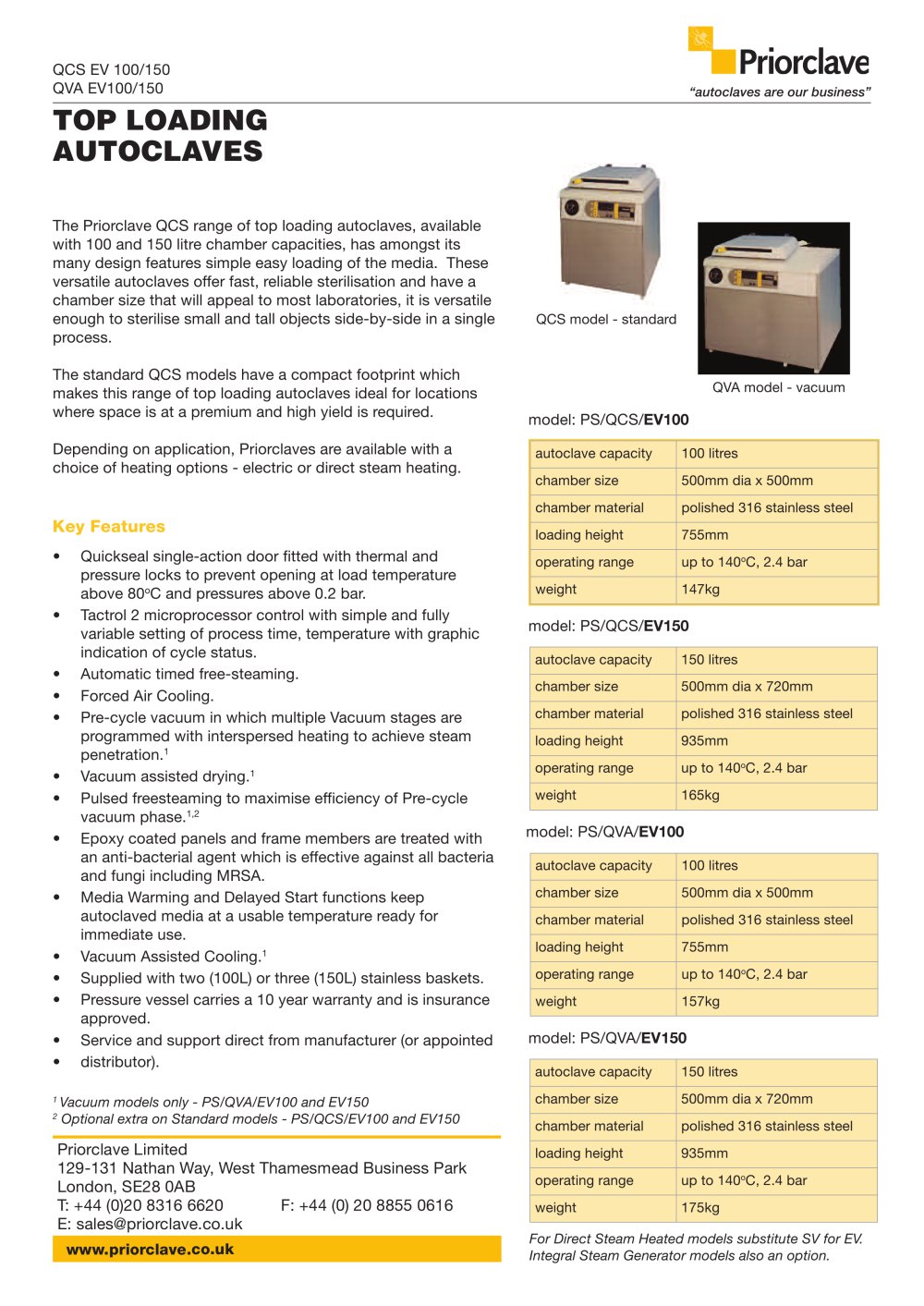

Top Loading Priorclave Datasheet - Priorclave - #1

Technical Datasheet H:\SALES\TechSpecSheets\Top Loaders Y2K.doc 24/08/2000

100 and 150 Litre Capacities

Quickseal Series II single action closure system

Cooling system and automatic timed freesteaming

Large diameter chamber giving 20% more loading area than conventional models.

Low loading heights

Electrically Heated either 7kW (single phase 30A) or 10.5 kW (three phase 15A)

Steam generated within the chamber (electrically heated models) Direct steam heated models available

Insurance approved, stainless steel grade 316L chamber manufactured under an ISO 9000 regime.

Conforms to BS2646-1993, BS5500 Cat.3, European PED 97/23/EC, EMC Compliance tested and CE marked, amongst others

Supplied with two (100L) or three (150L) stainless steel mesh baskets.

Delayed start and media warming capacity

Operation up to 138°C - 2.4 Bar The TACTROL 2 microprocessor

control system has staged illumination giving digital readouts of cycle status and the simple to set control panel features adjustable temperature and time that can be viewed simultaneously. Ideally suited for use in a wide range of applications:

Sterilisation - media preparation, liquids and diluent, waste, glassware, instruments, apparatus, health care

Non-sterilisation - food processing, plastics, accelerated curing, construction.

Extensively used within many industries, including: food, drink, dairy, pharmaceutical, agricultural, education, healthcare, research establishments and industry.

The pressure vessel is insurance approved.

Safety features include: protective outer safety cover, special safety handnut mechanism, which cracks the gasket seal allowing any residual pressure to safely escape. A thermal cooling lock, preventing the door from being opened until the contents have cooled to a safe temperature is also fitted. The unit also features a low water level sensor, that prevents boil-dry conditions and a safety blow down valve affords further protection.

The single vent outlet pipe can be directed to a nearby drain. For make safe processing the discharge should be directed to a sealed discharge system; the system should lead by direct connection to a building drain or catchment tank.

*where applicable to model chosen Connection V100

V150

Single phase 240V, 50Hz, 30-amp power supply or, if available a three phase 400V 50Hz 15A supply

Dry Steam reduced to 40psi. %" BSP.

630mm 22mm (%" BSP)

465mm

15mm (V" BSP)

70mm

15mm (V" BSP)

615mm

655x940x 1565mm

890mm 650mm 70mm 615mm

1655x940x 1805mm
